Document 584-1

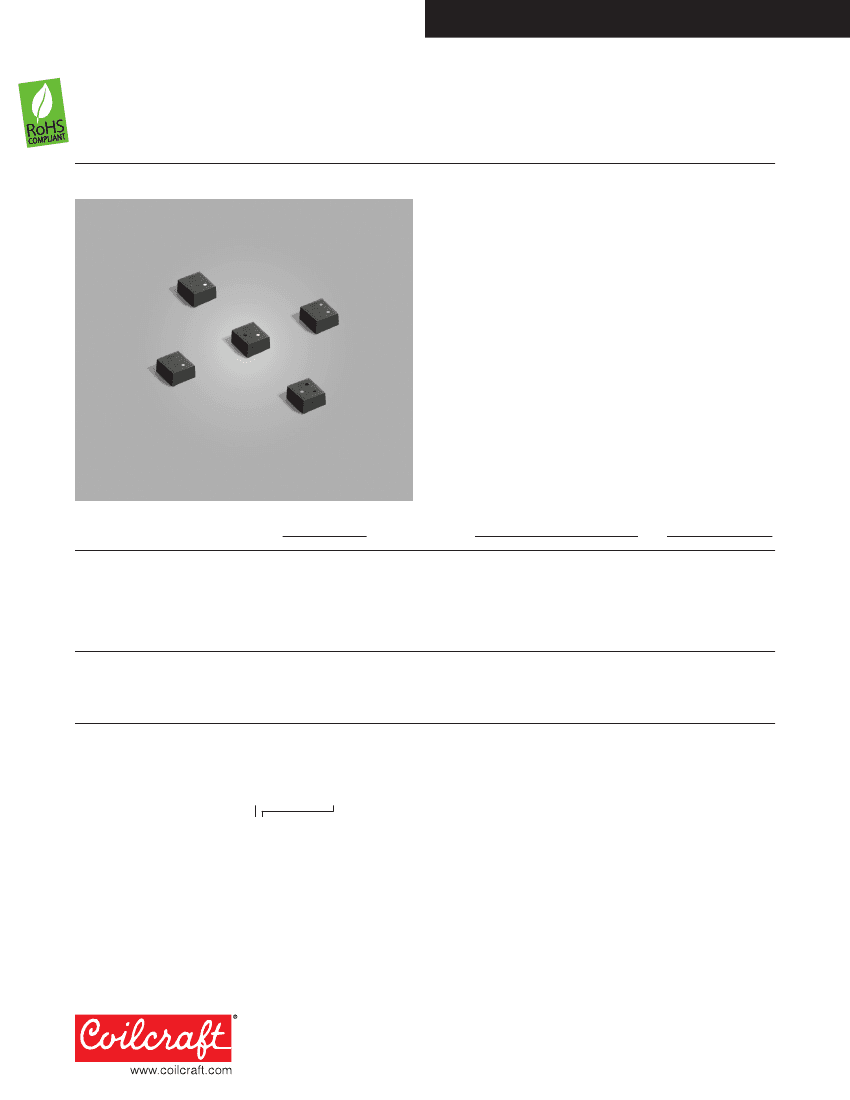

Shielded Power Inductors – EPL2010
• Smallest shielded power inductors; 2.0 × 2.0 × 1 mm high
• Extremely low DCR and very high SRF ratings
• Isat
ratings as high as 2.9 A
Designer’s Kit C412
contains 5 each of all values
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
Since August, 2008: RoHS compliant tin-silver-copper
over tin over nickel over silver-platinum. Prior to August, 2008: RoHS
compliant tin-silver-copper over gold over nickel over silver-platinum.
Weight
13 – 18 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
2000/7″ reel; 7500/13″ reel Plastic tape: 8 mm wide,
0.28 mm thick, 4 mm pocket spacing, 1.3 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Inductance
2
±20% (µH)
DCR (Ohms)
3
nom
max
SRF typ
4
(MHz)
Isat
(A)
5
10% drop 20% drop 30% drop
2.9
2.6
2.2
2.0
1.6
1.35
1.30
1.05
0.85
0.65
0.57
0.53
0.47
0.35
Irms
(A)
6
20°C rise 40°C rise
2.37
1.76
1.66
1.48
1.28
1.04
0.799
0.751
0.671
0.527
0.440
0.415
0.392
0.380
3.17
2.31
2.16
1.94
1.68
1.36
1.04
0.978
0.879
0.680
0.575
0.520
0.495
0.480
Part
number
1
EPL2010-181ML_
0.18
0.024
0.029
615
1.3
2.2
EPL2010-271ML_
0.27
0.032
0.038
412
1.2
2.1
EPL2010-301ML_
This part number has been changed to EPL2010-271. The EPL2010-301 is not available
EPL2010-421ML_
0.42
0.040
0.048
283
1.0
1.6
EPL2010-471ML_
This part number has been changed to EPL2010-421. The EPL2010-471 is not available
EPL2010-681ML_
0.68
0.058
0.070
214
0.80
1.3
EPL2010-821ML_
0.82
0.068
0.082
173
0.70
1.2
EPL2010-102ML_
1.0
0.099
0.119
145
0.65
1.0
EPL2010-152ML_
1.5
0.141
0.155
102
0.60
0.95
EPL2010-222ML_
2.2
0.202
0.222
80
0.43
0.78
EPL2010-332ML_
3.3
0.272
0.299
63
0.35
0.63
EPL2010-472ML_
4.7
0.429
0.472
50
0.30
0.47
EPL2010-682ML_
6.8
0.512
0.563
46
0.24
0.43
EPL2010-822ML_
8.2
0.827
0.910
42
0.22
0.40
EPL2010-103ML_
10
0.914
1.00
33
0.20
0.35
EPL2010-123ML_
12
0.939
1.12
32
0.15
0.26
1. When ordering, please specify
termination
and
packaging
codes:
EPL2010-103MLC
Termination: L
= RoHS compliant tin-silver-copper over tin over nickel
Special order, added cost:
S
= non-RoHS tin-lead
(63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (7500 parts per
full reel).
2.
3.
4.
5.
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
DCR measured on a micro-ohmmeter.
SRF measured using Agilent/HP 4395A network analyzer or equivalent.
DC current at which the inductance drops the specified amount from its
value without current.
6. Current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 584-1
Revised 12/28/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 584-2

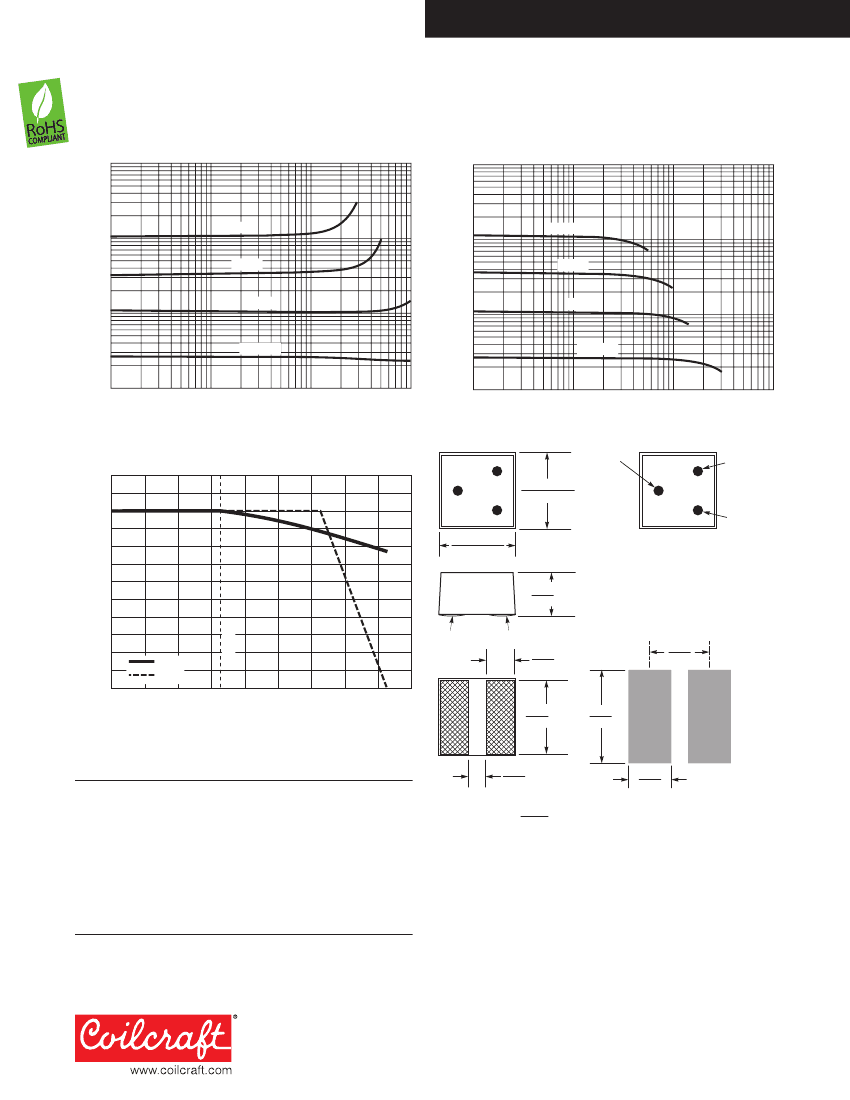

Shielded Power Inductors – EPL2010 Series
Typical L vs Frequency
100
100
Typical L vs Current
Inductance (µH)
10
3.3 µH
Inductance (µH)
10 µH
10 µH
10
3.3 µH
1
1.0 µH
1.0 µH
1
0.27 µH
0.27 µH
0.1
0.1
1
Frequency (MHz)
10
100
0.1
0.01
0.1
Current (A)
Multiplier
1
10
Current Derating
120
110
0.079 ±0.008
2,0 ±0,2
2nd
significant
digit
Percent of rated current
100
90
80
70
60
50
40
0.041
max
1,05
Start
Finish
0.030 max
0,75
0.079 ±0.008
2,0 ±0,2
Part Marking
1st
significant
digit
25°C
30
20
10
0
Isat
Irms
-40
-20
0
20
Recommended
Land Pattern
0.057
1,45
40
60
80
100
120 140
0.069
max
1,75
0.087
2,2
Ambient temperature (°C)
Part Marking
(Parts manufactured prior to Oct. 20, 2009 may not be marked.)
Part number
EPL2010-181
EPL2010-271
EPL2010-421
EPL2010-681
EPL2010-821
EPL2010-102
EPL2010-152
EPL2010-222
EPL2010-332
EPL2010-472
EPL2010-682
EPL2010-822
EPL2010-103
EPL2010-123
Value
0.18 µH
0.27 µH
0.42 µH
0.68 µH
0.82 µH
1.0 µH
1.5 µH
2.2 µH
3.3 µH
4.7 µH
6.8 µH
8.2 µH
10 µH
12 µH
1st digit
Brown
Red
Yellow
Blue
Gray
Brown
Brown
Red
Orange
Yellow
Blue
Gray
Brown
Brown
2nd digit
Gray
Violet
Red
Gray
Red
Black
Green
Red
Orange
Violet
Gray
Red
Black
Red
Multiplier
Brown
Brown
Brown
Brown
Brown
Red
Red
Red
Red
Red
Red
Red
Orange
Orange
0.014
min
0,35
0.041
1,04
Dimensions are in
inches
mm
Small surface blemishes are not unusual and do not adversely affect performance.
Wire may be visible inside the voids.
Acceptable void sizes:
Top: 0.01 in / 0,254 mm × 0.01 in / 0,254 mm
Sides: 0.02 in / 0,5 mm × 0.047 in / 1,2 mm
Note: All marked parts have three dots. Black dot, used only on -102 and -103 as
the second significant digit, may be very difficult to see.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 584-2
Revised 12/28/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
