D9B8A06

Description
Isolator, 17700MHz Min, 21200MHz Max
CategoryWireless rf/communication    Radio frequency and microwave
File Size239KB，1 Pages
ManufacturerTrak Microwave Corp.
Download Datasheet Parametric View All

D9B8A06 Overview

Isolator, 17700MHz Min, 21200MHz Max

D9B8A06 Parametric

Parameter NameAttribute value
MakerTrak Microwave Corp.
Reach Compliance Codeunknown
structureMODULE
Maximum input power (CW)36.99 dBm
Maximum insertion loss0.6 dB
Maximum operating frequency21200 MHz
Minimum operating frequency17700 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
RF/Microwave Device TypesISOLATOR

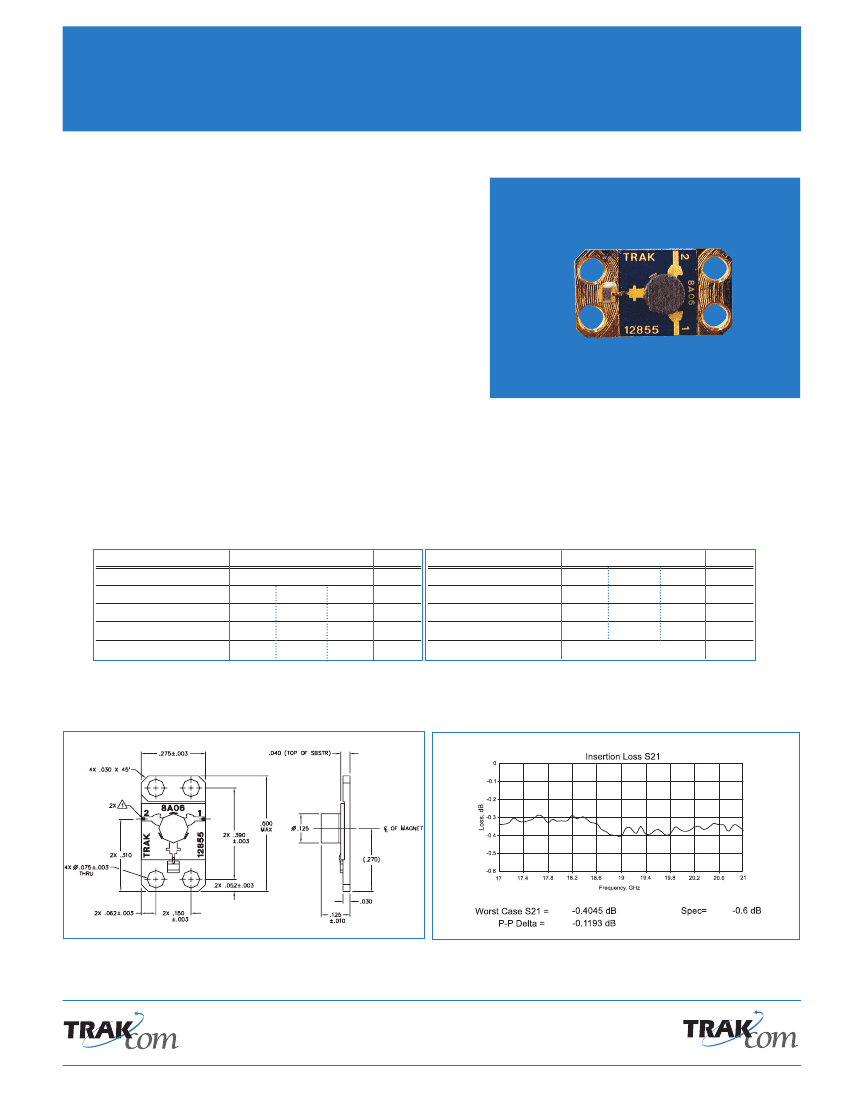

Preview

Download Datasheet
Model: D9B8A06
Application - SPACE
w
Satellite Communication
w
Amplifier Protection
w
Space Qualified
Isolator
Microstrip
Benefits
w
Better System Performance
w
Overall System Weight Reduction
w
K Band Frequency Coverage
w
Low Loss 0.6 dB Max
w
Epoxy Free Mounting
w
Light Weight
Features
Specifications
Parameter
Frequency
Isolation
Insertion Loss
Return Loss
Specification
17700 - 21200
Min Typ Max
18
-
-
-
-
0.6
18
-
-
Unit Parameter
MHz
Operating Temp.
dB Forward Power
dB Reverse Power
dB Interface
Specification
Min Typ Max
-10
-
+60
-
-
5
-
-
5
Microstrip
Unit
o
C
W
W
-
Drawing
Test Data
Typical Performance
TRAK Microwave Corporation
4726 Eisenhower Blvd., Tampa, Florida 33634-6391
Phone: 813-901-7200
w
Fax: 813-901-7492
E-mail: tmc@trak.com
w
www.trak.com
Specifications subject to change without notice
z1999
TRAK Communications, Inc. Doc #FL122ds599
