DATASHEET
ISL97671A
6-Channel SMBus/I
2
C or PWM Dimming LED Driver with Phase Shift Control
The
ISL97671A
is a 6-Channel 45V dual dimming capable LED
driver that can be used with either SMBus/I
2
C or PWM signal
for dimming control. The ISL97671A can drive six channels of
LEDs from an input of 4.5V~26.5V to an output of up to 45V. It
can also operate from an input as low as 3V to an output of up
to 26.5V in bootstrap configuration (refer to
Figure 38 on
page 26).
The ISL97671A features optional channel phase shift control
to minimize the input/output ripple characteristics, and load
transients to improve efficiency and eliminate audible noise.
The device can also be configured for Direct PWM Dimming
with a minimum dimming duty cycle of 0.007% at 200Hz.
The ISL97671A headroom control circuit monitors the highest
LED forward voltage string for output regulation, to minimize
the voltage headroom and power loss in a typical multi-string
operation.
The ISL97671A is offered in a compact and thermally efficient
20 Ld QFN 4mmx3mm package.
FN7709
Rev.4.00
Sep 14, 2017
Features
• 6 x 50mA channels
• 4.5V to 26.5V input with 45V maximum output
• 3V (see
Figure 38 on page 26)
to 21V input with 26.5V
maximum output
• PWM dimming with phase shift control
• SMBus/I
2
C controlled PWM or DC dimming
• Direct PWM dimming
• PWM dimming linearity
- PWM dimming with adjustable dimming frequency and
duty cycle linear from 0.4% to 100% <30kHz
- Direct PWM dimming duty cycle linear from 0.007% to
100% at 200Hz
• Current matching ±0.7%
• 600kHz/1.2MHz selectable switching frequency
• Dynamic headroom control
• Fault protection
- String open/short-circuit, OVP, OTP, and optional output
short-circuit fault protection
• 20 Ld 4mmx3mm QFN package
Related Literature
• For a full list of related documents, visit our website
-
ISL97671A
product page
Applications
• Tablet PC to notebook displays LED backlighting
• LCD monitor LED backlighting
• Field sequential RGB LED backlighting
Typical Application Circuits
VIN = 4.5~26.5V
Q1 (OPTIONAL)
ISL97671A
1 FAULT
2 VIN
4 VDC
LX 20
OVP 16
45V*, 6 x 50mA
VIN = 4.5~26.5V
Q1 (OPTIONAL)
ISL97671A
1 FAULT
2 VIN
4 VDC
LX 20
OVP 16
45V*, 6 x 50mA
VIN = 4.5~26.5V
Q1 (OPTIONAL)
ISL97671A
1 FAULT
2 VIN
4 VDC
8 FPWM
7 SMBCLK/SCL
6 SMBDAT/SDA CH0 10
CH1 11
5 PWM
CH2 12
3 EN
CH3 13
17 RSET
9 AGND
CH4 14
CH5 15
COMP 18
LX 20
OVP 16
PGND 19
45V*, 6 x 50mA
PGND 19
7 SMBCLK/SCL
6 SMBDAT/SDA CH0 10
CH1 11
5 PWM
CH2 12
3 EN
CH3 13
17 RSET
8 FPWM
9 AGND
CH4 14
CH5 15
COMP 18
*VIN > 12V
PGND 19
7 SMBCLK/SCL
6 SMBDAT/SDA CH0 10
CH1 11
5 PWM
CH2 12
3 EN
CH3 13
17 RSET
8 FPWM
9 AGND
CH4 14
CH5 15
COMP 18
*VIN > 12V
*VIN > 12V

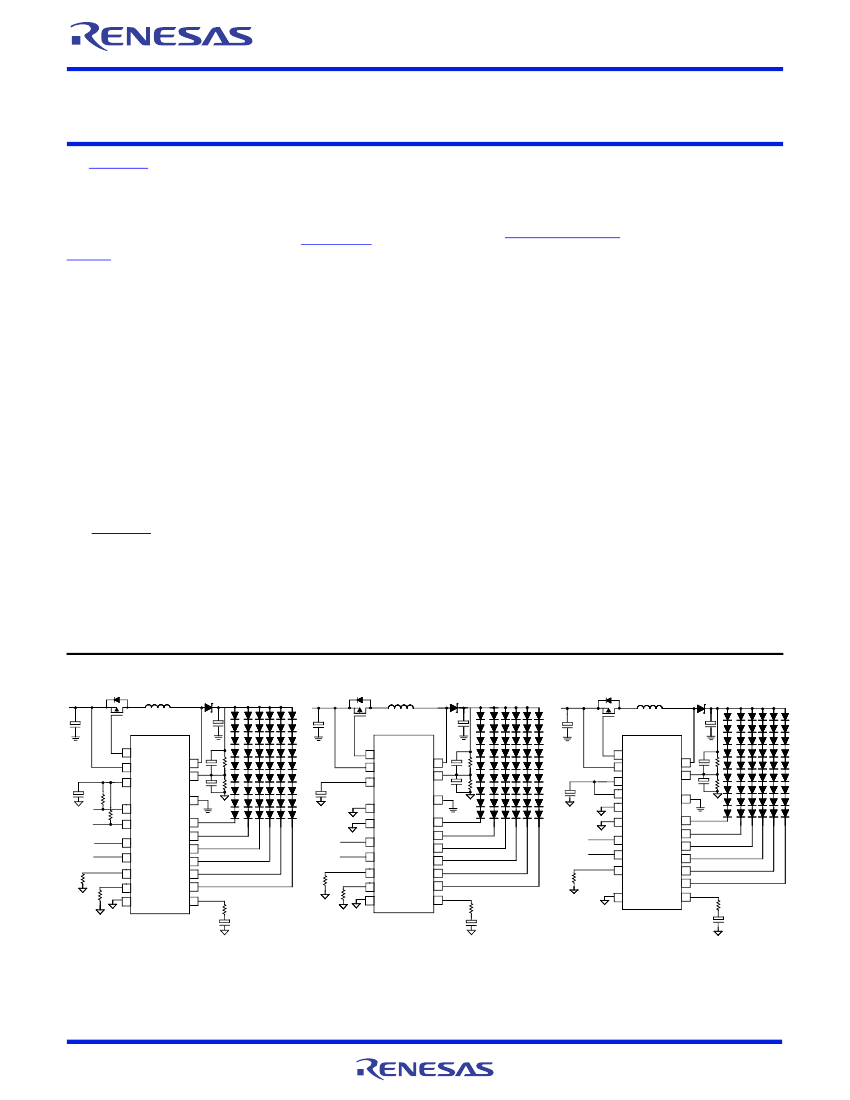

FIGURE 1A. SMBus/I
2
C CONTROLLED
DIMMING AND ADJUSTABLE
DIMMING FREQUENCY
FIGURE 1B. PWM DIMMING WITH PWM INPUT
AND ADJUSTABLE DIMMING
FREQUENCY
FIGURE 1. ISL97671A TYPICAL APPLICATION DIAGRAMS
FIGURE 1C. DIRECT PWM DIMMING
FN7709 Rev.4.00
Sep 14, 2017
Page 1 of 28
ISL97671A
Table of Contents
Typical Application Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pin Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pin Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Thermal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Typical Performance Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Theory of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PWM Boost Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current Matching and Current Accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dynamic Headroom Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PWM Dimming Frequency Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phase Shift Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5V Low Dropout Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IC Protection Features and Fault Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SMBus/I
2
C Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Write Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Read Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slave Device Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SMBus/I
2
C Register Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PWM Brightness Control Register (0x00) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Control Register (0x01) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fault/Status Register (0x02) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification Register (0x03) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DC Brightness Control Register (0x07) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration Register (0x08) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Channel Mask/Fault Readout Register (0x09) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phase Shift Control Register (0x0A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Component Selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input Capacitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inductor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Ripple . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Schottky Diode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High-Current Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low Voltage Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16-Bit Dimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Field Sequential RGB LED Backlighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
11
11
11
11
12
12
13
13
13
18
18
18
18
18
20
20
21
22
22
23
23
24
24
24
24
25
25
25
25
25
25
26
26
Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
About Intersil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Package Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
FN7709 Rev.4.00
Sep 14, 2017
Page 2 of 28
ISL97671A
Block Diagram
V
IN
= 4.5V TO 26.5V
45V*, 6 x 50mA
V
IN
EN
FAULT
ISL97671A
LX
VDC
REG
OSC AND
RAMP
COMP
FAULT/STATUS
REGISTER
OVP
OVP
=0
IMAX ILIMIT
LOGIC
FET
DRIVER
FPWM
LED PWM
CONTROL
PGND
COMP
CH0
GM
AMP
REFERENCE
GENERATOR
HIGHEST VF
STRING
DETECT
+
-
OC, SC
DETECT
OC, SC
DETECT
FAULT/STATUS
REGISTER
TEMP
SENSOR
SMBUS/I
2
C
INTERFACE
AND PWM
CONTROL
LOGIC
REGISTERS
PWM BRIGHTNESS CONTROL
DEVICE CONTROL
FAULT/STATUS
IDENTIFICATION
DC BRIGHTNESS CONTROL
CONFIGURATION
+
-
PWM/OC/SC
DC
FAULT/STATUS
REGISTER
CH5
*V
IN
> 12V
RSET
AGND
+
-
SMBCLK/SCL
SMBDAT/SDA
PWM

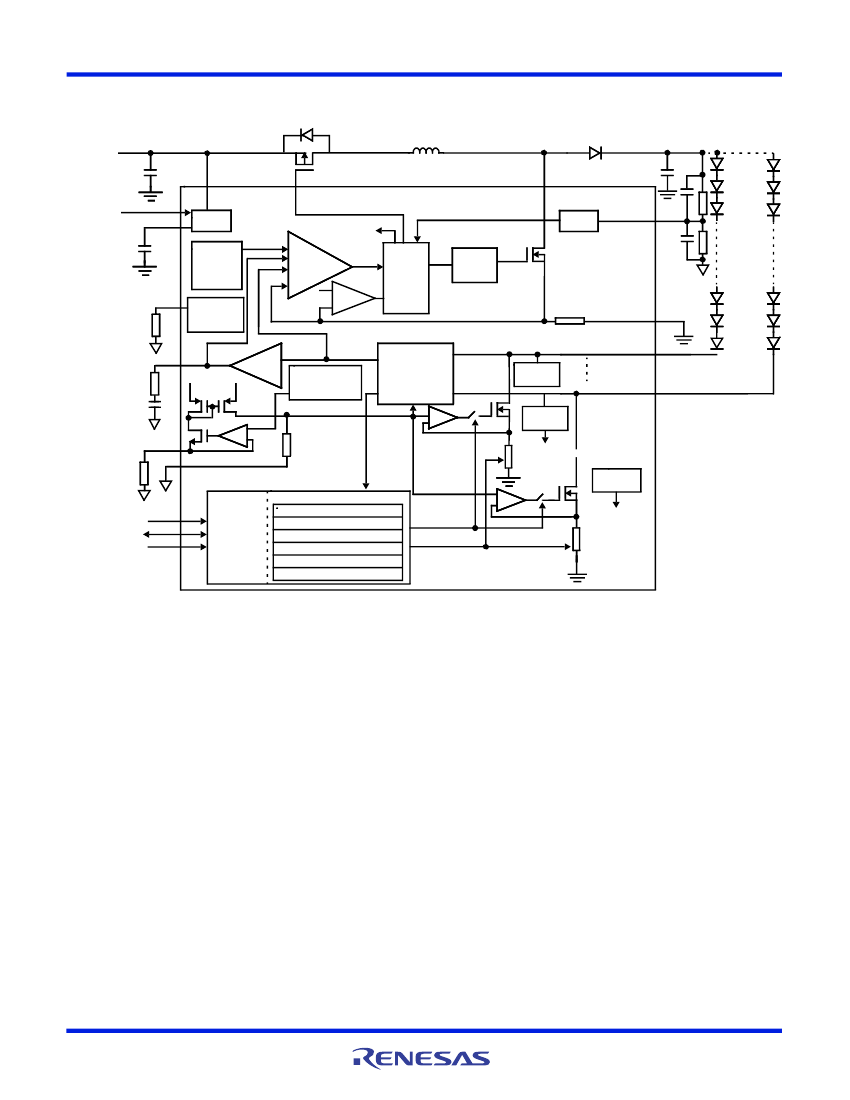

FIGURE 2. ISL97671A BLOCK DIAGRAM
