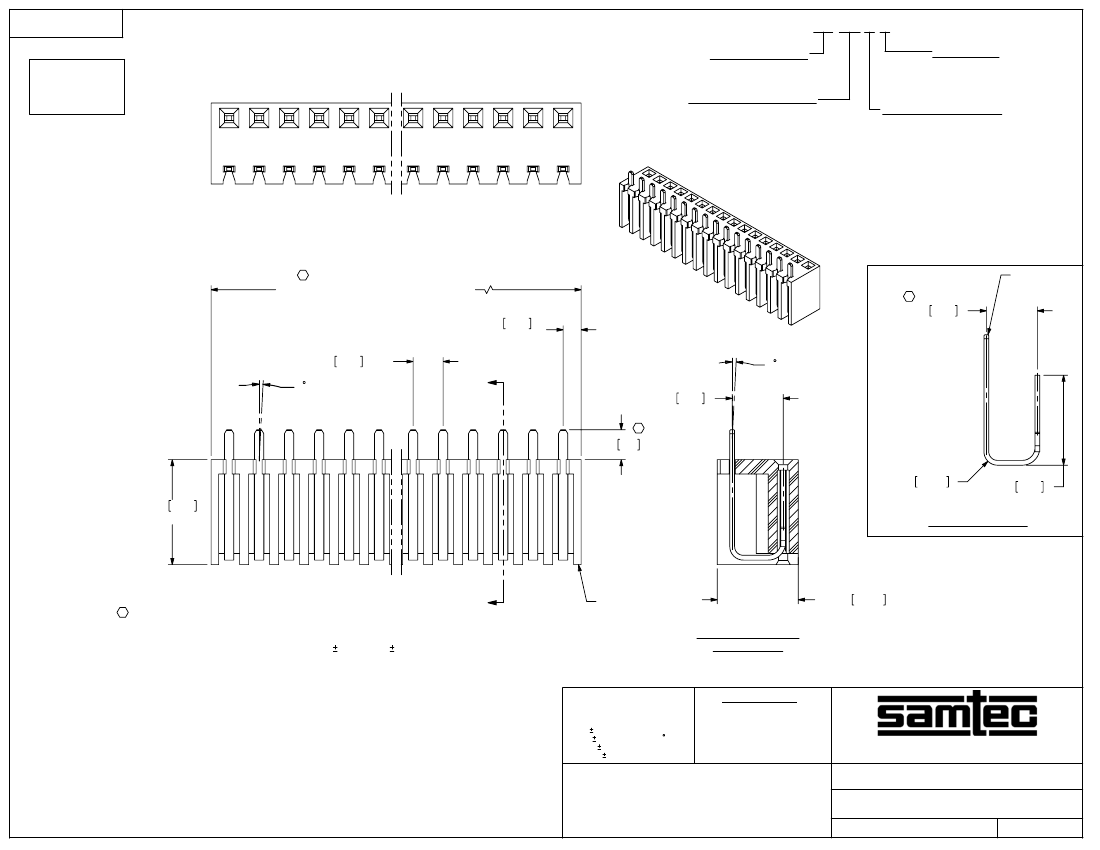

REVISION J
DO NOT
SCALE FROM
THIS PRINT
BSW-1XX-XX-X-E
POS SPECIFICATION
-02 THRU -36
CONTACT SPECIFICATION
-04: C-8-5-X
(STANDARD I/W FORCES)
-24: C-17-5-X
(LOW I/W FORCES)
ROW OPTION
-E: EXTENDED SINGLE ROW
01
50
PLATING SPECIFICATION
-G: 20µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-T: MATTE TIN CONTACT AND TAIL
(CONTACT -04 ONLY)
-S: 30µ" SELECTIVE GOLD IN CONTACT,
MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT,
3µ" GOLD ON TAIL
(CONTACT -04 ONLY)
-L: 10µ" SELECTIVE GOLD IN CONTACT,
MATTE TIN ON TAIL
C
(( No OF POS x .10 [2.5] ) + .02 [0.5] )
.060 1.52
(SEE NOTE 4)
.100 2.54 REF
2 MAX SWAY
(EITHER DIRECTION)
3 MAX SWAY
(EITHER DIRECTION)
.170 4.32
C
C
C-08-5-X or
C-17-5-X
** .170 4.32
"A"
.10 2.5
R.045 1.143
.350 8.89
REF
.300 7.62
CONTACT **
** MUST VERIFY THIS DIMENSION AT BEGINNING,
MIDDLE AND END OF EACH LOT.
NOTES:
1.
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 3 LB
3. MAXIMUM ALLOWABLE BOW: .003 [.07] INCH/INCH AFTER ASSEMBLY.
4. "END WALLS" AFTER CUTTING MUST BE .023 .005 [.58 .12]
C
"A"
BSW-36-E
.2700 6.858 REF
SECTION "A"-"A"
SCALE 3 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.X:
.1 [2.54]
.XX: .01 [.3]
3
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
INSULATOR: PET 30% GLASS FILLED, COLOR: BLACK
CONTACT: PHOSPHOR BRONZE
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
SPECIAL BOTTOM MOUNT ASSEMBLY
BSW-1XX-XX-X-E
F:\DWG\MISC\Mktg\BSW-1XX-XX-X-E-MKT.SLDDRW
BY:
G REIDINGER 04/21/1993
SHEET
1
OF
1
