BK/C520-3AS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/C520-3AS

BK/C520-3AS: DescriptionFAST BLOW ELECTRIC FUSE, 3A, 250VAC, 100A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size111KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/C520-3AS Overview

FAST BLOW ELECTRIC FUSE, 3A, 250VAC, 100A (IR), INLINE/HOLDER

BK/C520-3AS Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
Fusing characteristics	FAST
body height	15 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	6 J
Manufacturer's serial number	C520
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	5.2mm x 15mm
Rated breaking capacity	100 A
Rated current	3 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP

Preview

Download Datasheet

View All

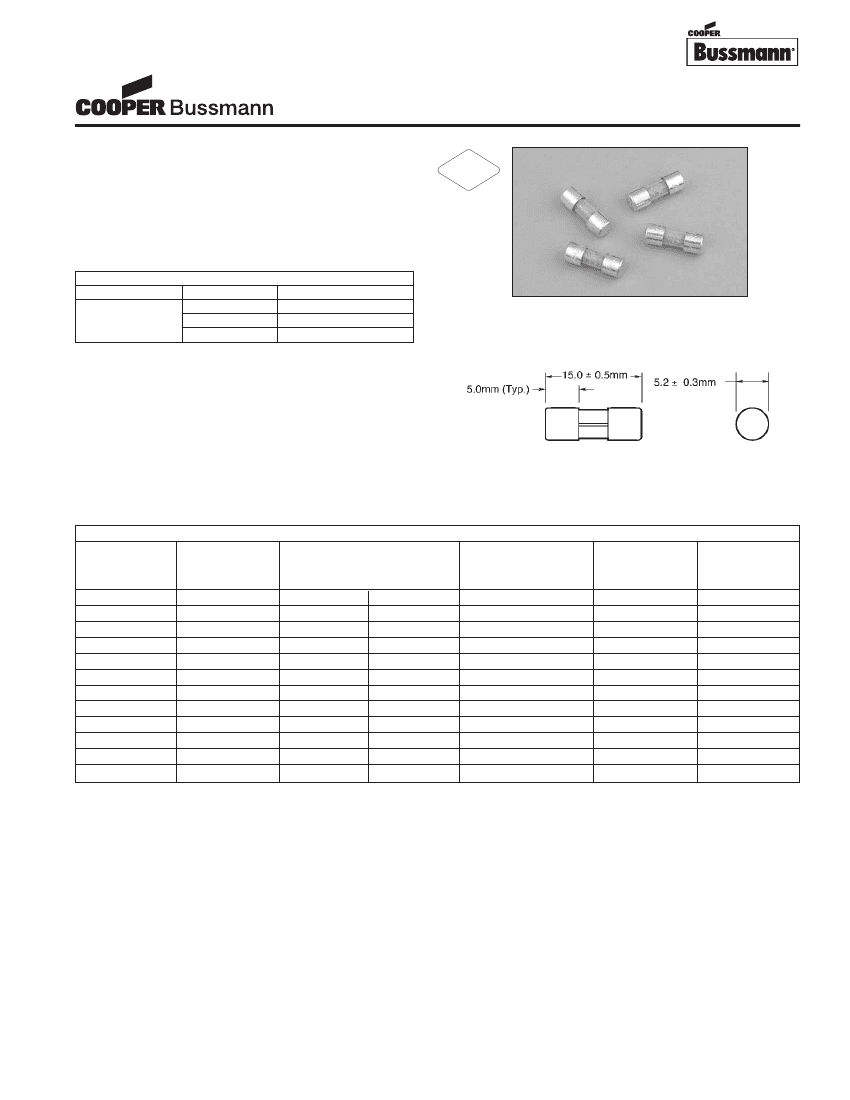

5mm x 15mm Fuses

C520 Series, Fast Acting, Glass Tube

Description

• Fast acting

• 5mm x 15mm physical size

• Glass tube, nickel-plated brass endcap construction

• Optional sleeve is flexible flouropolymer

(U.L. flammability rating VW-1).

• UL Listed product meets standard UL 248-14

ELECTRICAL CHARACTERISTICS

Rated Current

Amp Rating

Opening Time

100%

None

100mA - 5A

135%

1 hours max.

200%

2 seconds max.

RoHS

2002/95/EC

Dimensions

Drawing Not to Scale

Agency Information

• UL Listed Card: Guide JDYX, File E19180

• CSA Certification Card: Class 1422-01, LR65063

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. C520-3-R)

SPECIFICATIONS

Product Code

C520-100mA

C520-125mA

C520-250mA

C520-375mA

C520-500mA

C520-750mA

C520-2A

C520-2.5A

C520-3A

C520-3.5A

C520-4A

C520-5A

Voltage

Rating

250V

Interrupting Rating

at Rated Voltage

250VAC

125VAC

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

200A

10,000A

200A

10,000A

Typical DC Cold

Resistance*

(ohms)

0.245

0.166

0.638

0.284

0.186

0.101

0.071

0.054

0.043

0.031

0.024

0.019

Maximum

Melting I

t†

0.0010

0.0022

0.016

0.053

0.13

0.37

2.3

4.1

6.8

11.0

13.0

Typical

Voltage

Drop (mV)‡

3100

2800

2200

1500

1300

1000

190

180

160

140

130

* DC Cold Resistance (Measured at <10% of rated current)

† Maximum Melting I

t (A

Sec) (maximum I

t at 10 times rated current)

‡ Maximum Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)
