800122MA Overview

0.8 mm PITCH DUAL ROW PIN HEADER SMD TYPE

Preview

Download Datasheet

View All

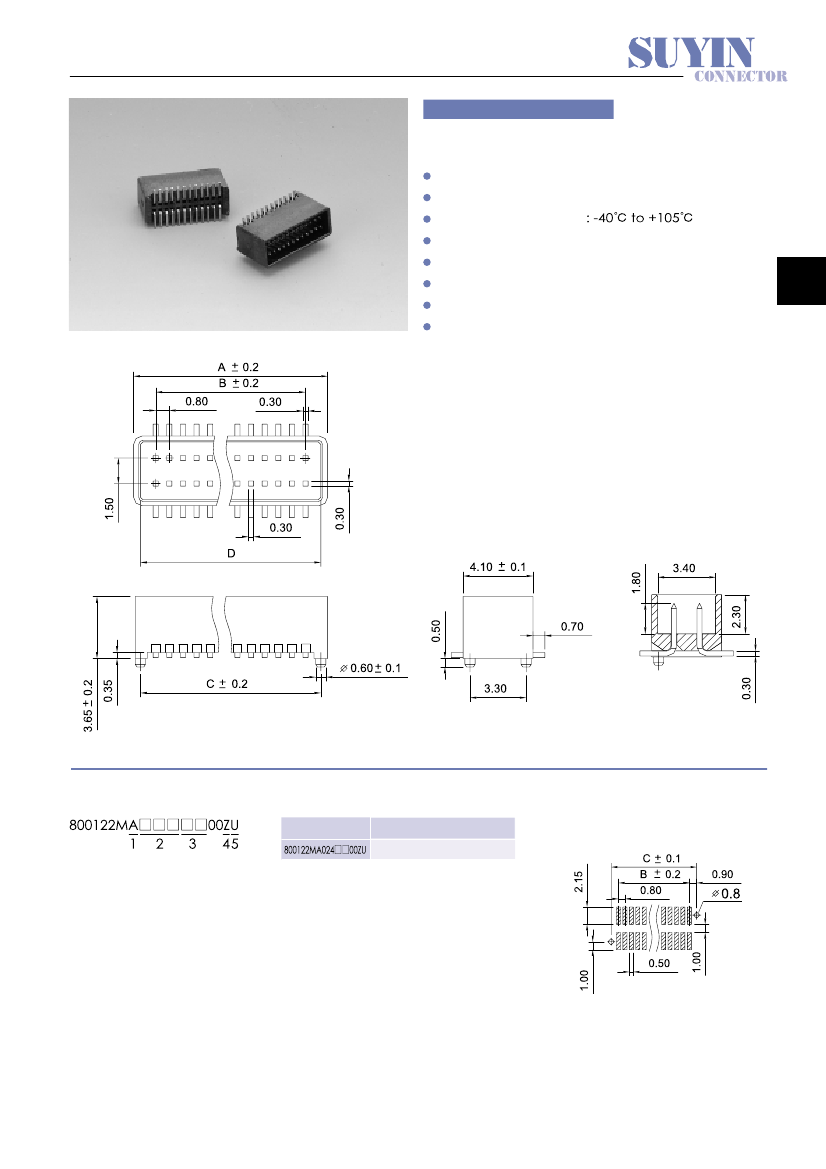

0.8 mm PITCH DUAL ROW PIN HEADER SMD TYPE

800122MA Series

Mates with SUYIN 800123FA Series

Specifications:

06~40Circuits

Insulator Material

Operating Temp. Range

Terminal Material

Plating

Max. Current Rating

Voltage Rating

Dielectric Strength

: Phosphor Bronze

: Gold Plated

: 0.5 A

: 100V AC

: 500V (Min. 60 seconds)

0.8

: Black High Temp. Plastic

Order Information

Dimensional Information

SUYIN P/NO.

DIM.A

11.4

DIM.B

10.6

DIM.C

8.8

DIM.D

10.6

Recommended P.C.B. Layout

1. 'A' : Straight SMT Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

Reference Page 11
