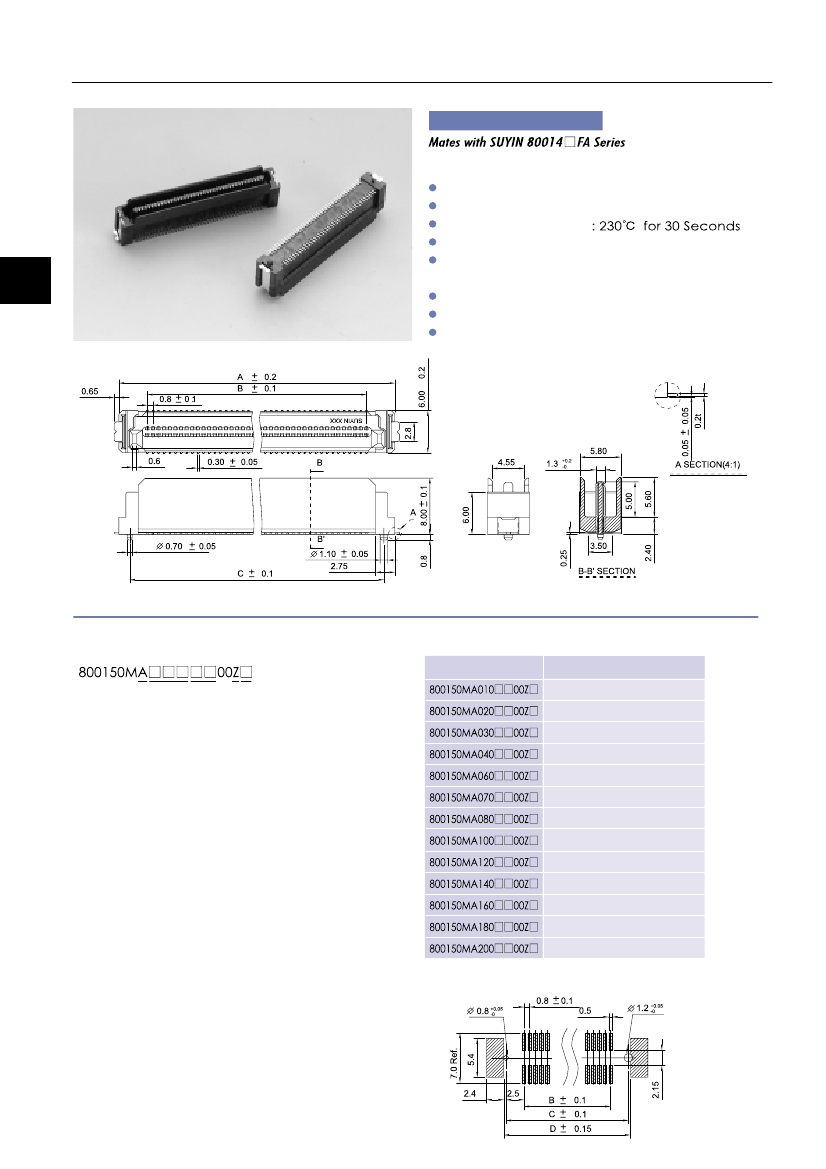

0.8 mm PITCH SURFACE MOUNT PLUG TYPE
(PLASTIC HEIGHT:8.0mm)
800150MA Series
Specifications:
10~200 Circuits
Insulator Material
Max Processing Temp
Terminal Material
Plating
0.8
mm
: Black High Temp. Plastic
: Phosphor Bronze
: Selective Plated (Gold/Tin)
Latch - Tin Plated
: 0.5 A
: 100V AC
: 500V (Min. 60 seconds)
Max. Current Rating
Voltage Rating
Dielectric Strength
Order Information
1
2
3
45
Dimensional Information
SUYIN P/NO.
DIM.A
11.3
15.3
19.3
DIM.B
3.2
7.2
11.2
15.2
23.2
27.2
31.2
39.2
47.2
55.2
63.2
71.2
79.2
DIM.C
8.2
12.2
16.2
20.2
28.2
32.2
36.2
44.2
52.2
60.2
68.2
76.2
84.2
DIM.D
8.8
12.8
16.8
20.8
28.8
32.8
36.8
44.8
52.8
60.8
68.8
76.8
84.8
1. 'A' : Straight SMT Type
2. No. of Pins
3. Plating
4. Color 'Z' : Black
5. Package
'U' : Tube Package Without CAP
'R' : Reel Package With CAP
'T' : Tube Package With CAP
Reference Page 11
23.3
31.3
35.3
39.3
47.3
55.3
63.3
71.3
79.3
87.3
Recommended P.C.B. Layout
26
