CYM74P431BPM-50C: DescriptionCache SRAM Module, 128KX32, 13.5ns, CMOS; Categorystorage storage; File Size260KB，7 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CYM74P431BPM-50C Overview

Cache SRAM Module, 128KX32, 13.5ns, CMOS

CYM74P431BPM-50C Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
package instruction	DIMM, DIMM160
Reach Compliance Code	compliant
ECCN code	3A991.B.2.A
Maximum access time	13.5 ns
I/O type	COMMON
JESD-30 code	R-XSMA-N160
memory density	4194304 bit
Memory IC Type	CACHE SRAM MODULE
memory width	32
Number of functions	1
Number of terminals	160
word count	131072 words
character code	128000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM160
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
power supply	3.3,5 V
Certification status	Not Qualified
Minimum standby current	4.75 V
Maximum slew rate	1.4 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

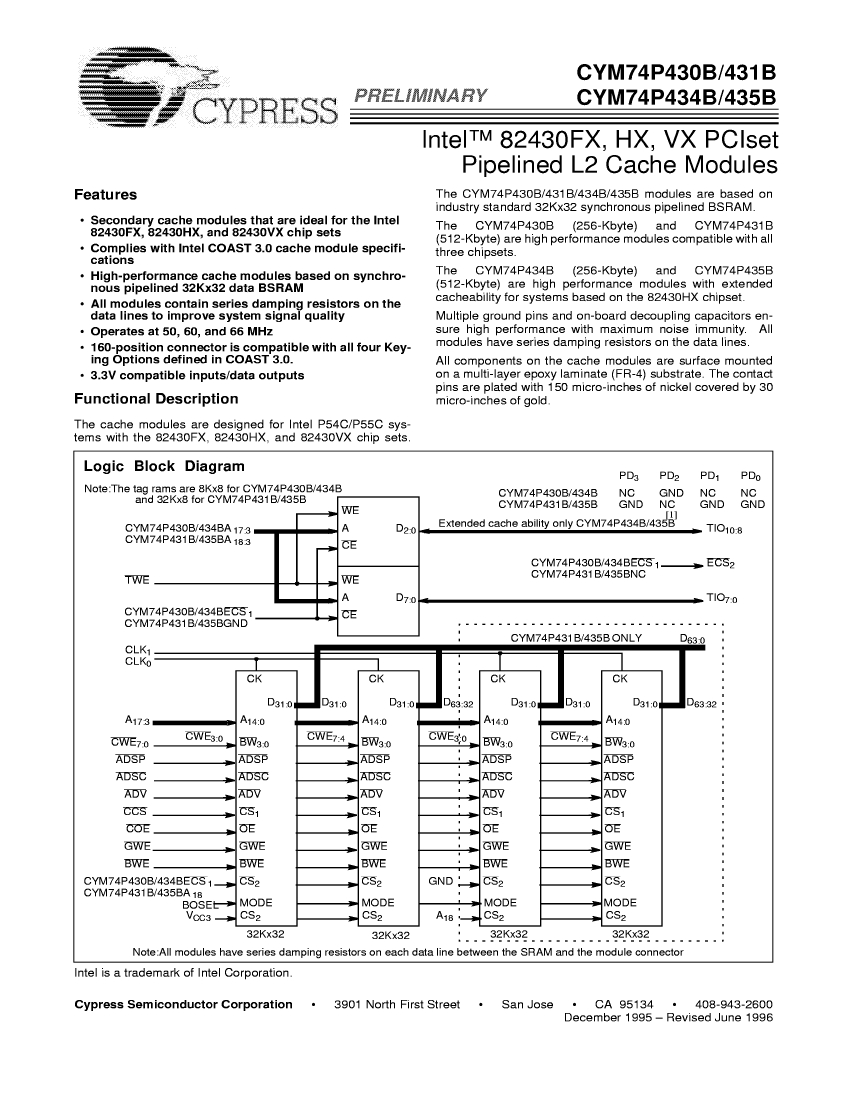

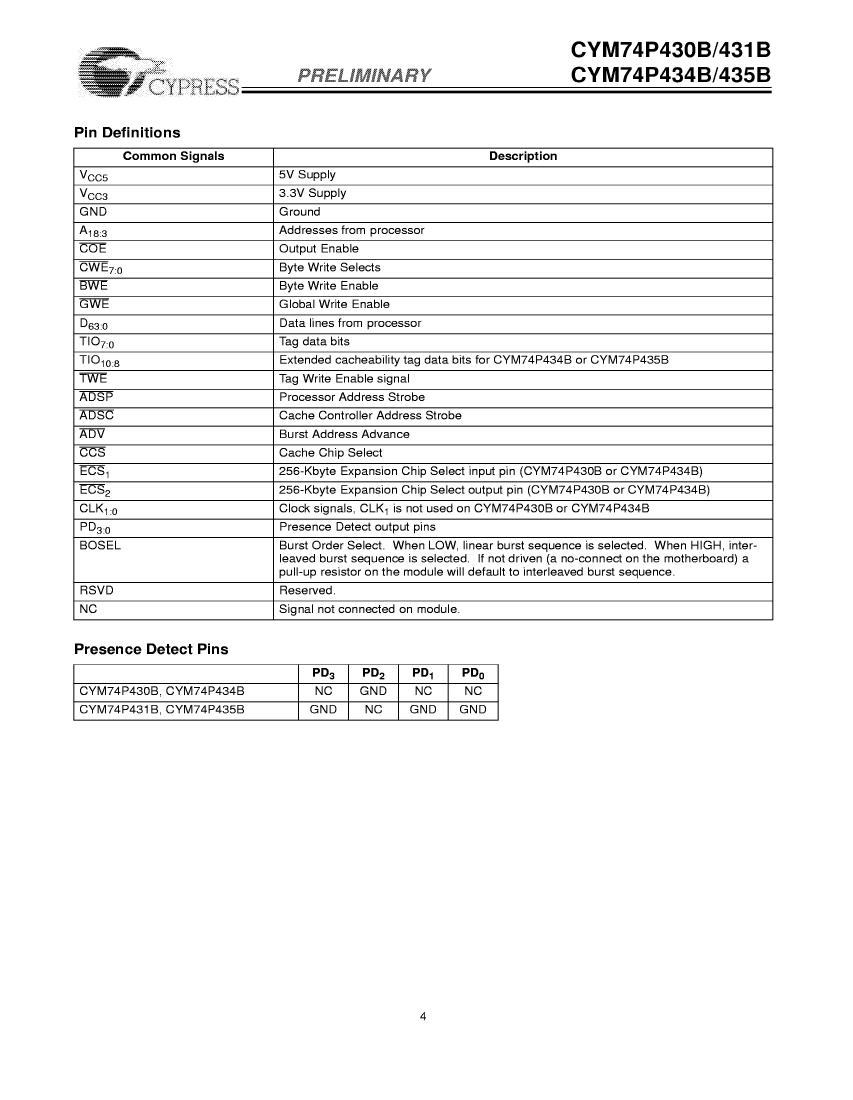

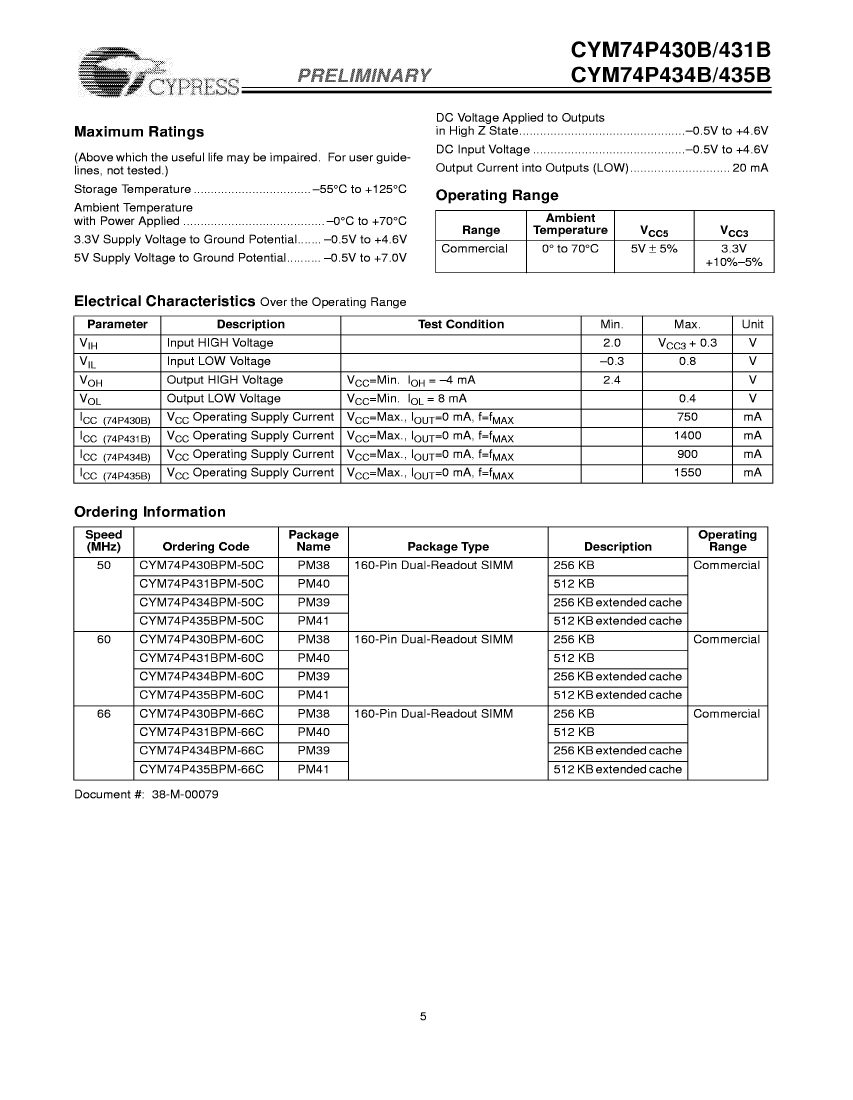

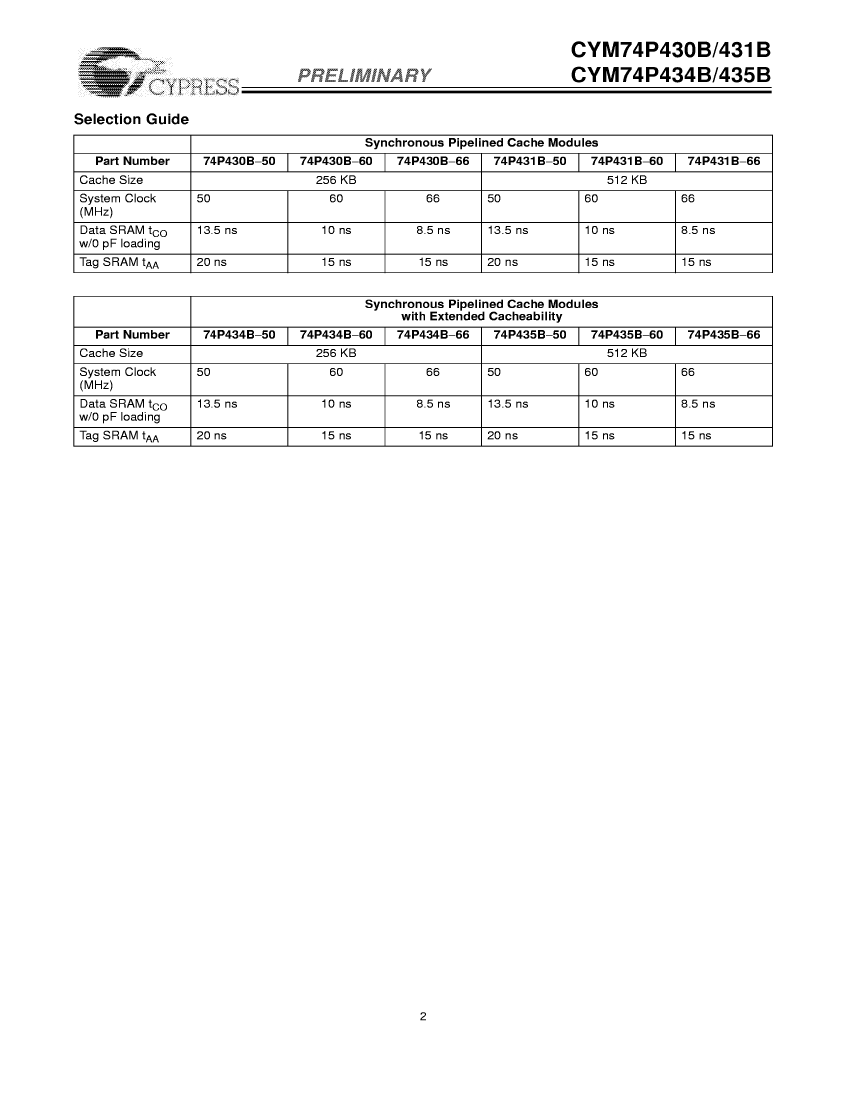

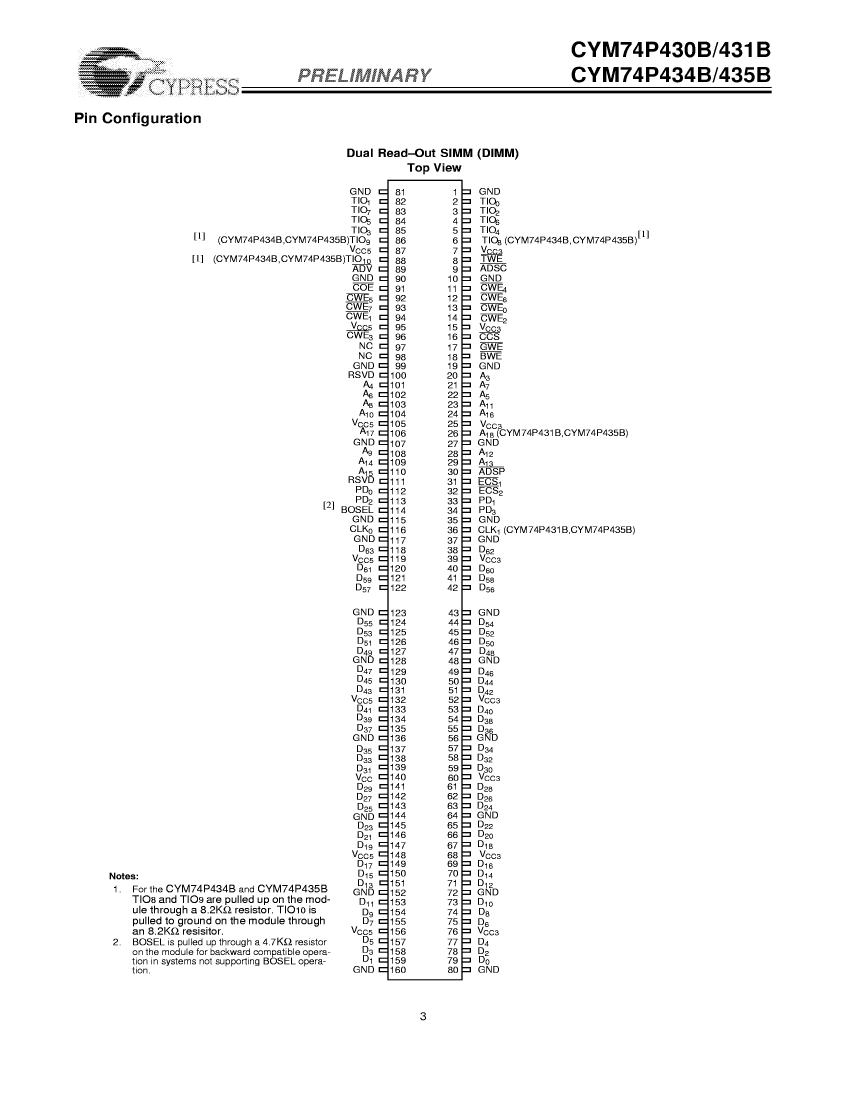

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CYM74P431BPM-50C Related Products

	CYM74P431BPM-50C	CYM74P430BPM-60C	CYM74P430BPM-50C	CYM74P435BPM-66C	CYM74P434BPM-66C	CYM74P435BPM-60C	CYM74P434BPM-50C	CYM74P434BPM-60C
Description	Cache SRAM Module, 128KX32, 13.5ns, CMOS	Cache SRAM Module, 64KX32, 10ns, CMOS	Cache SRAM Module, 64KX32, 13.5ns, CMOS	Cache SRAM Module, 128KX32, 8.5ns, CMOS	Cache SRAM Module, 64KX32, 8.5ns, CMOS	Cache SRAM Module, 128KX32, 10ns, CMOS	Cache SRAM Module, 64KX32, 13.5ns, CMOS	Cache SRAM Module, 64KX32, 10ns, CMOS
package instruction	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160	DIMM, DIMM160
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	compliant	compliant	compliant
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	13.5 ns	10 ns	13.5 ns	8.5 ns	8.5 ns	10 ns	13.5 ns	10 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N160	R-XSMA-N160	R-XSMA-N160	R-XSMA-N160	R-XSMA-N160	R-XSMA-N160	R-XSMA-N160	R-XSMA-N160
memory density	4194304 bit	2097152 bit	2097152 bit	4194304 bit	2097152 bit	4194304 bit	2097152 bit	2097152 bit
Memory IC Type	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	160	160	160	160	160	160	160	160
word count	131072 words	65536 words	65536 words	131072 words	65536 words	131072 words	65536 words	65536 words
character code	128000	64000	64000	128000	64000	128000	64000	64000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX32	64KX32	64KX32	128KX32	64KX32	128KX32	64KX32	64KX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM160	DIMM160	DIMM160	DIMM160	DIMM160	DIMM160	DIMM160	DIMM160
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	3.3,5 V	3.3,5 V	3.3,5 V	3.3,5 V	3.3,5 V	3.3,5 V	3.3,5 V	3.3,5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	4.75 V	3.14 V	3.14 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Maximum slew rate	1.4 mA	0.75 mA	0.75 mA	1.55 mA	0.9 mA	1.55 mA	0.9 mA	0.9 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Cypress Semiconductor	Cypress Semiconductor	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
