MVH22V2AD3.000MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> MVH22V2AD3.000MHZ

Preview

MVH22V2AD3.000MHZ: DescriptionOscillator, 3MHz Min, 50MHz Max, 3MHz Nom; CategoryPassive components oscillator; File Size52KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MVH22V2AD3.000MHZ Overview

Oscillator, 3MHz Min, 50MHz Max, 3MHz Nom

MVH22V2AD3.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
package instruction	DIP4/8,.3
Reach Compliance Code	unknown
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	50 MHz
Minimum operating frequency	3 MHz
Nominal operating frequency	3 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Encapsulate equivalent code	DIP4/8,.3
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

MVH Series

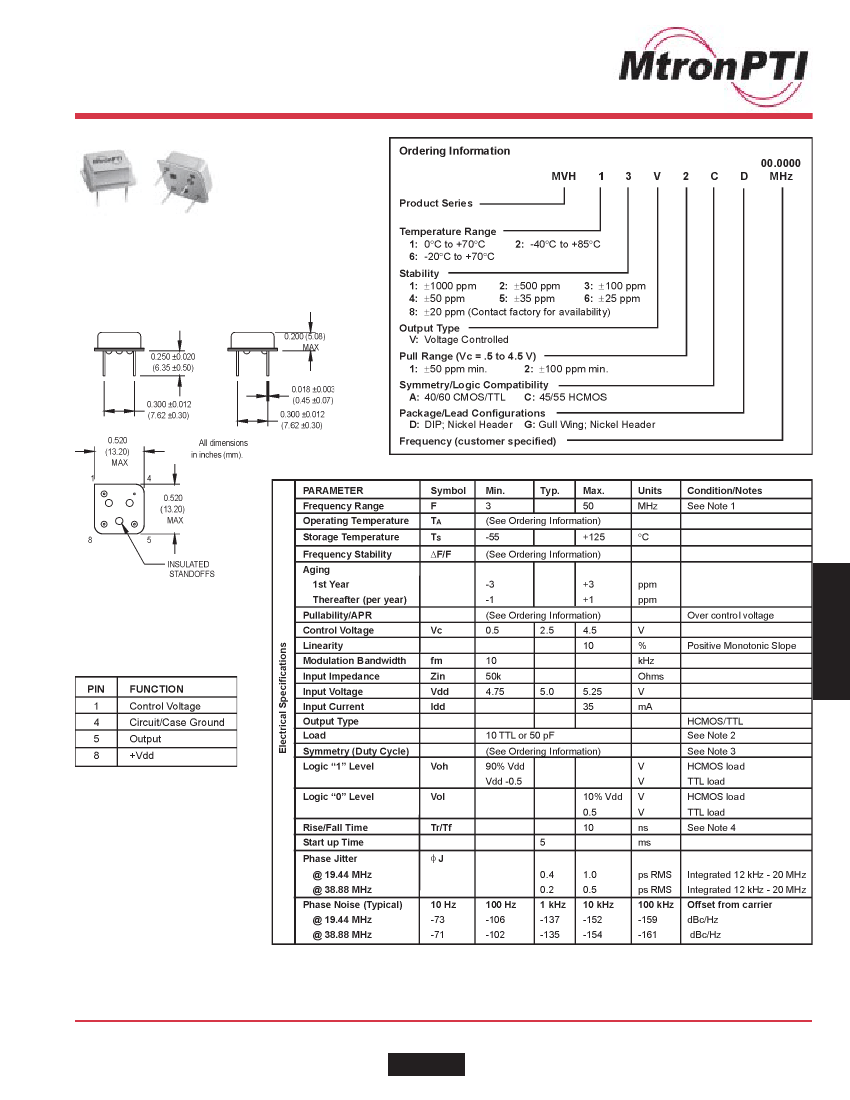

8 DIP, 5.0 Volt, HCMOS/TTL, VCXO

•

General purpose VCXO

for Phase Lock Loops

(PLL), Clock Recovery,

Reference Signal Track-

ing and Synthesizers

•

Frequencies up to 50 MHz

and tri-state option

Pin Connections

V

C

X

O

1.

2.

3.

4.

Higher frequencies available. Contact factory.

TTL load - see load circuit diagram #1 on page 116. HCMOS load - see load circuit diagram #2 on page 116.

Symmetry is measured at 1.4 V with TTL load, and at 50% with HCMOS load.

Rise/Fall times are measured between 0.5 V and 2.4 V for TTL load, and between 10% Vdd and 90% Vdd for HCMOS load.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
