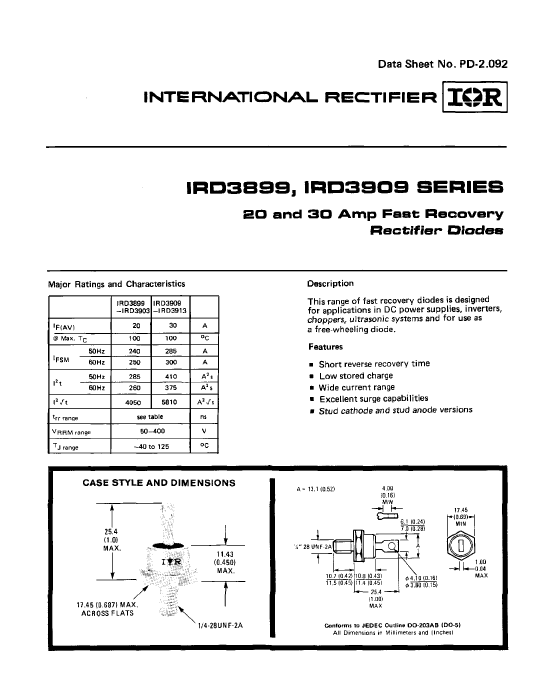

IRD3901PBF Overview

Rectifier Diode, 1 Phase, 1 Element, 20A, 200V V(RRM), Silicon, DO-203AB,

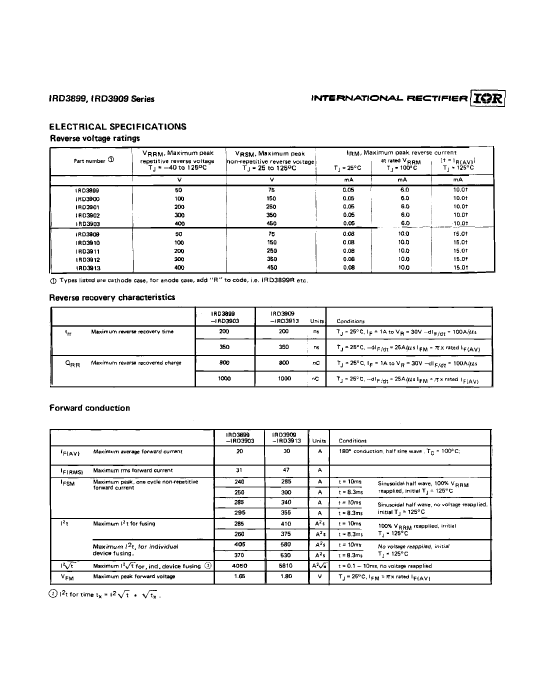

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	O-MUPM-D1
Reach Compliance Code	compliant
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

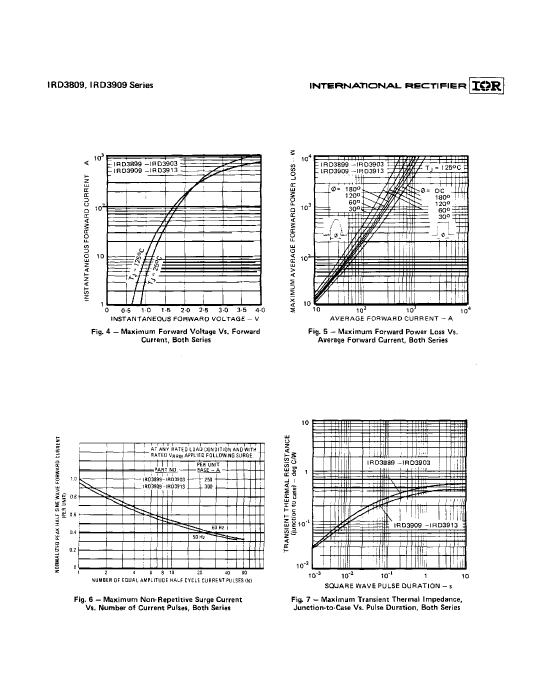

Maximum forward voltage (VF)	1.65 V
JEDEC-95 code	DO-203AB
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	250 A
Number of components	1
Phase	1
Number of terminals	1

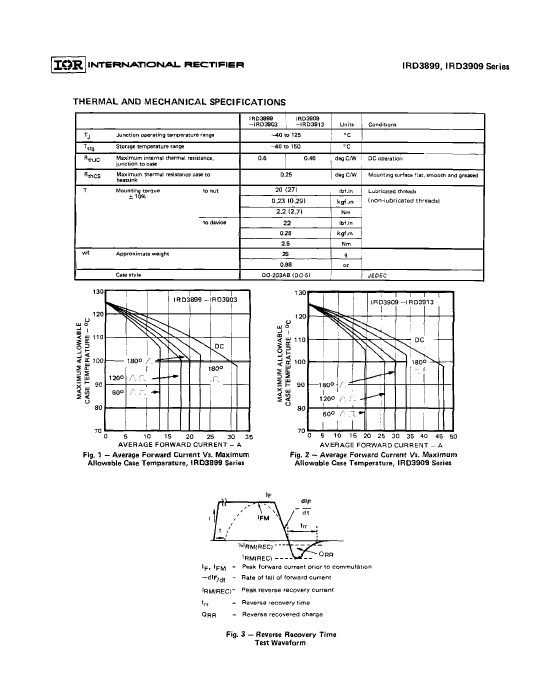

Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	20 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.35 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	40
