NTH/NTT Series, Type H
Crystal Clock Oscillator
3.3 & 5V, HCMOS, TTL, SMD
Product Description
A crystal controlled, 3.3 or 5 volt, low current
oscillator designed to drive low power, high
performance microprocessors. The plastic-molded
surface mountable package is ideal for today’s
automated assembly environments. J-leads are
compatible with EIA standard footprints. The
HCMOS device is capable of driving both CMOS
and TTL loads.
Frequency Range:
• 1 MHz to 70 MHz
Temperature Range:
• Operating: 0 to +70°C or -40 to +85°C
• Storage: –55 to +125°C
Frequency Stability Tolerance:
±50 or ±100 ppm over all conditions: calibration tolerance,
operating temperature, input voltage change, load change, aging,
shock and vibration.
Product Features
• Footprint compatible and direct replacement for
SG615 series
• Frequency range from 1 to 70 MHz
• 3.3V and 5V operations
• Tri-State output standard
• EIA standard SO-J-20 foot-print
• Compact, plastic-molded SMD
• Available on tape & reel; 24mm tape, 1000pcs
reel
Supply Voltage:
Recommended Operating: 5V ±10% or 3.3V ±10% (HCMOS only)
Supply Current:
1 MHz to 26 MHz
26+ MHz to 50 MHz
50+ MHz to 70 MHz
5V, 10TTL/30pF 5V, 50pF
15mA max
30mA max
45mA max
35mA max
45mA max
3.3V, 30pF
15mA max
25mA max
25mA max
Typical Applications
• Low voltage CMOS, HCMOS and TTL compatible
• Ideally suited for use with contemporary MPUs and
custom ASICs
• Perfect for PCs, laptop, portable applications; disk
drives – anywhere small size, low power and surface
mountability are a priority
Mechanical:
• Shock: MIL-STD-883, Method 2002, Condition B
• Solderability: MIL-STD-883, Method 2003
• Terminal Strength: MIL-STD-883, Method 2004,
Condition B2
• Vibration: MIL-STD-883, Method 2007, Condition A
• Solvent Resistance: MIL-STD-202, Method 215
• Resistance to Soldering Heat: MIL-STD-202, Method 210,
Condition I or J
Environmental:
• Thermal Shock: MIL-STD-883, Method 1011, Condition A
• Moisture Resistance: MIL-STD-883, Method 1004
Reflow Temperature:
240°C Max
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
1
All specifications are subject to change without notice.
DS-111 Rev L | 11/02/2006
NTH/NTT Series, Type H
Crystal Clock Oscillator
3.3 & 5V, HCMOS, TTL, SMD

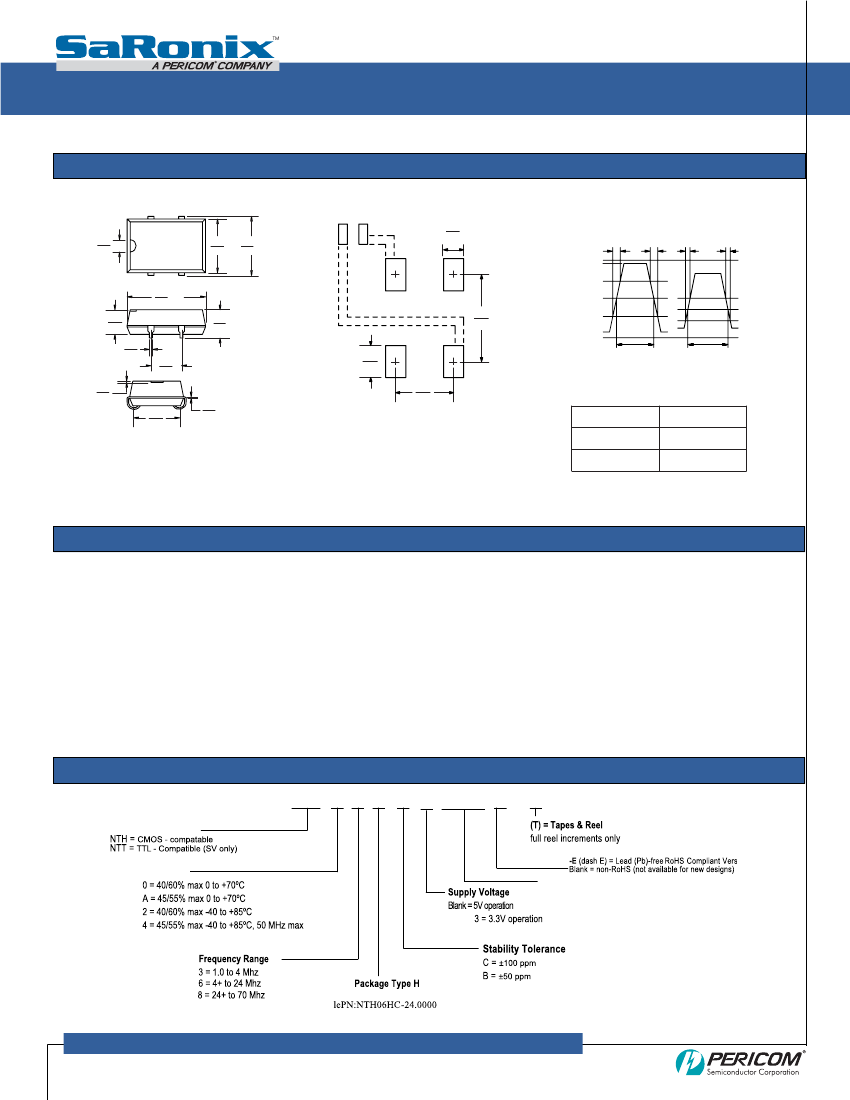

Packaging Information: Type H
4
3
YYWW
8.95
.352
9.80
max
.386
Recommended Land Pattern
*
1.78
.070
Output Waveform
CMOS
T
r
LOGIC 1
80% V
DD
T
f
T
r
TTL
T
f
V
DD
2.0
.079
SARONIX
24.0000 MHz
NTH06HC
1
2
13.0
max
.512
4
4.7 max
.185
3
7.80
.307
50% V
DD
20% V
DD
LOGIC 0
SYMMETRY
SYMMETRY
4.10
.161
0.51
.020
5.08
.200
0.15
.006
7.62
.300
2.5 VDC
1.5 VDC
0.5 VDC
GND
1
2.82
.111
5.08
.200
0.25
.010
2
Tri-State Logic Table
Pin 1 Input
Pin 3 Output
Oscillation
High Impedance
Pin Function:
Pin 1: Tri-State Control
Pin 2: GND
*
External high frequency power supply
Pin 3: Output
Pin 4: +5 VDC
Logic 1 or NC
Logic 0 or GND
decoupling required.
Required Input Levels on Pin 1:
Logic 1 = 2.0V min
Logic 0 = 0.8V max or 0.2V max @ 3.3V
Output Drive
HCMOS:
Symmetry: 40/60% or 45/55% max @ 50% VDD, See Part
Numbering Guide
Rise and Fall Times: 8ns max 20% to 80% VDD @ 5V
4ns max 20% to 80% VDD @ 3.3V
Logic 0: 10% V
DD
max or 0.4V max @ 3.3V
Logic 1: 90% V
DD
min or V
DD -
0.4V min @ 3.3V
Load: 50pF max to 50 MHz, 30pF 50+ to 70 MHz
30pF @ 3.3V operation
Period Jitter RMS: 8ps max
TTL 5(V):
Symmetry: 40/60% or 45/55% max @ 1.5V level, See Part
Numbering Guide
Rise and Fall Times: 8ns max 0.5 to 2.5V
Logic 0: 0.5V max
Logic 1: 2.5V min
Load: 10 TTL to 50 MHz, 5 TTL 50+ to 70 MHz
Period Jitter RMS: 8ps max
Ordering Information
NTH
Series
0
6 H
C
24.0000
-E
(T)
Symmetry
Frequency
Examp
(T)
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
2
All specifications are subject to change without notice.
DS-111 Rev L | 11/02/2006
