Bulletin I27095 rev. A 08/97
IRK.L132.. SERIES
FAST RECOVERY DIODES
Features
Fast recovery time characteristics
Electrically isolated base plate
Industrial standard package
Simplified mechanical designs, rapid assembly
High surge capability
Large creepage distances
3000 V
RMS
isolating voltage
UL E78996 approved
INT-A-pakä Power Modules
140 A
Description
The IRK.L132 series of INT-A-pak uses fast recovery
power diodes in four basic configurations. The semicon-
ductors are electrically isolated from the metal base, al-
lowing common heatsinks and compact assemblies to be
built. Application includes power supplies, battery charg-
ers, welders, motor controls and general industrial current
rectification. These modules are intended for those appli-
cations where fast recovery characteristics are required.
Major Ratings and Characteristics
Parameters
I
F(AV)
@ T
C
I
F(RMS)
I
FSM
@ 50Hz
@ 60Hz
I
2
t
@ 50Hz
@ 60Hz
I
2
√t
V
RRM
T
J
IRK.L132..
140(130)
100 (105)
220
3000
3100
44.2
40.3
442
up to 1400
- 40 to 150
Units
A
°C
A
A
A
KA
2
s
KA
2
s
KA
2
√s
V
o
C
www.irf.com
1
IRK.L132.. Series
Bulletin I27095 rev. A 08/97
ELECTRICAL SPECIFICATIONS
Voltage Ratings
Type number Voltage
Code
06
IRK.L132..
10
12
14
t
rr
Code
S10
S10
S20
S20
V
RRM
, maximum repetitive
peak reverse voltage
V
600
1000
1200
1400
V
RSM
, maximum non-repetitive I
RRM
max.
peak reverse voltage
@ 150°C
V
mA
700
1100
1300
1500
40
Forward Conduction
Parameter
I
F(AV)
Max. average forward current
@ Case temperature
I
F(RMS)
Max. RMS forward current
I
FSM
Max. peak, one-cycle forward,
non-repetitive surge current
IRK.L132..
140 (130)
100 (105)
220
3000
3100
2500
2600
Units
A
°C
A
Conditions
180° conduction, half sine wave
as AC switch
t = 10ms
t = 8.3ms
No voltage
reapplied
100% V
RRM
reapplied
No voltage
reapplied
100% V
RRM
reapplied
Sinusoidal half wave,
Initial T
J
= T
J
max.
A
t = 10ms
t = 8.3ms
t = 10ms
t = 8.3ms
I
2
t
Maximum I
2
t for fusing
44.2
40.3
31.2
28.5
KA
2
s
t = 10ms
t = 8.3ms
I
2
√t
Maximum I
2
√t
for fusing
voltage
442
1.12
KA
2
√s
t = 0.1 to 10ms, no voltage reapplied
(16.7% x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
max.
V
F(TO)1
Low level value of threshold
V
F(TO)2
High level value of threshold
voltage
r
r
f
1
V
1.51
1.52
mΩ
0.71
1.68
V
(I >
π
x I
F(AV)
),T
J
= T
J
max.
I
FM
=
π
x I
F(AV)
, T
J
= 25°C
Av. power = V
F(TO)
x I
F(AV)
+ r
f
x (I
F(RMS)
)
2
(I >
π
x I
F(AV)
),T
J
= T
J
max.
(16.7% x
π
x I
F(AV)
< I <
π
x I
F(AV)
), T
J
= T
J
max.
Low level value of forward
slope resistance
High level value of forward
slope resistance
f
2
V
FM
Max. forward voltage drop
Recovery Characteristics
Test conditions
Code
I
pk
Typ. values @ T
J
= 150
o
C
r
di/dt
(A/µs)
V
Q
rr
I
rr
I
F M
t
rr
(A)
(V)
(µC)
(A)
t
S10
S20
500
500
100
100
50
50
38
68
70
95
di
dt
Q
rr
I
RM
(REC)
2
www.irf.com
IRK.L132.. Series
Bulletin I27095 rev. A 08/97
Blocking
Parameter
I
RRM
V
INS
Max. peak reverse leakage
current
RMS isolation voltage
IRK.L132..
40
3000
Units Conditions
mA
V
T
J
= 150
o
C
50 Hz, circuit to base, all terminals shorted, t = 1 sec
Thermal and Mechanical Specifications
Parameter
T
J
T
stg
R
thJC
R
thCS
T
Max. junction operating
temperature range
Max. storage temperature range
Max. thermal resistance,
junction to case
Max. thermal resistance,
case to heatsink
Mounting torque ±10%
IAP to heatsink
busbar to IAP
Approximate weight
IRK.L132..
-40 to 150
-40 to 150
0.20
0.035
Units
°C
°C
K/W
K/W
Conditions
Per junction, DC operation
Mounting surface flat, smooth and greased
Per module
A mounting compound is recommended and
the torque should be rechecked after a period
of 3 hours to allow for the spread of the
compound
4 to 6
4 to 6
500 (17.8)
Nm
g (oz)
wt
∆R
thJC
Conduction
(The following table shows the increment of thermal resistence R
thJC
when devices operate at different conduction angles than DC)
Conduction angle
180°
120°
90°
60°
30°
Sinusoidal conduction
0.011
0.016
0.021
0.029
0.041
Rectangular conduction Units
0.012
0.019
0.023
0.030
0.041
K/W
Conditions
T
J
= T
J
max.
Ordering Information Table
Device Code
IRK
1
1
2
3
4
5
-
-
-
-
-
Module type
D
2
L
3
13
4
2
-
5
14
6
S20
7
N
8
Circuit configuration (see Outline Table)
L = Fast recovery diode
Current rating: I
F(AV)
x 10 rounded
1 = option with spacers and longer terminal screws
2 = option with standard terminal screws
6
7
8
-
-
-
Voltage code: Code x 100 = V
RRM
(see Voltage Rating Table)
t
rr
code (see Recovery Characteristics Table)
None = Standard devices
N
= Aluminum nitrade substrate
S10 = 1000ns
S20 = 2000ns
www.irf.com
3
IRK.L132.. Series
Bulletin I27095 rev. A 08/97

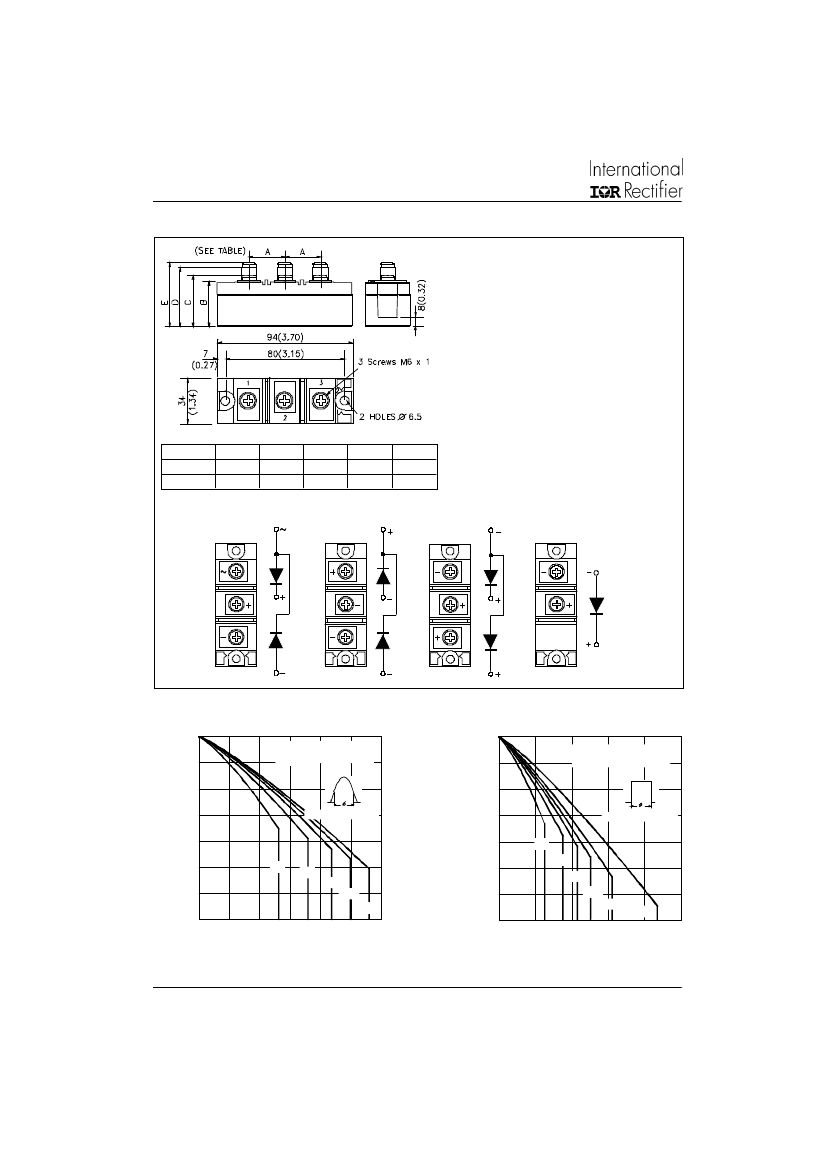

Outline Table
- All dimensions in millimeters (inches)
- Dimensions are nominal
- Full engineering drawings are available
on request
- UL identification number for cathode
wire: UL 1385
- UL identification number for package:
UL 94V0
For all types
IRK...1
IRK...2
A
25 (0.98)
23 (0.91)
B
----
30 (1.18)
C
----
36 (1.42)
D
41 (1.61)
----
E
47 (1.85)
----
IRKDL...
IRKCL...
IRKJL...
IRKEL...
Maximum Allowable Case Temperature (°C)
Maximum Allowable Case Temperature (°C)
150
140
130
120
110
100
90
80
0
25
50
75
100
125
150
Average Forward Current (A)
30°
60°
90°
120°
180°
Conduction Angle
150
140
130
120
110
100
90
80
0
50
100
150
200
250
Average Forward Current (A)
30°
60°
90°
120°
180°
DC
Conduction Period
IRK.L132.. Series
R
thJC
(DC) = 0.20 K/W
IRK.L132.. Series
R
thJC
(DC) = 0.20 K/W
Fig. 1 - Current Ratings Characteristics
Fig. 2 - Current Ratings Characteristics
4
www.irf.com
IRK.L132.. Series
Bulletin I27095 rev. A 08/97
Maximum Average Forward Power Loss (W)
Maximum Average Forward Power Loss (W)
250
225
200
175
150
125
100
75
50
25
0
0
25
50
75
100
125
150
Average Forward Current (A)
Conduction Angle
350
300
250
200
150 RMS Limit
100
50
0
0
50
100
150
200
250
Average Forward Current (A)
Conduction Period
180°
120°
90°
60°
30°
RMS Limit
DC
180°
120°
90°
60°
30°
IRK.L132.. Series
T
J
= 150°C
Per Junction
IRK.L132.. Series
T
J
= 150°C
Per Junction
Fig. 3 - Forward Power Loss Characteristics
3000
At Any Rated Load Condition And With
Rated V
RRM
Applied Following Surge.
Initial T = 150°C
J
@ 60 Hz 0.0083 s
@ 50 Hz 0.0100 s
3000
Fig. 4 - Forward Power Loss Characteristics
Peak Half Sine Wave Forward Current (A)
Peak Half Sine Wave Forward Current (A)
2500
2500
Maximum Non Repetitive Surge Current
Versus Pulse Train Duration.
Initial T
J
= 150°C
No Voltage Reapplied
Rated V
RRM
Reapplied
2000
2000
1500
1500
1000
IRK.L132.. Series
Per Junction
500
1
10
100
Number Of Equal Amplitude Half Cyc le Current Pulses (N)
1000
IRK.L132.. Series
Per Junction
500
0.01
0.1
Pulse Train Duration (s)
1
Fig. 5 - Maximum Non-Repetitive Surge Current
10000
Instantaneous Forward Current (A)
T
J
= 25°C
T
J
= 150°C
Fig. 6 - Maximum Non-Repetitive Surge Current
1
Steady State Value
R thJC = 0.20 K/W
(DC Operation)
0.1
1000
100
Transient Thermal Impedance Z
thJC
(K/W)
0.01
IRK.L132.. Series
Per Junction
0.001
0.0001
IRK.L132.. Series
Per Junction
10
0
1
2
3
4
5
6
Instantaneous Forward Voltage (V)
0.001
0.01
0.1
1
10
Square Wave Pulse Duration (s)

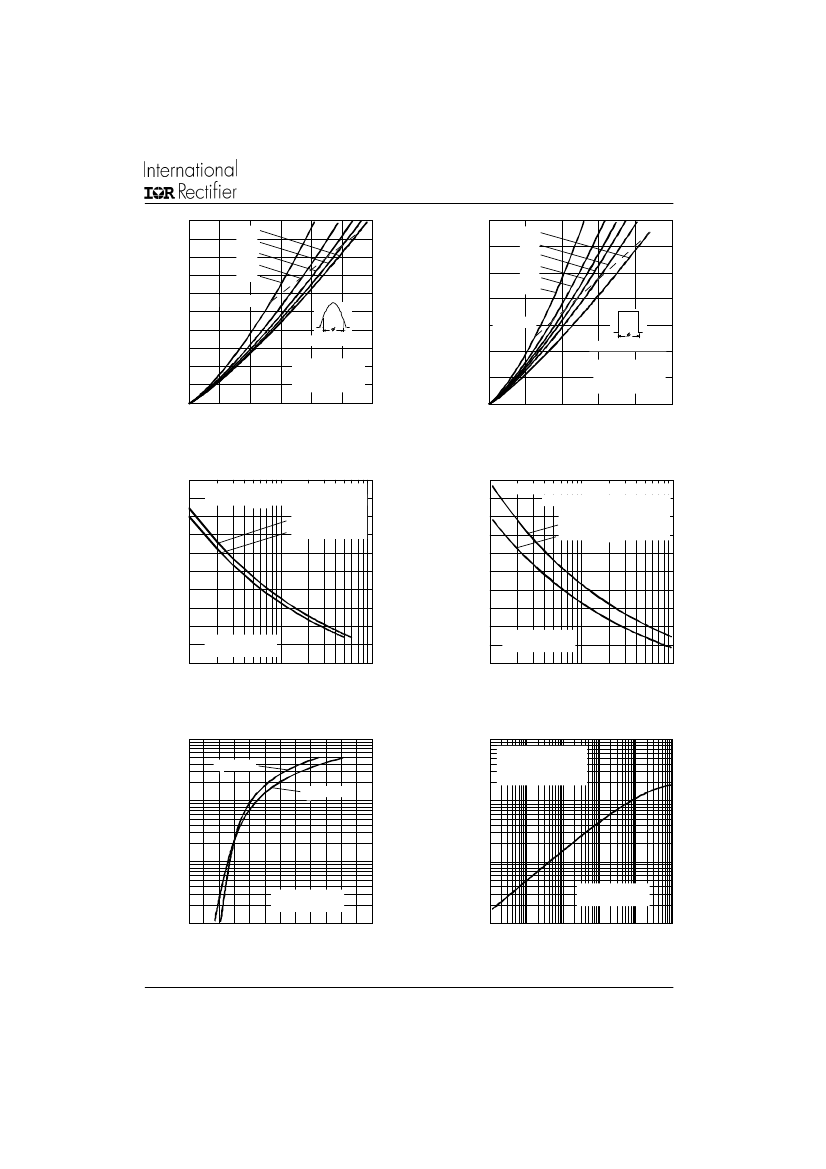

Fig. 7 - Forward Voltage Drop Characteristics
Fig. 8 - Thermal Impedance Z
thJC
Characteristic
www.irf.com
5
