"High Frequency Ceramic Solutions"
UWB (3.1 - 7.16 GHz) Band Pass Filter
Detail Specification: 02/14/06
P/N 5130BP18U4060
Page 1 of 2

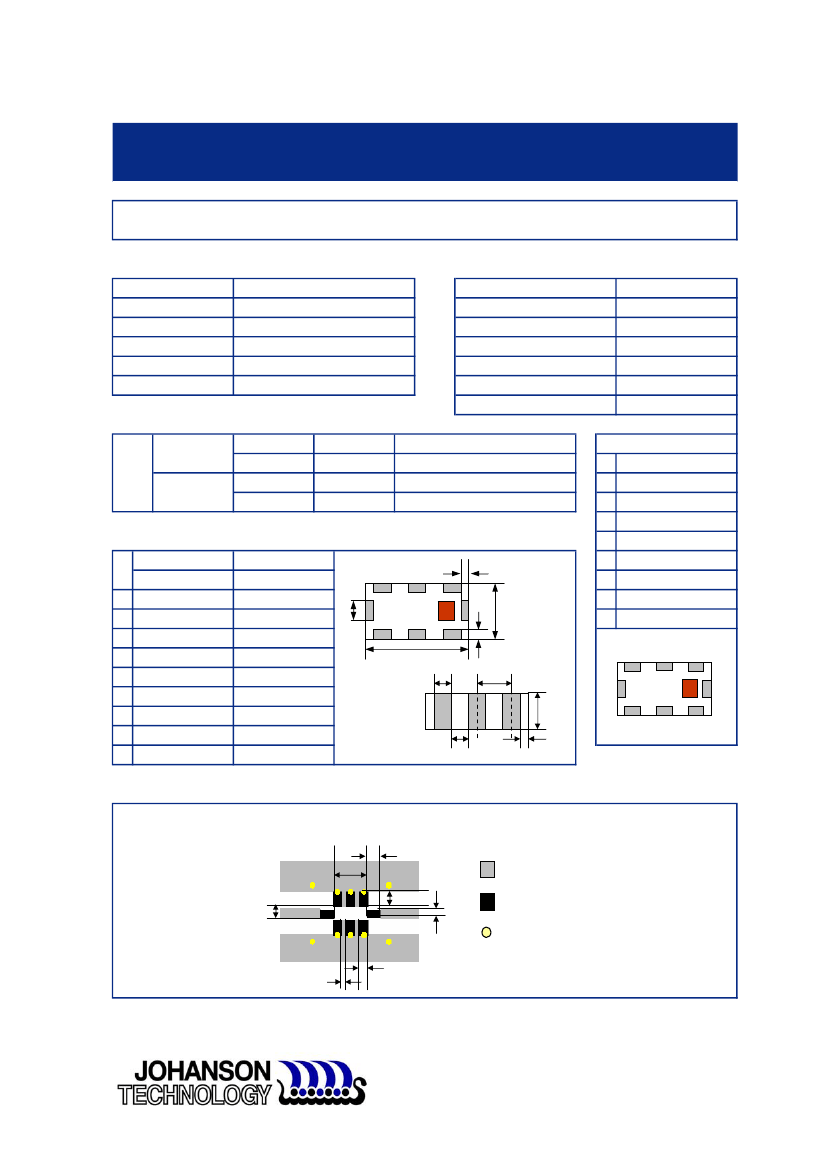

General Specifications
Part Number
Frequency (MHz)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
5130BP18U4060
3100 - 7160
25 dB @ 824 -960 MHz
25 dB @ 1710 - 1990 MHz
15 dB @ 2400 -2500 MHz
20 dB @ 10100 - 10600 MHz
Insertion Loss
Return Loss
Impedance
Input Power
Operating Temperature
Storage Temperature
Reel Quantity
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Eg. 5130BP18U4060S
Eg. 5130BP18U4060E
Eg. 5130BP18U4060(E or S)
Eg. 5130BP18U4060(E or S)/Pb
1.6 dB max.
9.5 dB min.
50
Ω
500 mW max.
-40 to +85°C
-40 to +85°C
3,000
P/N
Suffix Termination
Style
Packaging
Style
Terminal Configuration
No.
1
2
3
Function
GND
GND
GND
I/O
GND
GND
GND
I/O
3
2
1
8
5
6
7
Mechanical Dimensions
In
L
W
T
a1
a2
b
c1
c2
g
p
4
mm
3.20 ± 0.15
1.60 ± 0.15
0.95 ± 0.10
0.55 ± 0.15
0.50 ± 0.15
0.30
+0.1/-0.2
0.30 ± 0.15
0.30 ± 0.20
0.40 ± 0.15
1.00 ± 0.10
g
L
a1
a2
c2
5
6
7
W
8
0.126 ± 0.006
0.063 ± 0.006
0.037 ± 0.004
0.022 ± 0.006
0.020 ± 0.006
0.012 +.004/-.008
0.012 ± 0.006
0.012 ± 0.008
0.016 ± 0.006
0.039 ± 0.004
c1
p
4
T
b
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness
2.45
1.0
1.05
0.95
0.5
Solder
Land
Through-hole (
φ
0.35)
0.35
Units: mm
0.65
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
UWB (3.1 - 7.16 GHz) Band Pass Filter
Detail Specification: 02/14/06
P/N 5130BP18U4060
Page 2 of 2

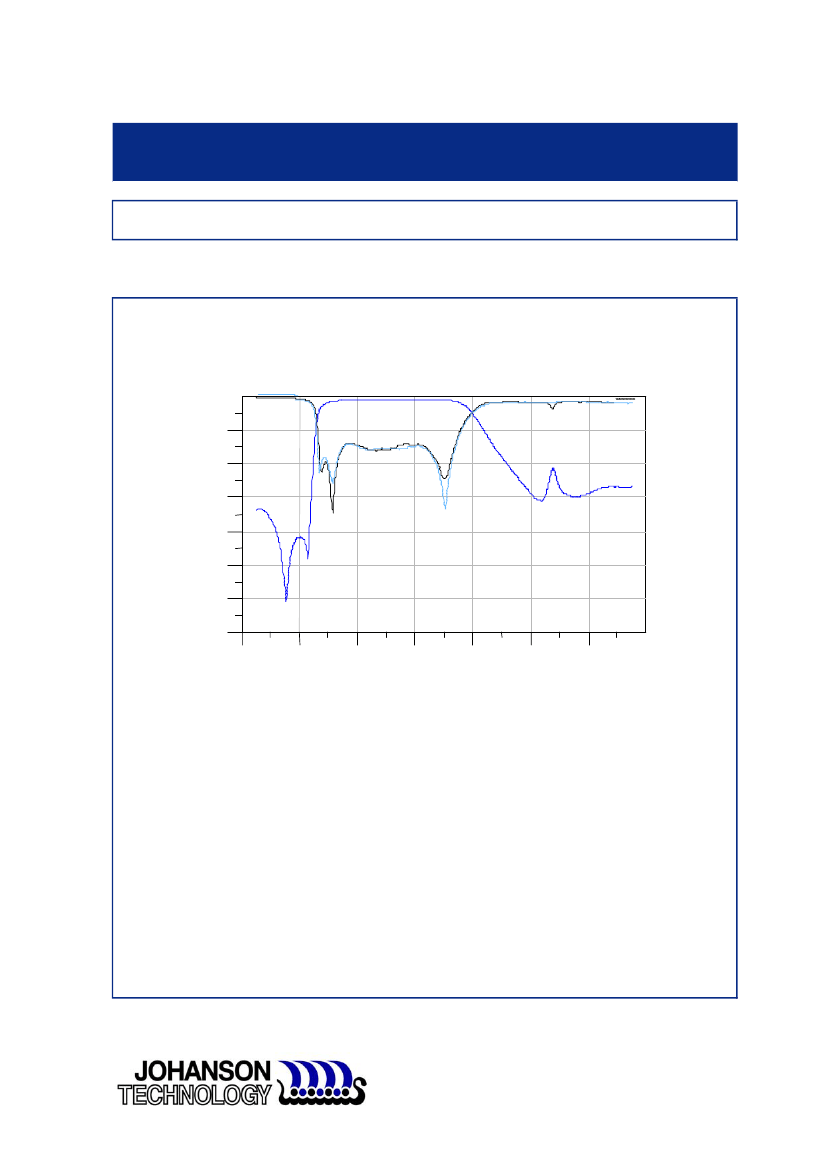

Typical Electrical Performance (T=25°C)
)
)
)
0
-10
-20
-30
-40
S(1,1)
)
)
)
)
)
)
)
)
S(2,2)
)
)
)
)
dB
)
)
S(2,1)
)
)
-50
-60
-70
0
2
4
6
freq, GHz
8
10
12
14
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
