LA60X800-128: DescriptionElectric Fuse, Fast Blow, 800A, 600VAC, 100000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size372KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

LA60X800-128 Overview

Electric Fuse, Fast Blow, 800A, 600VAC, 100000A (IR), Inline/holder,

LA60X800-128 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	95.3 mm
Body length or diameter	76.2 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
physical size	76.2mm x 95.3mm
Rated breaking capacity	100000 A
Rated current	800 A
Rated voltage	600 V
Rated voltage (AC)	600 V
Guideline	UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

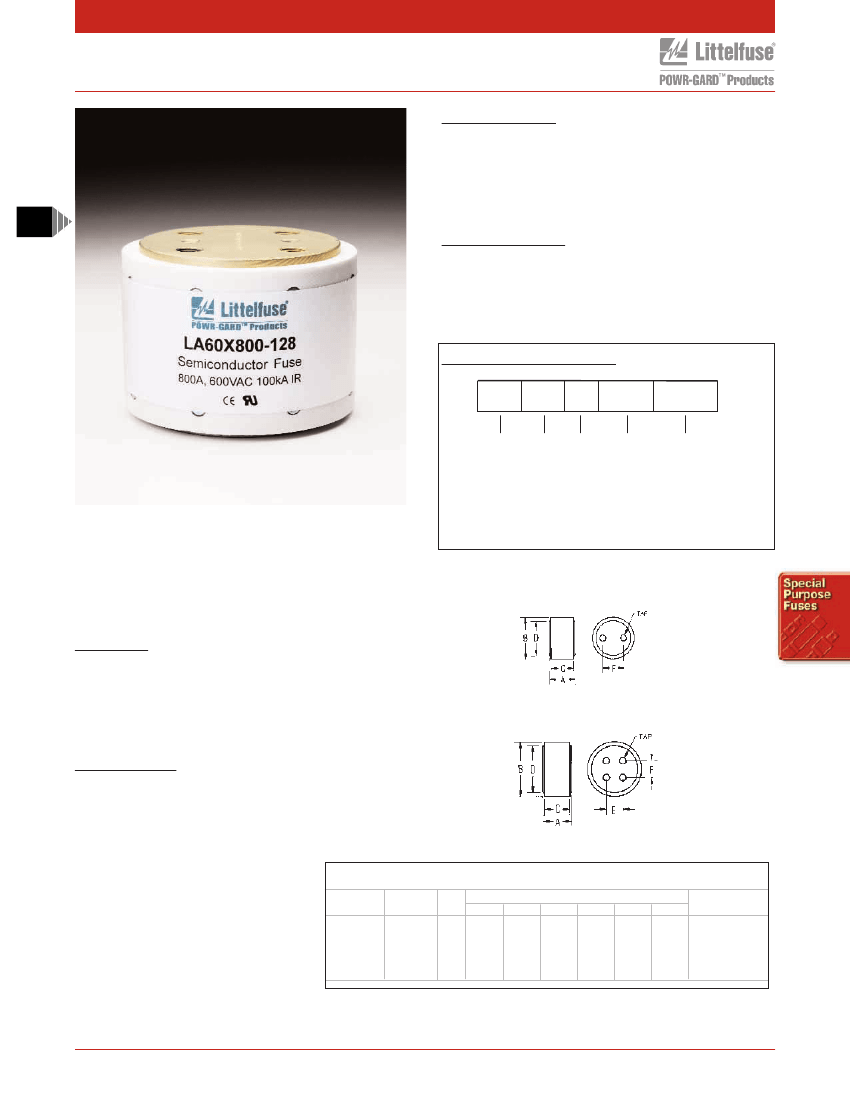

LA60X Semiconductor Fuses

600 VAC

I

Very Fast-Acting

I

700 – 2000 Amperes

SPECIFICATIONS

Voltage Rating:

AC: 600 volts

Interrupting Rating:

AC: 100,000 Amperes

Ampere Range:

700 – 2000 Amperes

Approvals:

UL Recognized under the components

program.

NEW

AMPERE RATINGS

700

800

1000

1200

1500

1600

1800

2000

ORDERING INFORMATION

LA 60 X 700 -128

Voltage

(600)

Ampere Rating

Mounting Type

-

1.50

(38.1)

1.50

(38.1)

Littelfuse

Style

Littelfuse’s LA60X semiconductor protection fuses are popu-

lar for the protection of higher voltage heavy rectifiers such

as traction rectifiers. They can carry long sustained over-

loads common with heavy-duty apparatus. The compact

“hockey-puck” design provides high power protection in a

small space.

FIGURE 1

FEATURES

I

Lowest I

2

t

minimizes damage to protected components on

short circuit.

Controlled arc voltage

reduces stress to circuit compo-

nents during fuse clearing.

FIGURE 2

APPLICATIONS

Protection of heavy traction and electrochemical as well as

rectifiers and other heavy-duty equipment.

DIMENSIONS

AMPERES

700 – 800

1000 – 1200

1500 – 2000

Dimensions for reference only.

FIG.

NO.

1

2

MOUNT.

TYPE

128

DIMENSIONS IN INCHES (mm in parentheses)

A

B

C

D

E

F

4.00

(102)

4.00

(102)

4.00

(102)

3.00

(76.2)

3.50

(88.9)

4.50

(114)

3.75

(95.3)

3.75

(95.3)

3.75

(95.3)

2.50

(63.5)

3.00

(76.2)

3.75

(95.3)

1.50

(38.1)

1.50

(38.1)

1.50

(38.1)

(Hockey Puck, bolt-in)

Tap

3/8-24-1/2 deep

-

3/8-24-1/2 deep

-

1/2-20-1/2 deep

-

Contact Littelfuse for technical information.

93
