FIS105NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> FIS105NL

FIS105NL: DescriptionCurrent Sense Transformer, 25A, 1:50, ROHS COMPLIANT; CategoryPower management transformer; File Size201KB，1 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

FIS105NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FIS105NL	-	-	View	Buy Now

FIS105NL Overview

Current Sense Transformer, 25A, 1:50, ROHS COMPLIANT

FIS105NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Samacsys Description	Current Transformer 1:50 4000Vrms 0.5Ohm Sec. DCR 25000mA Prim. 5Term. PC Pin Thru-Hole
ET product minimum value	175 V-us
high	12 mm
length	17.6 mm
Load Resistance	0.5 Ω
Installation features	THROUGH HOLE MOUNTED
Maximum operating frequency	500 kHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
Peak primary current	25 A
physical size	L17.6XB15.0XH12.0 (mm)
primary type	WOUND PRIMARY
secondary inductance	4700 µH
surface mount	NO
Transformer type	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:50
width	15 mm

Preview

Download Datasheet

View All

Current Sense Transformers

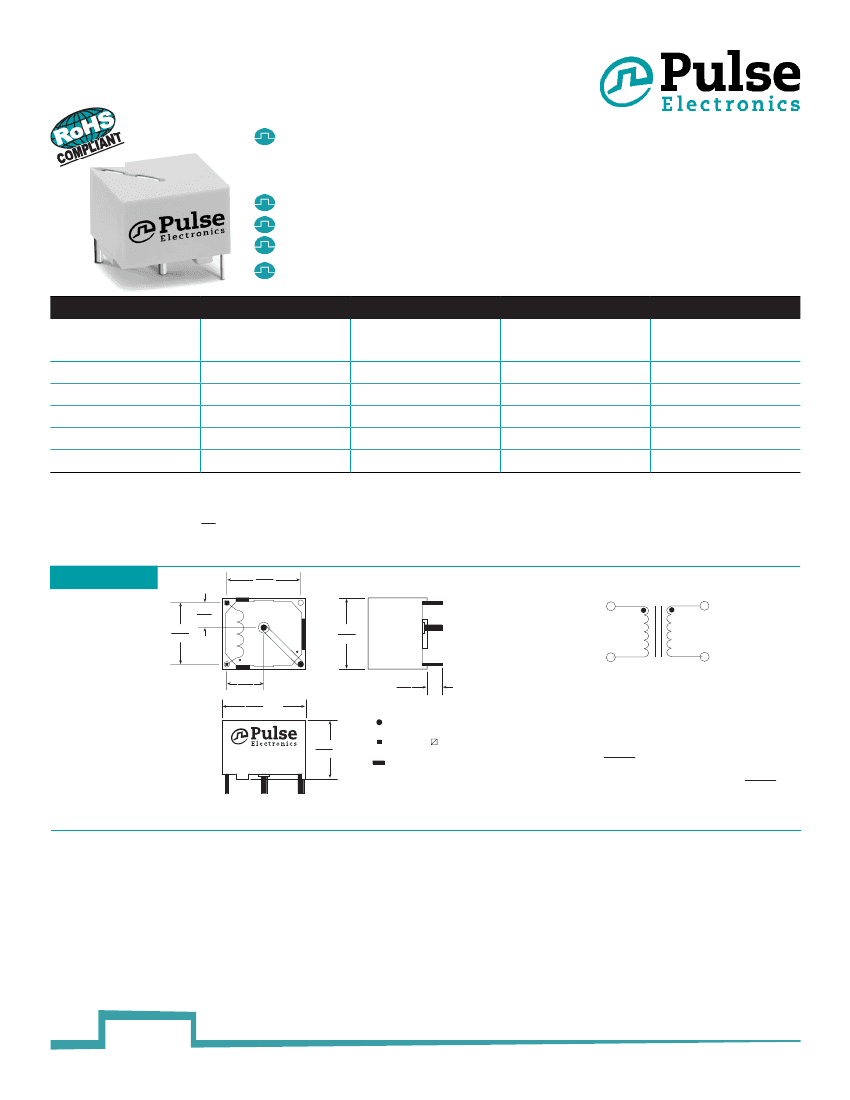

FIS 1X5 Series

Current sense transformers provide output feedback to the pulse

control circuitry allowing low-cost regulation of switch-mode power

supplies

Fully encapsulated construction

Isolation primary to secondary: 4000V AC

25A maximum primary current, 500kHz maximum frequency

Applications: switch-mode power supplies, lighting, switch controls

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part No.

FIS105NL

FIS115NL

FIS125NL

FIS155NL

FIS1105NL

Notes:

Inductance: (1-3) tested at 10 KHz & 10 mV

V x

τ:

V = Rt x ls

τ =

Prim/Sec

Ratio

1:50

1:100

1:200

1:500

1:1000

Sec L

(mH MIN)

4.7

470

1900

Rt (Ω): Recommended Terminating Resistance

Is (A): sec. current

F(Hz): Frequency

Sec DCR

(Ω MAX)

0.5

2.0

4.5

16.0

50.0

(MAX)

175

µVS

350

µVS

700

µVS

1750

µVS

3500

µVS

* Contact Pulse for availability

Mechanicals

FISXXX

.197

5,00

.492

12,50

Sec.

.591

15,00

Schematics

.591

15,00

.295

7,50

.693

MAX

17,60

.118

3,00

Pins 3 & 5

Part Number

Date Code

Country of Origin

1,2 mm

0,5 mm

FIS105NL/15NL/25NL/55NL FIS1105NL

Weight

.......................7.0 grams ....................8.0 grams

Tray

................................30/tray ........................34/tray

Inches

.020

Unless otherwise specified, all tolerances are

0,50

Dimension:

.472

12,00

Pins 1 & 2

Stand off

For More Information

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

Pulse China Headquarters

Pulse North China

Pulse South Asia

Pulse North Asia

B402, Shenzhen Academy of

Room 2704/2705

135 Joo Seng Road

3F, No. 198

Aerospace Technology Bldg.

Super Ocean Finance Ctr.

#03-02

Zhongyuan Road

10th Kejinan Road

2067 Yan An Road West

PM Industrial Bldg.

Zhongli City

High-Tech Zone

Shanghai 200336

Singapore 368363

Taoyuan County 320

Nanshan District

China

Taiwan R. O. C.

Shenzhen, PR China 518057

Tel: 886 3 4356768

Tel: 858 674 8100

Tel: 49 7032 7806 0

Tel: 86 755 33966678

Tel: 86 21 62787060

Tel: 65 6287 8998

Fax: 886 3 4356823 (Pulse)

Fax: 858 674 8262

Fax: 49 7032 7806 135

Fax: 86 755 33966700

Fax: 86 2162786973

Fax: 65 6287 8998

Fax: 886 3 4356820 (FRE)

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

pulseelectronics.com

P537.E (06/16)
