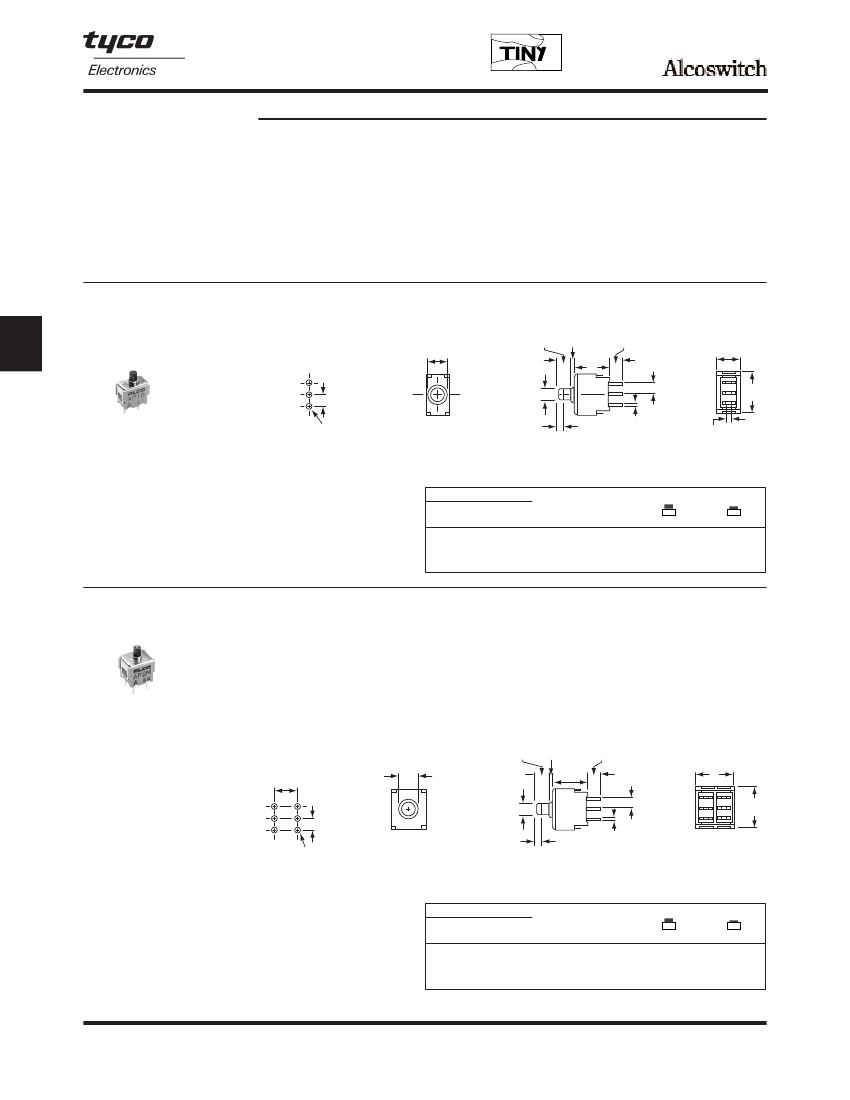

APA Series
Pushbutton Switches, .120 Actuator, Straight
MATERIAL SPECIFICATIONS:
Contacts ..................................Gold plate
Case Material ..........................Polyester
Actuator Material ....................Polyester, black
Terminal Seal ..........................Epoxy
TYPICAL PERFORMANCE CHARACTERISTICS:
Contact Rating ........................0.4 VA Max. @ 20 VDC or peak AC
Initial Contact Resistance ........50 Milliohms max.
Contact Timing ........................Break-before-make
Insulation Resistance ..............1,000 Megohms @ 500 VDC min.
Dielectric Strength ..................500 Volts RMS @ sea level
Actuator Travel.........................050" (1.27)
Life Expectancy ......................Up to 10,000 Cycles
FOR SEALED VERSIONS SEE PAGES D19 AND D20
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature............-4°F to +176°F (-20°C to +80°C)
Storage Temperature................-40°F to +176°F (-40°C to +80°C)
D
APA Series
SPST/SPDT
Bushing
.130
(3.30)
DIA.
.120 .040
.130
(3.00) (1.02)
(3.30)
.315
(8.00)
.097
(2.46)
DIA.
.050
(1.20)
TRAVEL
.020
(0.51)
.100
(2.54)
TYP.
1
2
3
.200
(5.08)
.100
(2.54)
DIA.
.043
(1.09)
DIA. TYP.
.376
(9.55)
APA1BGPC
.024
(0.60)
TYP.
Part Number
Tyco
Alcoswitch
Type Action
Electronics
1437567-2
APA1BGPC SPST N.C. Momentary
1437567-3
APA1CGPC SPST N.O. Momentary
1437567-5
APA1FGPC
SPDT Momentary
Note: No center terminals on "B" or "C" action switches.
1-3
—
2-3
(—)
(1-3)
(2-1)
DPST/DPDT
APA2MGPC
Bushing
.130
(3.30)
DIA.
.200
(5.08)
.120 .040
.130
(3.00) (1.02)
(3.30)
.315
(8.00)
.100
(2.54)
TYP.
.050
(1.20)
TRAVEL
.020
(0.51)
TYP.
1
2
3
.300
(7.62)
.100
(2.54)
TYP.
.043
(1.09)
DIA. TYP.
.097
(2.46)
DIA.
4
.376
5 (9.55)
6
Part Number
Tyco
Type Action
Alcoswitch
Electronics
—
APA2LGPC DPST N.C. Momentary
1437567-7
APA2MGPC DPST N.O. Momentary
1437567-9
APA2RGPC DPDT Momentary
Note: No center terminals on "L" or "M" action switches.
1-3, 4-6
—
2-3, 5-6
(—)
(1-3, 4-6)
(2-1, 5-4)
D16
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
®

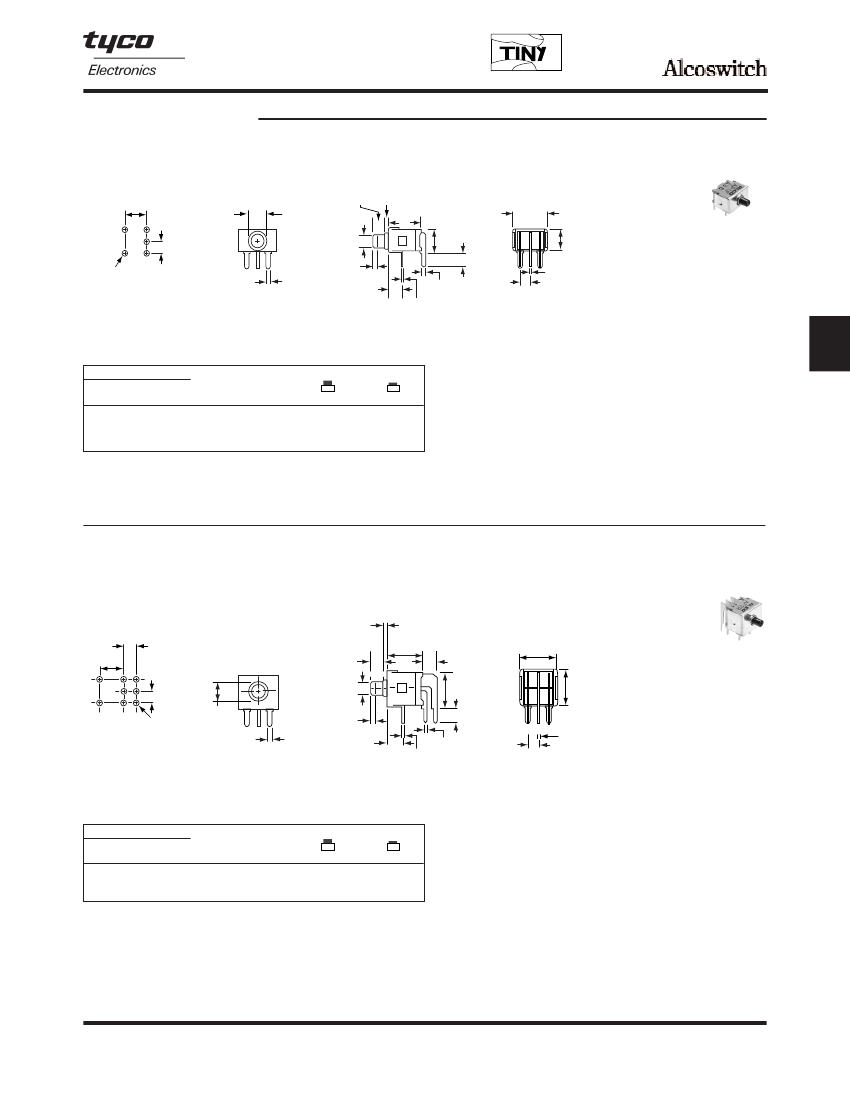

APA Series
Pushbutton Switches, .120 Actuator, Right Angle
SPST/SPDT
.200
(5.08)
.120 .027
(3.00) (0.69)
.330
(8.38)
.097
(2.46)
.050
(1.20)
TRAVEL
.125
(3.17)
2.25
(5.72)
.135
(3.43)
.024
(0.60)
.012 TYP.
0.30
.100
(2.54)
TYP.
.403
(10.23)
1 2 3
.229
(5.82)
.020
(0.51)
TYP.
.130
(3.30)
DIA.
.100
(2.54)
TYP.
APA1FGRA
.043
(1.09)
DIA. TYP.
.025
(0.63)
D
Part Number
Tyco
Type Action
Alcoswitch
Electronics
—
APA1BGRA SPST N.C. Momentary
1437567-4
APA1CGRA SPST N.O. Momentary
1437567-6
APA1FGRA SPDT Momentary
Note: No center terminals on "B" or "C" action switches.
APA Series
1-3
—
2-3
(—)
(1-3)
(2-1)
DPST/DPDT
.030
(0.76)
.200
(5.08)
.100
(2.54)
.335
(8.50)
.120
(3.00)
.097
(2.46)
DIA.
Bushing
.130
(3.30)
DIA.
.050
(1.20)
TRAVEL
.140
(3.56)
.122
(3.09)
.350
(8.90)
.130
(3.30)
4 5 6
.023
.012 (0.58)
(0.30)
.100
(2.54)
TYP.
.020
(0.51)
TYP.
.375
(9.53)
1 2 3
.298
(7.57)
APA2RGRA
.100
(2.54)
TYP.
.043
(1.09)
DIA. TYP.
.025
(0.63)
Part Number
Tyco
Type Action
Alcoswitch
Electronics
1437567-8 APA2MGRA DPST N.O. Momentary
1-1437567-0 APA2RGRA DPDT Momentary
Note: No center terminals on "M" action switches.
—
2-3, 5-6
(1-3, 4-6)
(2-1, 5-4)
D17
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
®

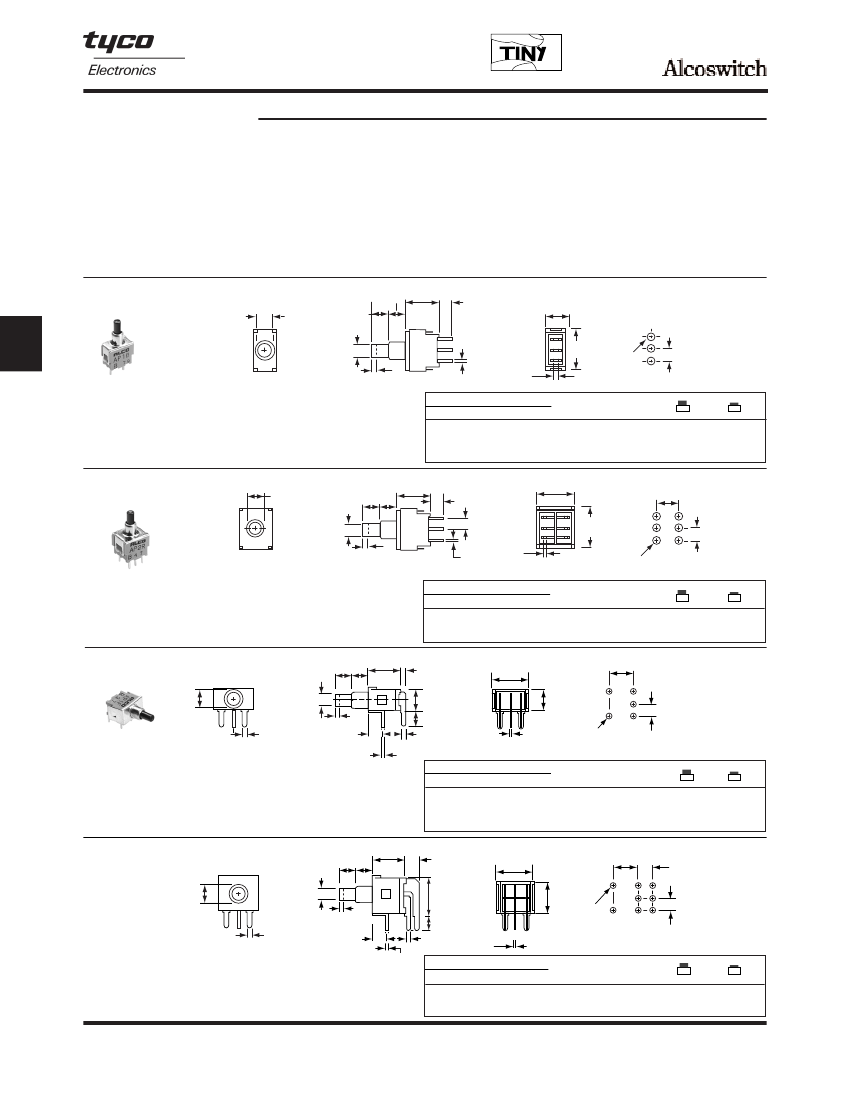

APB Series
Pushbutton Switches, .157 Actuator, Vertical or Right Angle
MATERIAL SPECIFICATIONS:
Contacts ..................................Gold plate
Case Material ..........................Polyester
Actuator Material ....................Polyester, black
Terminal Seal ..........................Epoxy
TYPICAL PERFORMANCE CHARACTERISTICS:
Contact Rating ........................0.4 VA Max. @ 20 VDC or peak AC
Initial Contact Resistance ........50 Milliohms max.
Contact Timing ........................Break-before-make
Insulation Resistance ..............1,000 Megohms @ 500 VDC min.
Dielectric Strength ..................500 Volts RMS @ sea level
Actuator Travel........................0.050" (1.27)
Life Expectancy ......................Up to 10,000 Cycles
FOR SEALED VERSIONS SEE PAGES D19 AND D20
.315
.157 (8.00)
(4.00)
.157
(4.00)
.098
(2.48)
DIA.
.050
(1.20)
TRAVEL
.130
(3.30)
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature............-4°F to +176°F (-20°C to +80°C)
Storage Temperature................-40°F to +176°F (-40°C to +80°C)
SPST/SPDT
.157
(4.00)
DIA.
.197
(5.00)
1
2
3
.024
(0.61)
.374
(9.50)
D
APB Series
APB1BGPC
.100
(2.54)
TYP.
.043
(1.09)
DIA. TYP.
.020
(0.51)
Part Number
Type Action
Tyco Electronics Alcoswitch
1-1437567-1
APB1BGPC
SPST N.C. Momentary
APB1CGPC
SPST N.O. Momentary
1-1437567-2
1-1437567-4
APB1FGPC
SPDT Momentary
Note: No center terminal on "B" and "C" action switches.
.300
(7.62)
1-3
—
2-3
(—)
(1-3)
(2-1)
DPST/DPDT
.157
(4.00)
DIA.
.157
(4.00)
.098
(2.48)
DIA.
.315
.157 (8.00)
(4.00)
.130
(3.30)
.100
(2.54)
TYP.
1
2
3
.024
(0.61)
TYP.
.200
(5.08)
4
.375
5 (9.52)
6
.043
(1.09)
DIA. TYP.
.100
(2.54)
TYP.
.050
(1.27)
TRAVEL
.020
(0.51)
TYP.
APB2RGPC
Part Number
Tyco Electronics Alcoswitch
Type Action
—
APB2LGPC
DPST N.C. Momentary
1-1437567-7
APB2RGPC DPDT Momentary
Note: No center terminal on "L" action switches.
.325
.142
(3.60) (8.25)
1-3, 4-6
2-3, 5-6
(—)
(2-1, 5-4)
SPST/SPDT
.157
(4.00)
.098
(2.48)
DIA.
.024
(0.61)
TYP.
.020
(0.50)
.236
(5.99)
.130
(3.30)
.402
(10.2)
1 2 3
.228
(5.79)
.200
(5.08)
.100
(2.54)
TYP.
.157
(4.00)
DIA.
APB1FGRA
.050
(1.20)
TRAVEL .133
3.37
.024
(0.61)
.012
(0.30)
.020
(0.50)
TYP.
.043
(1.09)
DIA. TYP.
Part Number
Tyco Electronics Alcoswitch
Type
Action
—
APB1BGRA SPST
N.C. Momentary
1-1437567-3
APB1CGRA SPST
N.O. Momentary
1-1437567-5
APB1FGRA SPDT
Momentary
Note: No center terminal on "B" and "C" action switches.
1-3
—
2-3
(—)
(1-3)
(2-1)
DPST/DPDT
.157
(3.98)
.098
(2.48)
DIA.
.157
(4.00)
DIA.
.025
(0.63)
TYP.
.330
.142 (8.38)
(3.60)
.135
(3.43)
.350
(8.90)
.400
(10.16) 1 2 3
.330
(8.38)
.200
(5.08)
.043
(1.09)
DIA. TYP.
.100
(2.54)
.050
(1.27)
TRAVEL
.135
(.342)
.012
(0.30)
.125
(3.17)
.025
(0.63)
.020
(0.51)
TYP.
4 5 6
.100
(2.54)
TYP.
Part Number
Type Action
Tyco Electronics Alcoswitch
1-1437567-6
APB2MGRA DPST N.O. Momentary
APB2RGRA DPDT Momentary
—
Note: No center terminal on "M" action switches.
—
2-3, 5-6
(1-3, 4-6)
(2-1, 5-4)
D18
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967

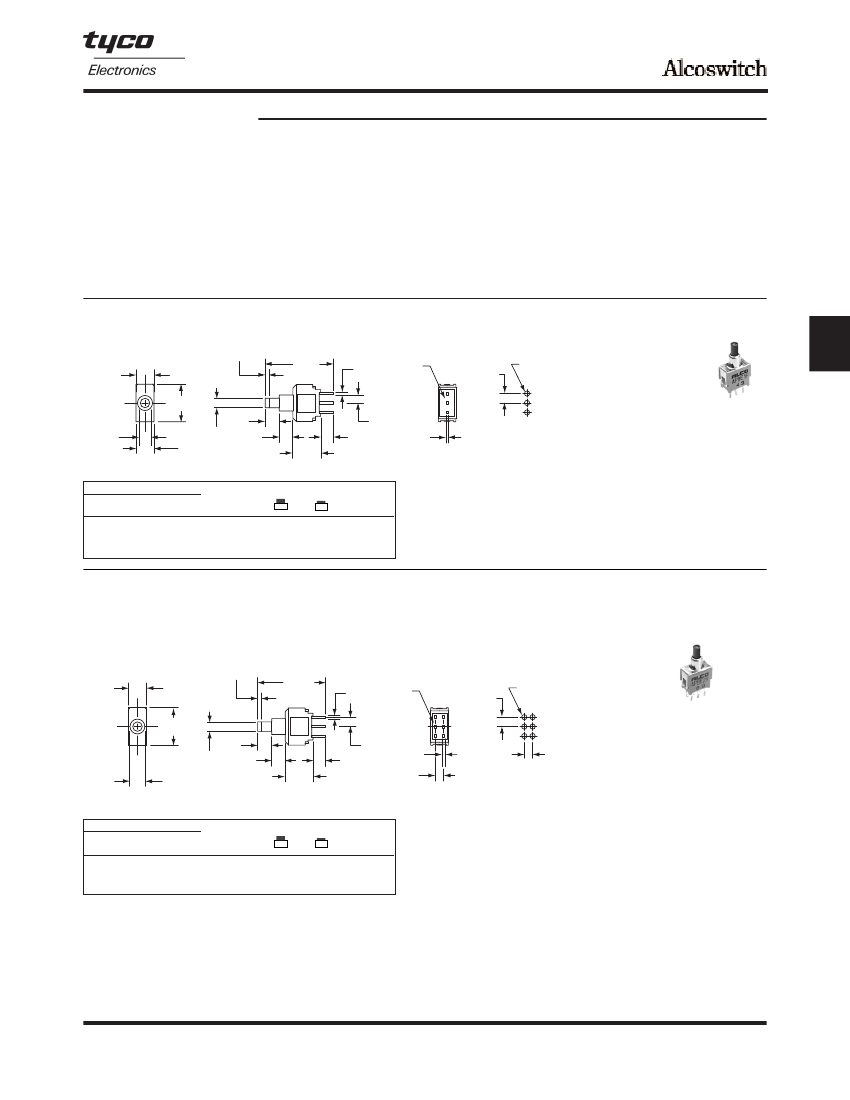

APBE Series
Pushbutton Switches, Process Sealed, .157 Actuator, Straight, Retention Terminal
MATERIAL SPECIFICATIONS:
Contacts ..................................Gold plated
Case Material ..........................Polyester
Actuator Material ....................Polyester, black
Terminals/Fixed Contacts........Copper alloy
Terminal Seal ..........................Epoxy
TYPICAL PERFORMANCE CHARACTERISTICS:
Contact Rating ........................0.4 VA Max. @ 20 VDC or peak AC
Initial Contact Resistance ........50 Milliohms max.
Insulation Resistance ..............500 Megohms @ 250 VDC min.
Dielectric Strength ..................500 Volts RMS @ sea level
Actuator Travel........................0.047" (1.19)
Life Expectancy ......................Up to 10,000 Cycles
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature............-4°F to +176°F (-20°C to +80°C)
Storage Temperature................-40°F to +176°F (-40°C to +80°C)
SPDT
.047
(1.19)
STROKE
.197
(5.00)
.374
(9.50)
.157
(4.00)
.098
(2.48)
DIA
Bushing
.157
(4.00)
DIA
.157
(4.00)
.315
(8.00)
.130
(3.30)
.098
(2.48)
Dia.
.760
(19.3)
.024
(0.61)
TYP
EPOXY
SEAL
3
2
1
.012
(0.30)
P. C. HOLE
LAYOUT
SINGLE POLE
.032
(0.81)
DIA TYP
D
APBE Series
APBE1FGPC
.100
(2.54)
TYP
.100
(2.54)
TYP
Part Number
Tyco
Alcoswitch
Electronics
1-1437567-8
APBE1FGPC
Type
SPDT
On
(On)
(2-1)
Contact Type
Gold
Terminals Connected:
2-3
(On) indicates momentary position.
Extra compact double pole saves PCB real estate.
DPDT
.047
(1.19)
STROKE
.197
(5.00)
.098
(2.48)
Dia.
.374
(9.50)
.157
(4.00)
Bushing
.157
(4.00)
DIA.
.157
(4.00)
.760
(19.3)
.024
(0.61)
TYP.
EPOXY
SEAL
.100
(2.54)
TYP.
6
5
4
3
2
1
.100
(2.54)
.032
(0.81)
DIA. TYP.
APBE2RGPC
.100
(2.54)
TYP.
.315
(8.00)
.130
(3.30)
.012
(0.30)
TYP.
.100
(2.54)
P. C. HOLE
LAYOUT
SINGLE POLE
Part Number
Tyco
Alcoswitch
Electronics
2-1437567-0
Type
Contact Type
Gold
(On)
On
DPDT
APBE2RGPC
2-3 & 5-6 (2-1 & 5-4)
Terminals Connected:
(On) indicates momentary position.
D19
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967

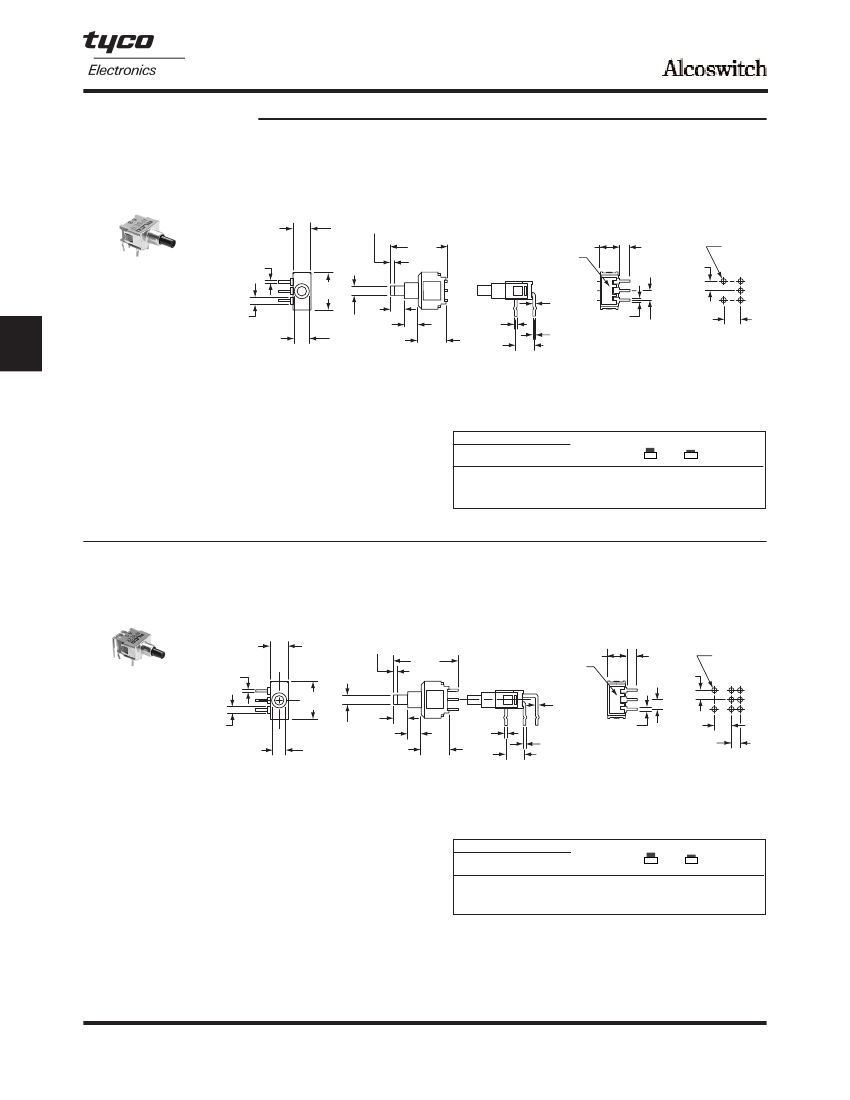

APBE Series
Pushbutton Switches, Process Sealed, .157 Actuator, Retention Terminal, Right Angle
SEE PAGE D19 FOR PRODUCT SPECIFICATIONS.
SPDT
.197
(5.00)
.028
(0.71)
TYP.
.047
(1.19)
STROKE
.098
(2.48)
Dia.
.374
(9.50)
.071
(1.80)
TYP. Bushing
.157
(4.00)
DIA.
.157
(4.00)
.157
(4.00)
.016
(0.40)
TYP.
.200
(5.08)
.657
(16.69)
.220
(5.58)
EPOXY
SEAL
3
2
1
.024
(0.61) .100
TYP. (2.54)
TYP.
.130
(3.30)
.032
(0.81)
DIA. TYP.
.100
(2.54)
TYP.
APBE1FGRA
.012
(0.30)
TYP.
.028
(0.71)
.200
(5.08)
P. C. HOLE
LAYOUT
SINGLE POLE
D
APBE Series
.315
(8.00)
Part Number
Tyco
Alcoswitch
Electronics
1-1437567-9
Type
(On)
(2-1)
Contact Type
Gold
APBE1FGRA
SPDT
On
Terminals Connected:
2-3
(On) indicates momentary position.
DPDT
Extra compact double pole
saves PCB real estate.
.197
(5.00)
.028
(0.71)
TYP.
.374
(9.50)
.071
(1.80)
TYP.
.047
(1.19)
STROKE
.098
(2.48)
DIA.
.744
(18.90)
.220
(5.58)
EPOXY
SEAL
.012
(0.30)
TYP.
.016
(0.40)
.028
(0.71)
3
2
1
.130
(3.30)
.100
(2.54)
TYP.
.032
(0.81)
DIA. TYP.
APBE2RGRA
.157
(4.00)
.157
(3.98)
DIA.
.157
(4.00)
.315
(8.00)
.200
(5.08)
.024
(0.61) .100
TYP. (2.54)
TYP
.200
(5.08)
.100
(2.54)
P. C. HOLE LAYOUT
DOUBLE POLE
Part Number
Tyco
Alcoswitch
Electronics
2-1437567-1
Type
Contact Type
Gold
APBE2RGRA
DPDT
On
(On)
Terminals Connected:
2-3 & 5-6 (2-1 & 5-4)
(On) indicates momentary position.
D20
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
京公网安备 11010802033920号
EEWORLD
