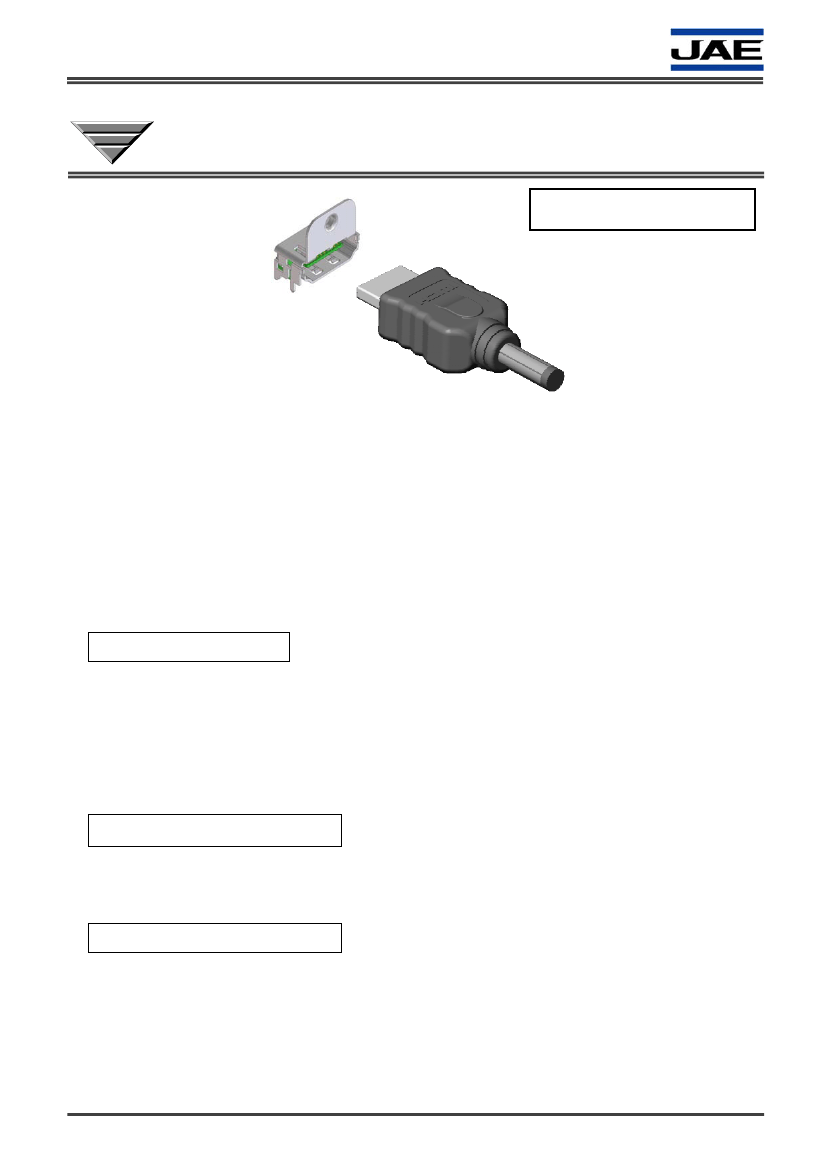

COMPONENTS PRODUCT INFORMATION
NEW
HDMI Standard Digital Interface Connector
CONNECTOR
MB-0121-2
August 2008
DC1 Series
RoHS Compliant
Recently, the market for digital consumer devices such as LCD TVs, PDP TVs, and
DVD players has been rapidly growing along with the progress of digital high-
definition television broadcasting.
The DC1 Series is a connector created specifically for use with the HDMI standard,
a next generation digital interface standard for digital consumer devices.
*HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
Features
0.1mm pitch, compact connector
Impedance-matching design for high-speed transmission
Grounding structure for excellent EMI control
Friction lock for easy insertion and removal of connector
Receptacle connector available in surface mount type and through-hole mount type
Applicable Markets
Digital television, LCD projector, Set-top box, DVD player, Blu-ray Disk
recorder, etc.
General Specifications
No. of contacts: 19 pos.
Dielectric withstanding voltage :
AC 500V rms
Contact resistance: 30m ohm max.
Operating temperature:
-20 Deg. C to +85 Deg. C
Rated voltage: 0.5A max.
Insulation resistance: 100M ohm min.
Impedance: 100 ohm ± 15%
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
1/9
MB-0121-2
Materials and Finishes
Receptacle
Component
Insulator
Contact
Shell
Material/ Finish
Heat resistant plastic
Copper alloy/ Au plating over Ni
Copper alloy/ Sn plating
Plug (for Cable harness)
Component
Insulator
Contact
Shell
Hood
Material/ Finish
Heat resistant plastic
Copper alloy/ Au plating over Ni
Copper alloy/ Sn plating
PVC/ Color: Black (UL94V-0)
Ordering Information

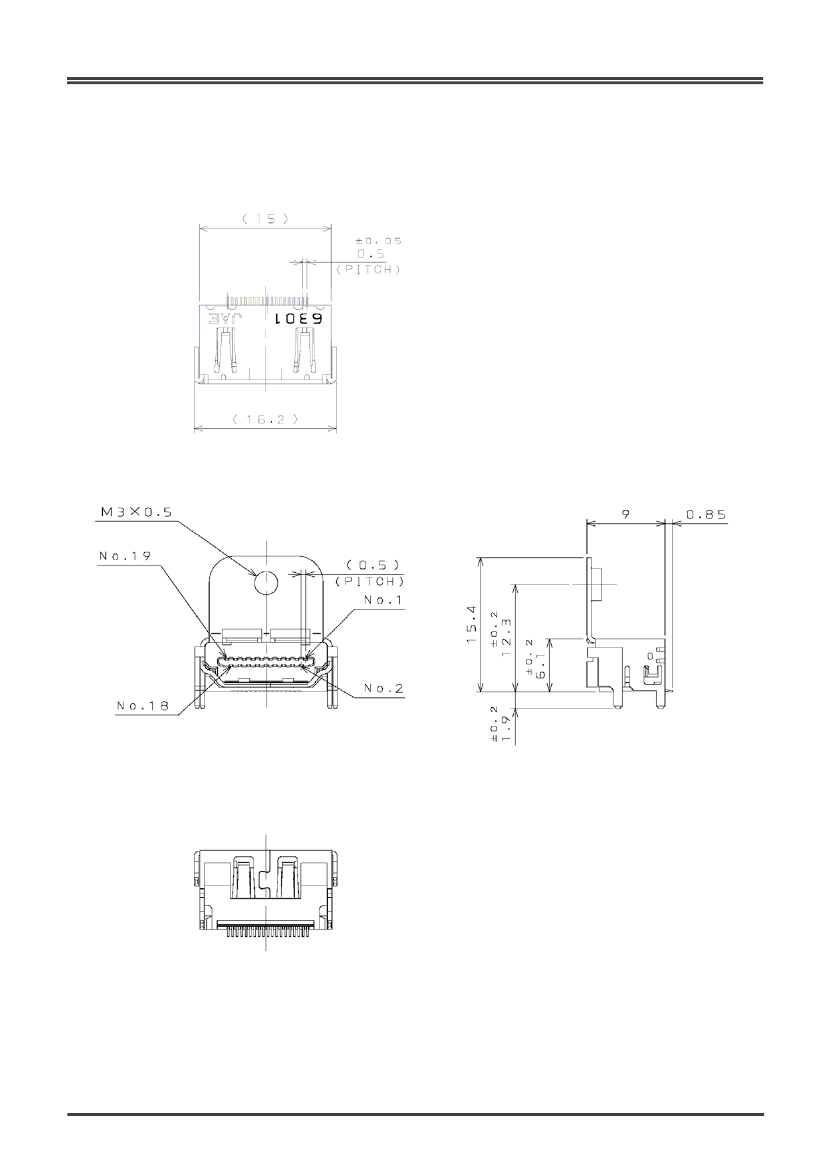

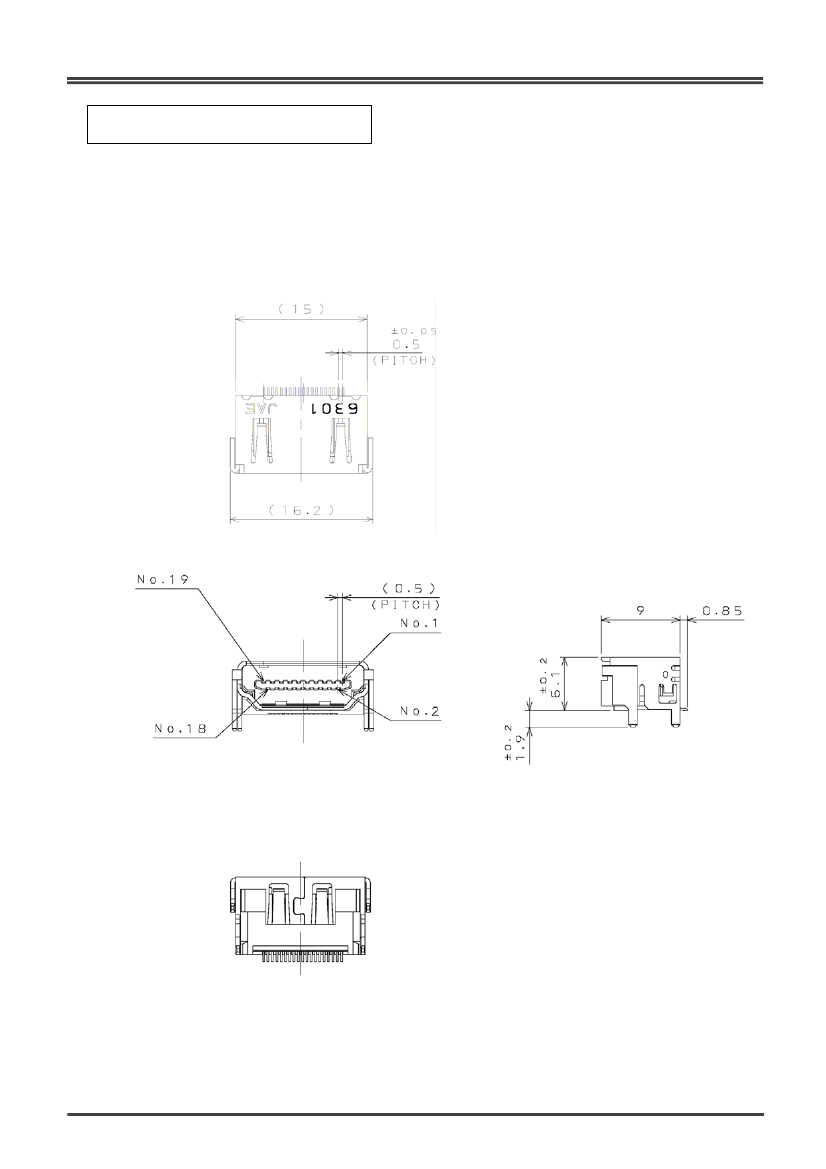

•Receptacle
DC1 R 019
Series
Receptacle side
No. of Contacts: 19 pos.
Terminal
J: SMT Angle type
W: SMT Straight type
* B * E400
Note1
E400: Emboss product
400pcs./ reel
Modification code
Plating
B: Au plating
Note 1
Please contact us concerning through-hole type.
Embossed reel is compatible with DC1R019JB1
only.
•HDMI-HDMI Cable harness
DC1P 019 S T3
Note 2
**** B
Series
Color B: Black
Cable length(cm)
0150: 150cm
0200: 200cm
0300: 300cm
0500: 500cm
Applicable cable:
T3: Twinax cable AWG30
T8: Twinax cable AWG28
Note 2
Cable specification
T3 is 150cm, 200cm, 300cm.
T8 is 500cm.
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
No. of Contacts: 19 pos.
Wiring S: Single link
2/9
MB-0121-2
•HDMI-DVI Cable harness
DC1DV2 S S T3
Note 3
**** B
Series
Color B: Black
Cable length(cm)
0150: 150cm
0200: 200cm
0300: 300cm
0500: 500cm
Applicable cable:
T3: Twinax cable AWG30
T8: Twinax cable AWG28
No. of Contacts S: 19pos.
Wiring
S: Single link
Note 3
Cable specification
T3 is 150cm, 200cm, 300cm.
T8 is 500cm.
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
3/9
