CD54HC4046AF/3 datasheet, PDF - EEWORLD Datasheet

CD54HC4046AF/3: DescriptionPHASE LOCKED LOOP, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size593KB，17 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

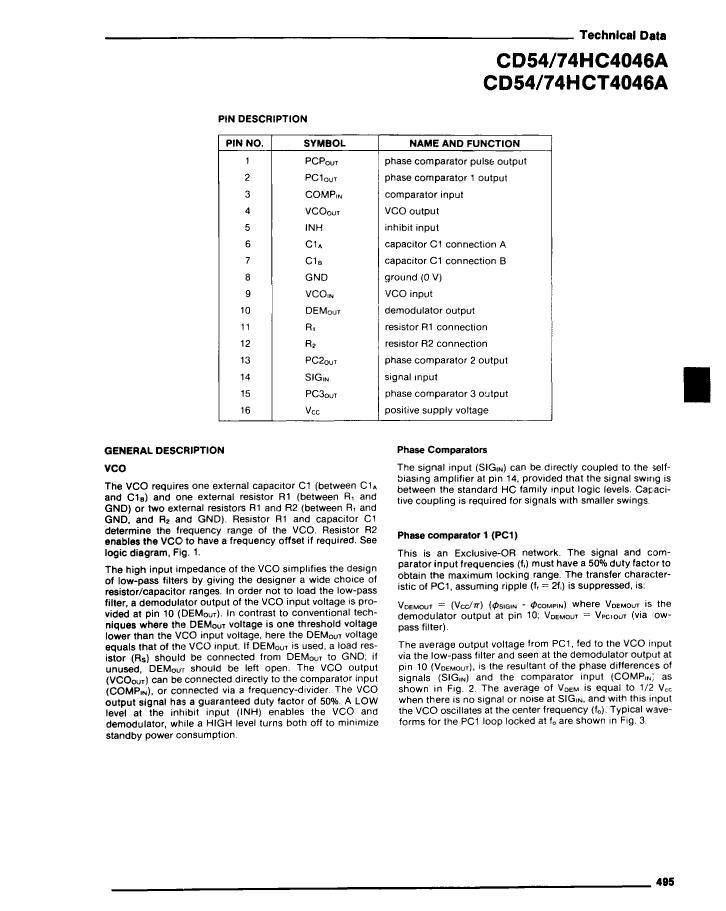

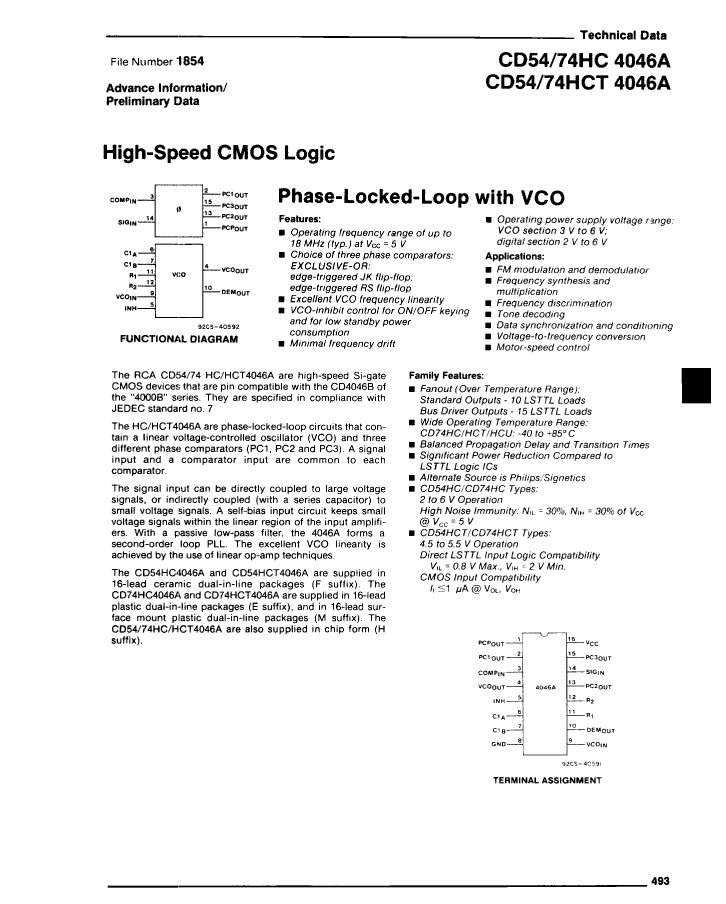

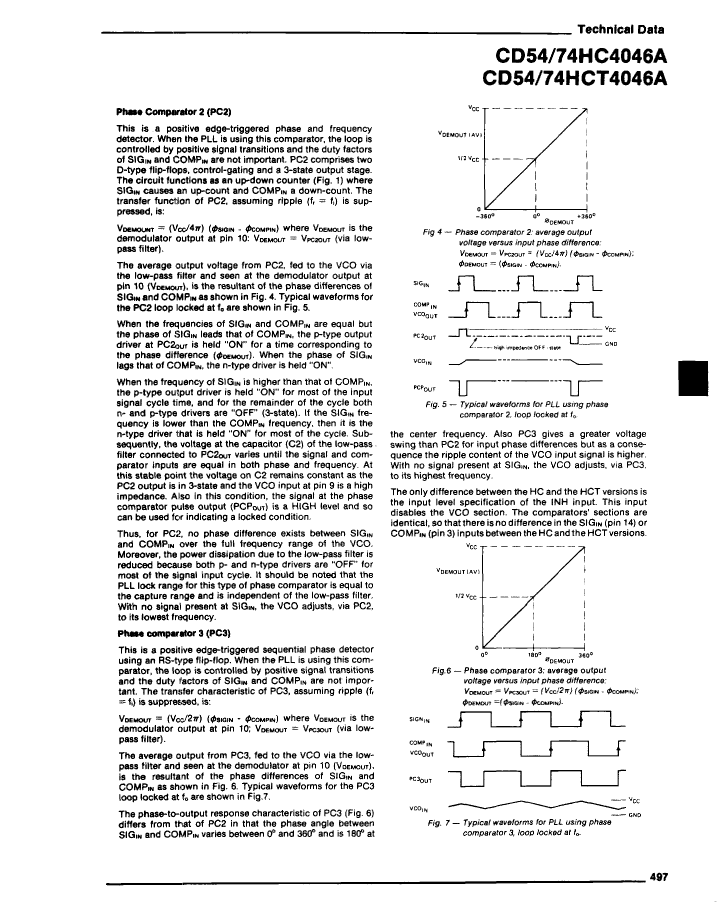

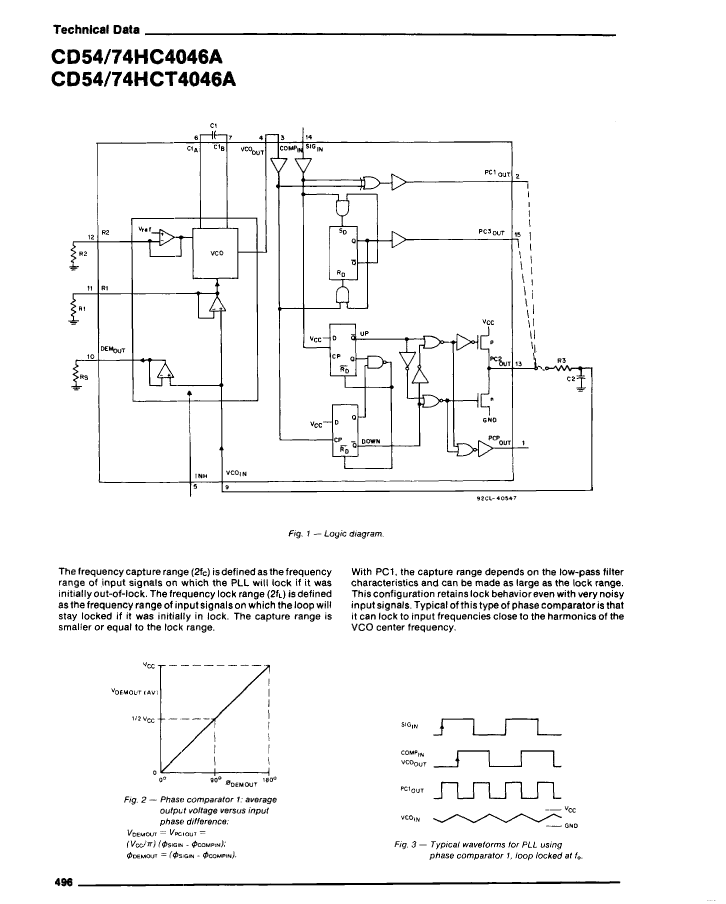

CD54HC4046AF/3 Overview

PHASE LOCKED LOOP, CDIP16

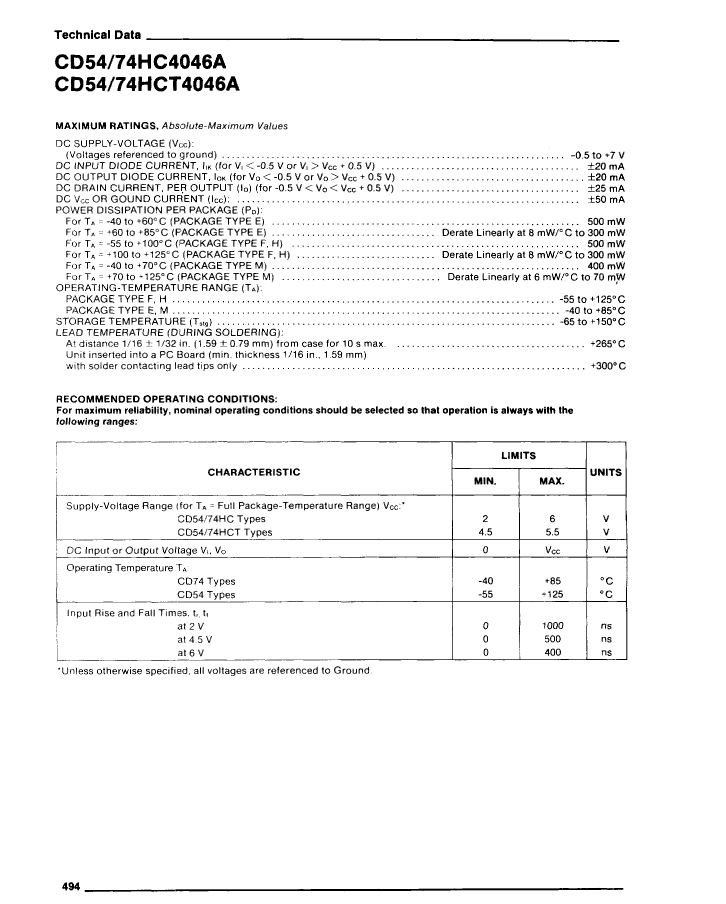

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	PHASE LOCKED LOOP
JESD-30 code	R-CDIP-T16
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
