HYM536220WG-80 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HYM536220WG-80

HYM536220WG-80: DescriptionFast Page DRAM Module, 2MX36, 80ns, CMOS, SIMM-72; Categorystorage storage; File Size208KB，9 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HYM536220WG-80 Overview

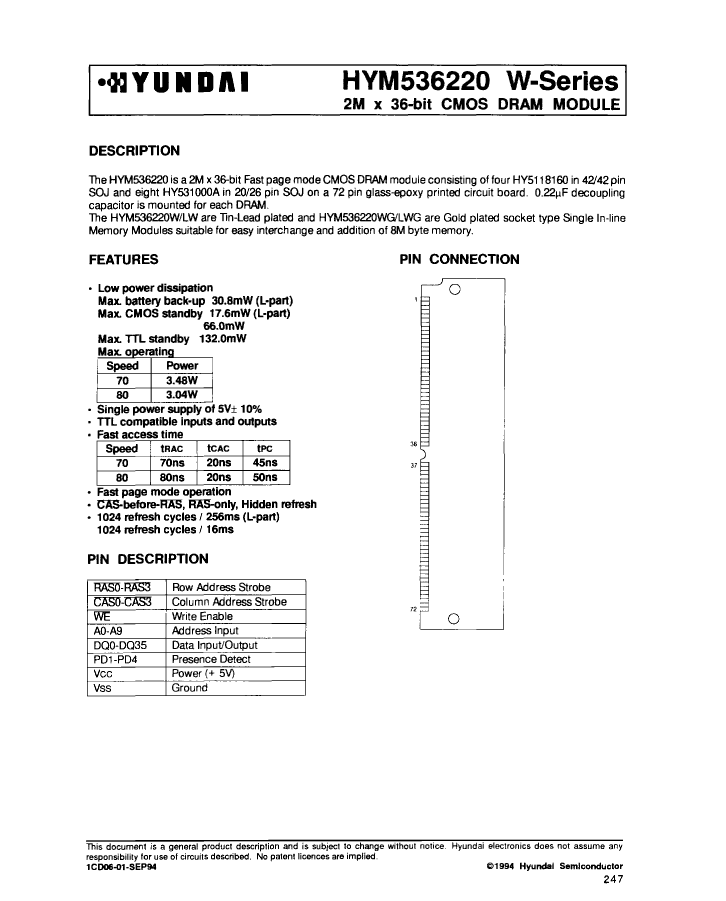

Fast Page DRAM Module, 2MX36, 80ns, CMOS, SIMM-72

HYM536220WG-80 Parametric

Parameter Name	Attribute value
Maker	SK Hynix
Parts packaging code	SIMM
package instruction	SIMM, SSIM72
Contacts	72
Reach Compliance Code	compliant
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	18
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	75497472 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	36
Number of functions	1
Number of ports	1
Number of terminals	72
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX36
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	25.4 mm
Maximum standby current	0.012 A
Maximum slew rate	0.552 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

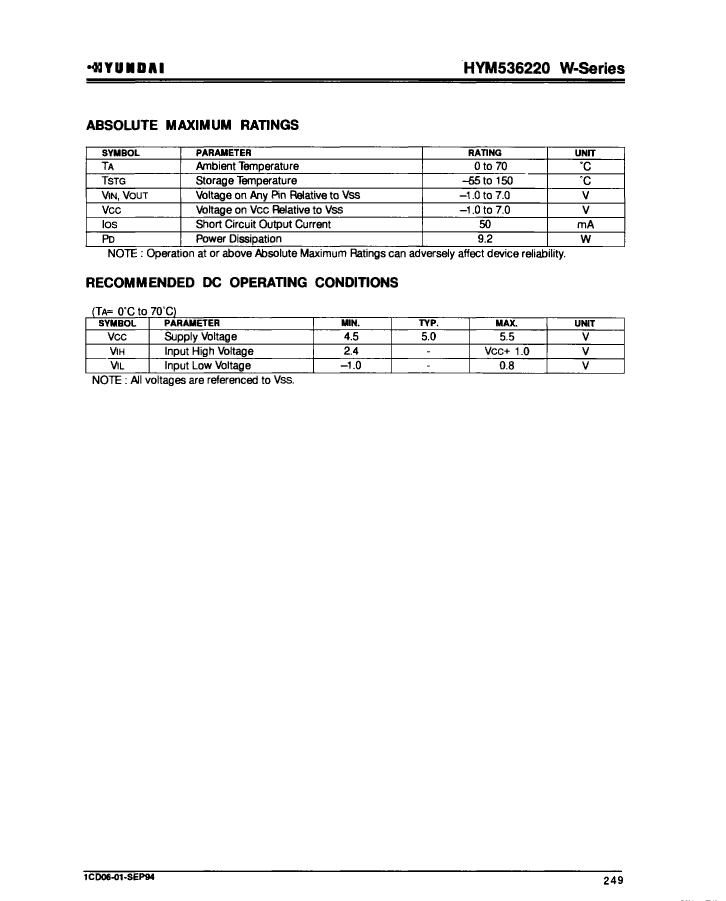

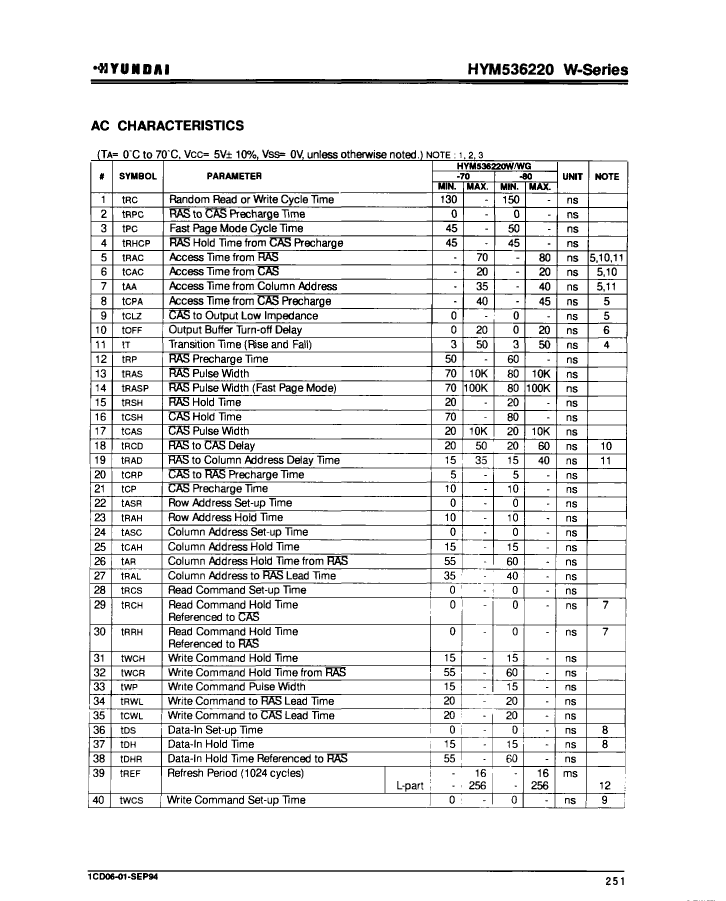

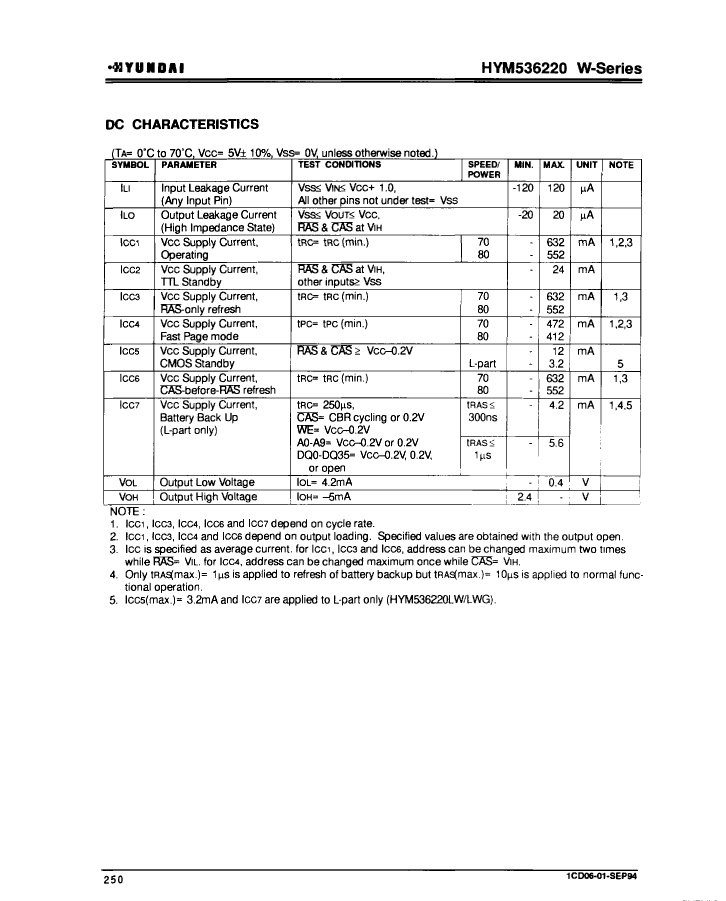

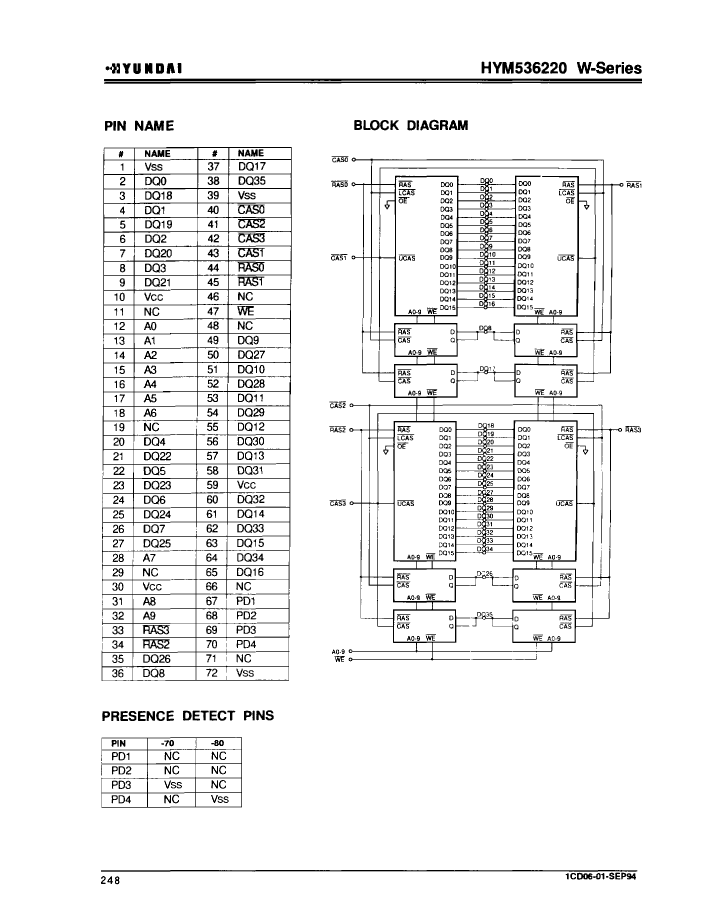

Preview

Download Datasheet

View All

HYM536220WG-80 Related Products

	HYM536220WG-80	HYM536220W-80	HYM536220LWG-70	HYM536220LWG-80	HYM536220LW-80	HYM536220WG-70
Description	Fast Page DRAM Module, 2MX36, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX36, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX36, 70ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX36, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX36, 80ns, CMOS, SIMM-72	Fast Page DRAM Module, 2MX36, 70ns, CMOS, SIMM-72
Maker	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
package instruction	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72
Contacts	72	72	72	72	72	72
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	80 ns	70 ns	80 ns	80 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	18	18	18	18	18	18
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	75497472 bit	75497472 bit	75497472 bit	75497472 bit	75497472 bi	75497472 bi
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	36	36	36	36	36	36
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX36	2MX36	2MX36	2MX36	2MX36	2MX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum seat height	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Maximum standby current	0.012 A	0.012 A	0.0032 A	0.0032 A	0.0032 A	0.012 A
Maximum slew rate	0.552 mA	0.552 mA	0.632 mA	0.552 mA	0.552 mA	0.632 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
