MAX723CSE+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MAX723CSE+

MAX723CSE+: DescriptionSwitching Regulator, Current-mode, 1A, 500kHz Switching Freq-Max, CMOS, PDSO16, 0.150 INCH, SLIM, SOIC-16; CategoryPower/power management The power supply circuit; File Size636KB，16 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX723CSE+ Overview

Switching Regulator, Current-mode, 1A, 500kHz Switching Freq-Max, CMOS, PDSO16, 0.150 INCH, SLIM, SOIC-16

MAX723CSE+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO CONTAINS AN ADDITIONAL CONTROLLER
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	CONSTANT OFF TIME
Maximum input voltage	5.5 V
Minimum input voltage	0.9 V
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	9.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	1 A
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.06 mA
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	500 kHz
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm

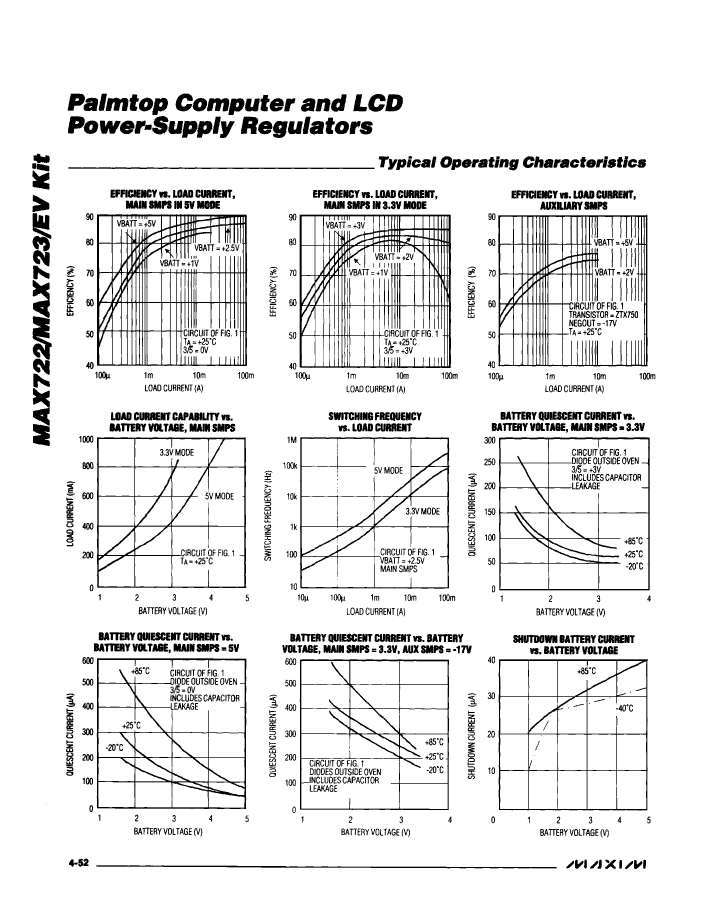

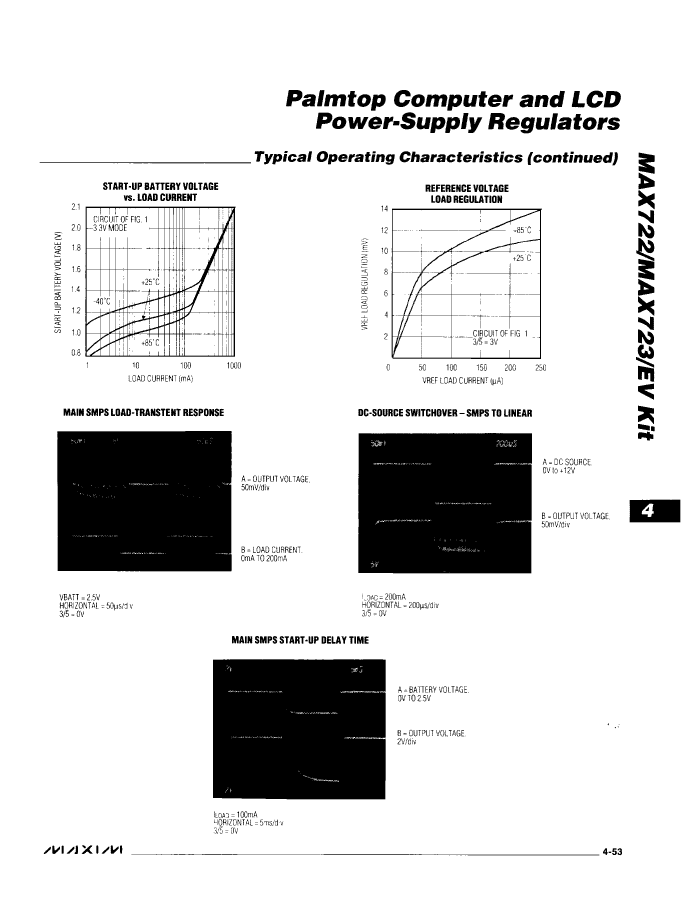

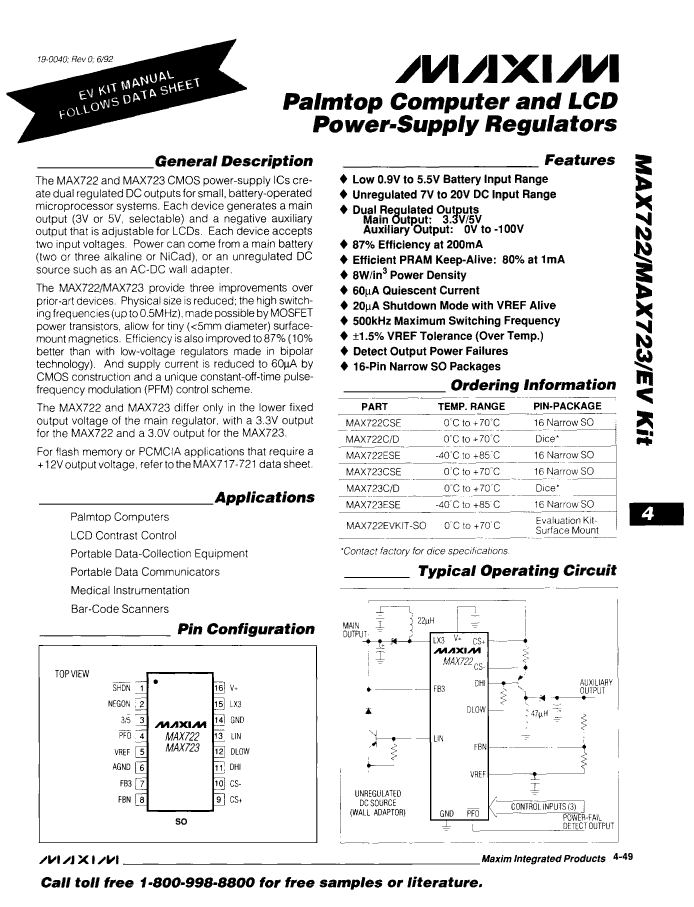

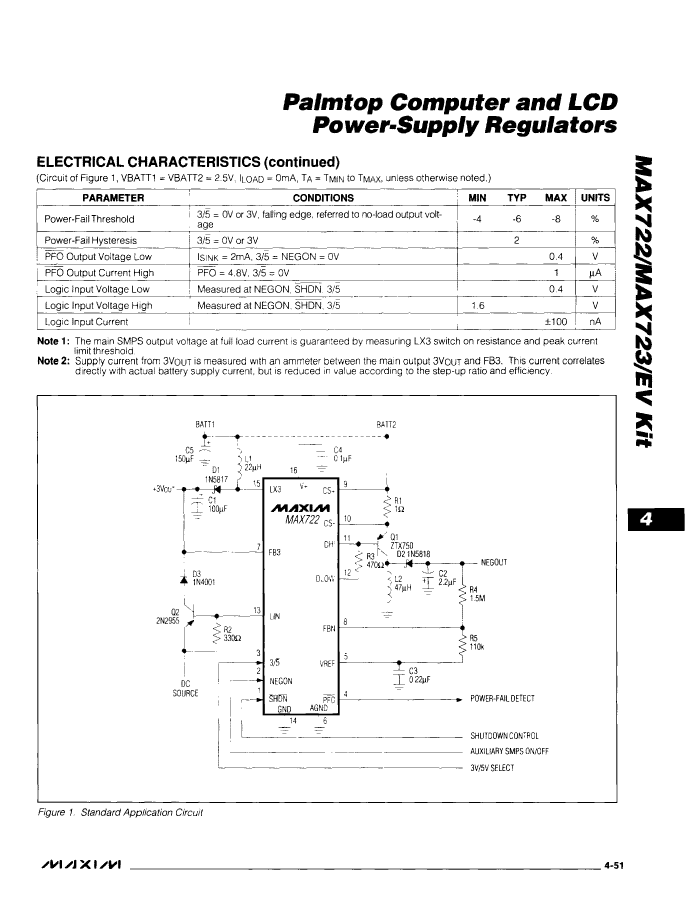

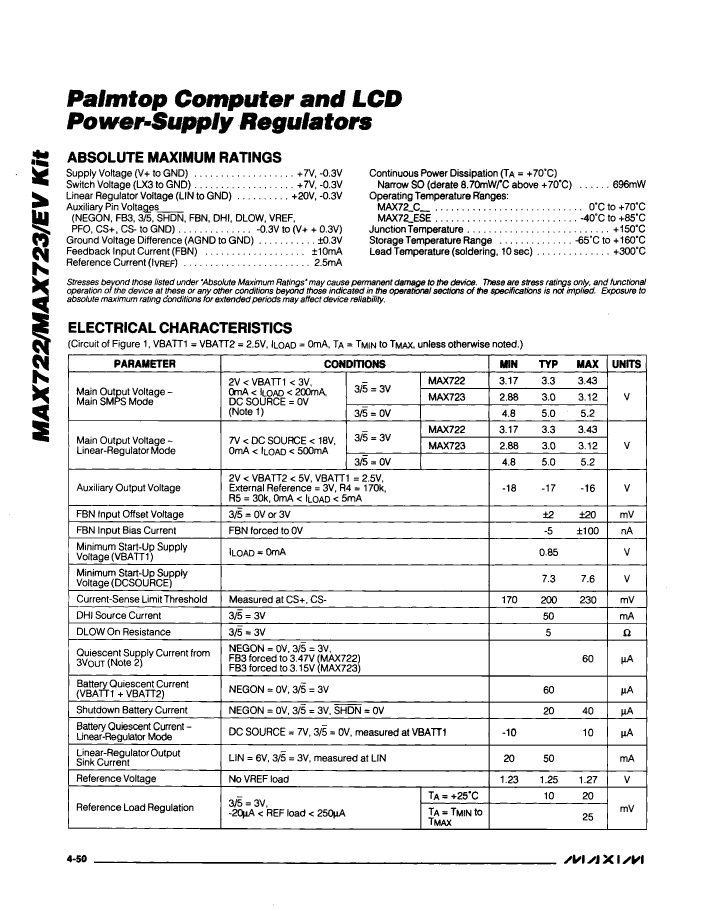

Preview

Download Datasheet

View All

MAX723CSE+ Related Products

	MAX723CSE+	310171	MAX723ESE+
Description	Switching Regulator, Current-mode, 1A, 500kHz Switching Freq-Max, CMOS, PDSO16, 0.150 INCH, SLIM, SOIC-16	fittable without loss of poles	Switching Regulator, Current-mode, 1A, 500kHz Switching Freq-Max, CMOS, PDSO16, 0.150 INCH, SLIM, SOIC-16
Is it Rohs certified?	conform to	-	conform to
Maker	Maxim	-	Maxim
Parts packaging code	SOIC	-	SOIC
package instruction	SOP,	-	SOP,
Contacts	16	-	16
Reach Compliance Code	compliant	-	compliant
ECCN code	EAR99	-	EAR99
Other features	ALSO CONTAINS AN ADDITIONAL CONTROLLER	-	ALSO CONTAINS AN ADDITIONAL CONTROLLER
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	-	SWITCHING REGULATOR
control mode	CURRENT-MODE	-	CURRENT-MODE
Control Technology	CONSTANT OFF TIME	-	CONSTANT OFF TIME
Maximum input voltage	5.5 V	-	5.5 V
Minimum input voltage	0.9 V	-	0.9 V
JESD-30 code	R-PDSO-G16	-	R-PDSO-G16
JESD-609 code	e3	-	e3
length	9.9 mm	-	9.9 mm
Humidity sensitivity level	1	-	1
Number of functions	1	-	1
Number of terminals	16	-	16
Maximum operating temperature	70 °C	-	85 °C
Maximum output current	1 A	-	1 A
Nominal output voltage	5 V	-	5 V
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	-	SOP
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	-	260
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	1.75 mm	-	1.75 mm
Maximum supply current (Isup)	0.06 mA	-	0.06 mA
surface mount	YES	-	YES
Switch configuration	BOOST	-	BOOST
Maximum switching frequency	500 kHz	-	500 kHz
technology	CMOS	-	CMOS
Temperature level	COMMERCIAL	-	INDUSTRIAL
Terminal surface	MATTE TIN	-	MATTE TIN
Terminal form	GULL WING	-	GULL WING
Terminal pitch	1.27 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	3.9 mm	-	3.9 mm
