BK/GMD-1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/GMD-1A

BK/GMD-1A: DescriptionElectric Fuse, Time Delay Blow, 1A, 250VAC, 32VDC, 35A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size72KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK/GMD-1A Overview

Electric Fuse, Time Delay Blow, 1A, 250VAC, 32VDC, 35A (IR), Inline/holder,

BK/GMD-1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT
Fusing characteristics	TIME DELAY
body height	20.02 mm
Body length or diameter	5 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
method of packing	BULK
physical size	5mm x 20.02mm
Rated breaking capacity	35 A
Rated current	1 A
Rated voltage (AC)	250 V
Rated voltage (DC)	32 V
Guideline	CE
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

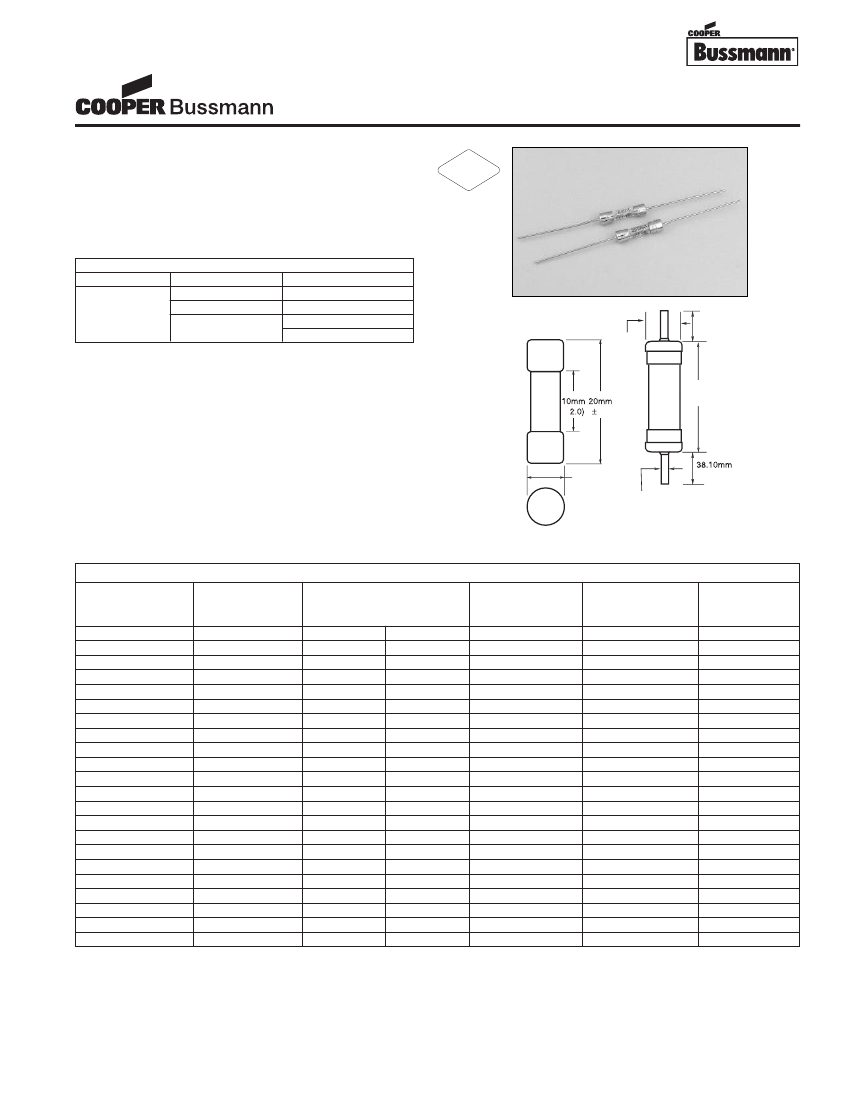

5mm x 20mm Fuses

GMD Series, Time Delay, Glass Tube

Description

• Time delay, low breaking capacity

• Optional axial leads available

• 5mm x 20mm physical size

• Glass tube, nickel-plated brass endcap construction

• Designed to UL/CSA 248-14

ELECTRICAL CHARACTERISTICS

Rated Current % of Amp Rating

Opening Time

100%

None

135%

60 minutes maximum

100mA - 4A

5 seconds minimum

200%

2 minutes maximum

RoHS

2002/95/EC

Dimensions

⁄

(inches)

5.54mm

(±.20)

38.10mm

(±.38)

Agency Information

• UL Listed, Guide JDYX, File E19180, 125mA-3A

• UL Recognition Card: (4A) Guide JDYX2, File E19180

• CSA Certified, Class 1422-01, File E65063

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. GMD-3-R)

21.10mm

(±.81)

(±

( 0.5)

5.2mm

(+0.1/-0.2)

0.65mm

(REF)

(±.38)

• With TR2 packaging code, lead wire length is 19.05mm

SPECIFICATIONS

Product Code

GMD-125mA

GMD-150mA

GMD-200mA

GMD-250mA

GMD-300mA

GMD-315mA

GMD-375mA

GMD-400mA

GMD-500mA

GMD-600mA

GMD-630mA

GMD-750mA

GMD-800mA

GMD-1A

GMD-1.2A

GMD-1.25A

GMD-1.5A

GMD-1.6A

GMD-2A

GMD-2.5A

GMD-3A

GMD-4A

†

‡

Voltage

Rating

250V

AC Interrupting

Rating*

250V

125V

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

200A

10,000A

Typical DC Cold

Resistance

(ohms)**

Typical

Pre-Arc I

AC†

0.043

0.046

0.20

0.40

0.65

0.89

1.2

1.4

3.1

4.7

6.6

145

300

Maximum

Voltage

Drop (mV)‡

1600

1200

1100

950

800

750

650

600

550

450

410

380

310

280

245

240

220

200

195

190

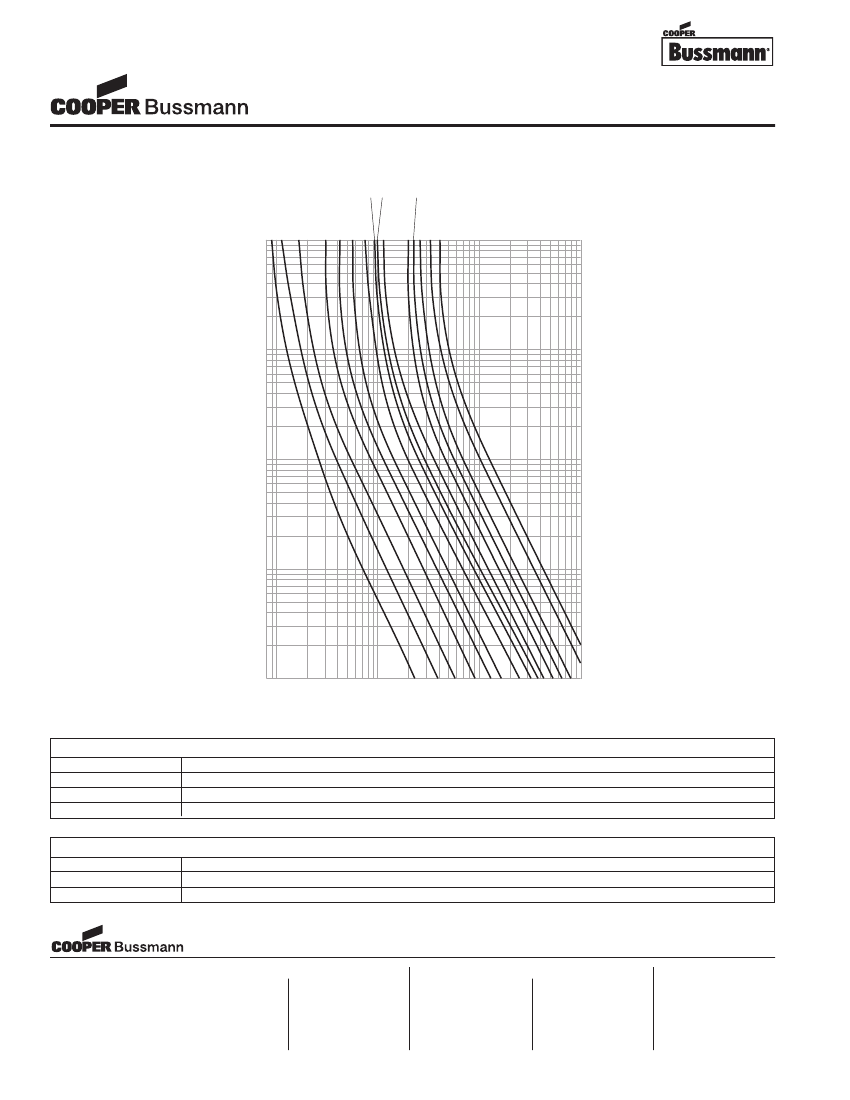

Interrupting ratings: Interrupting ratings for 125mA - 3A were measured at 70% - 80% power factor on AC. The interrupting ratings for 4A were measured at 100% power factor on AC.

DC Cold Resistance (Measured at <10% of rated current)

Typical Pre-Arching I

t (I

t was measured at listed interrupting rating and rated voltage)

Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)
