GD74LS26J

Description
NAND Gate, TTL, CDIP14,
Categorylogic    logic
File Size102KB,2 Pages
ManufacturerLG Semicon Co., Ltd.
Download Datasheet Parametric Compare View All

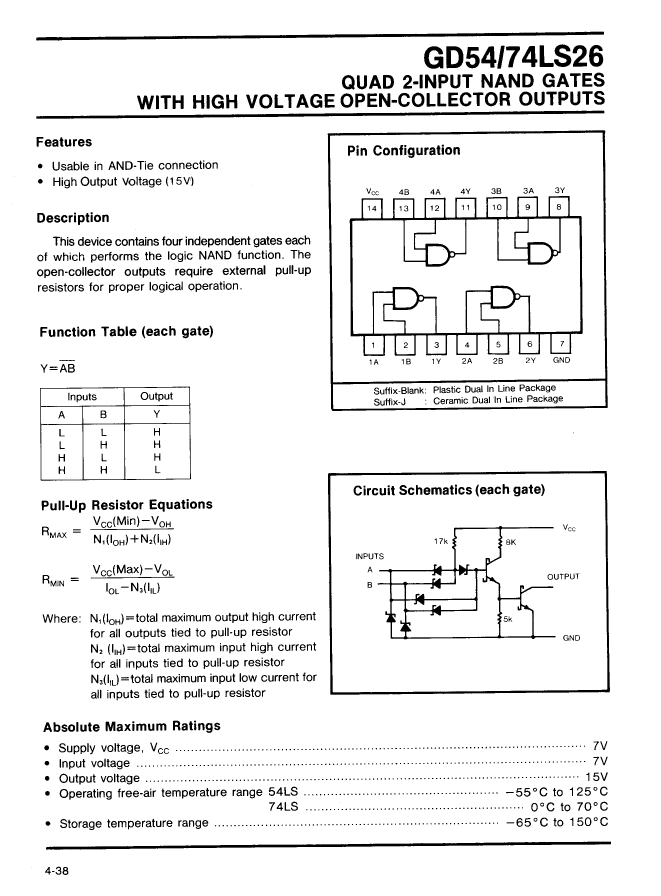

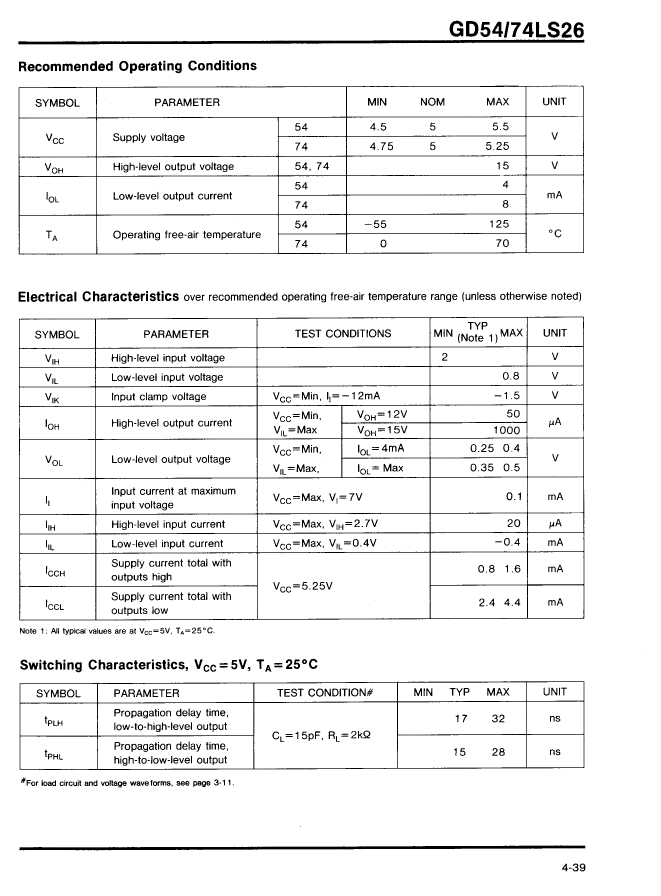

GD74LS26J Overview

NAND Gate, TTL, CDIP14,

GD74LS26J Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerLG Semicon Co., Ltd.
package instructionDIP, DIP14,.3
Reach Compliance Codeunknown
JESD-30 codeR-XDIP-T14
JESD-609 codee0
Logic integrated circuit typeNAND GATE
MaximumI(ol)0.008 A
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristicsOPEN-COLLECTOR
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Maximum supply current (ICC)4.4 mA
Prop。Delay @ Nom-Sup32 ns
Certification statusNot Qualified
Schmitt triggerNO
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

GD74LS26J Related Products

GD74LS26J GD54LS26J GD74LS26
Description NAND Gate, TTL, CDIP14, NAND Gate, TTL, CDIP14, NAND Gate, TTL, PDIP14,
Is it Rohs certified? incompatible incompatible incompatible
package instruction DIP, DIP14,.3 DIP, DIP14,.3 DIP, DIP14,.3
Reach Compliance Code unknown unknown unknown
JESD-30 code R-XDIP-T14 R-XDIP-T14 R-PDIP-T14
JESD-609 code e0 e0 e0
Logic integrated circuit type NAND GATE NAND GATE NAND GATE
MaximumI(ol) 0.008 A 0.004 A 0.008 A
Number of terminals 14 14 14
Maximum operating temperature 70 °C 125 °C 70 °C
Output characteristics OPEN-COLLECTOR OPEN-COLLECTOR OPEN-COLLECTOR
Package body material CERAMIC CERAMIC PLASTIC/EPOXY
encapsulated code DIP DIP DIP
Encapsulate equivalent code DIP14,.3 DIP14,.3 DIP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE
power supply 5 V 5 V 5 V
Maximum supply current (ICC) 4.4 mA 4.4 mA 4.4 mA
Prop。Delay @ Nom-Sup 32 ns 32 ns 32 ns
Certification status Not Qualified Not Qualified Not Qualified
Schmitt trigger NO NO NO
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount NO NO NO
technology TTL TTL TTL
Temperature level COMMERCIAL MILITARY COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL
Maker LG Semicon Co., Ltd. - LG Semicon Co., Ltd.
