GD74LS17J datasheet, PDF - EEWORLD Datasheet

GD74LS17J: DescriptionBuffer, LS Series, 6-Func, 1-Input, TTL, CDIP14,; Categorylogic logic; File Size45KB，2 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

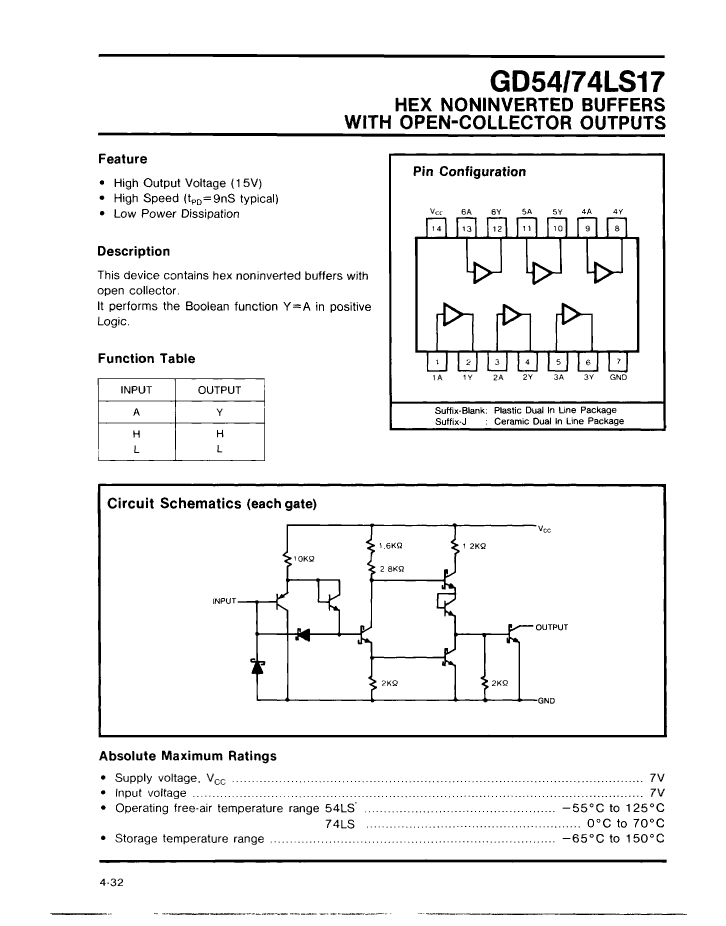

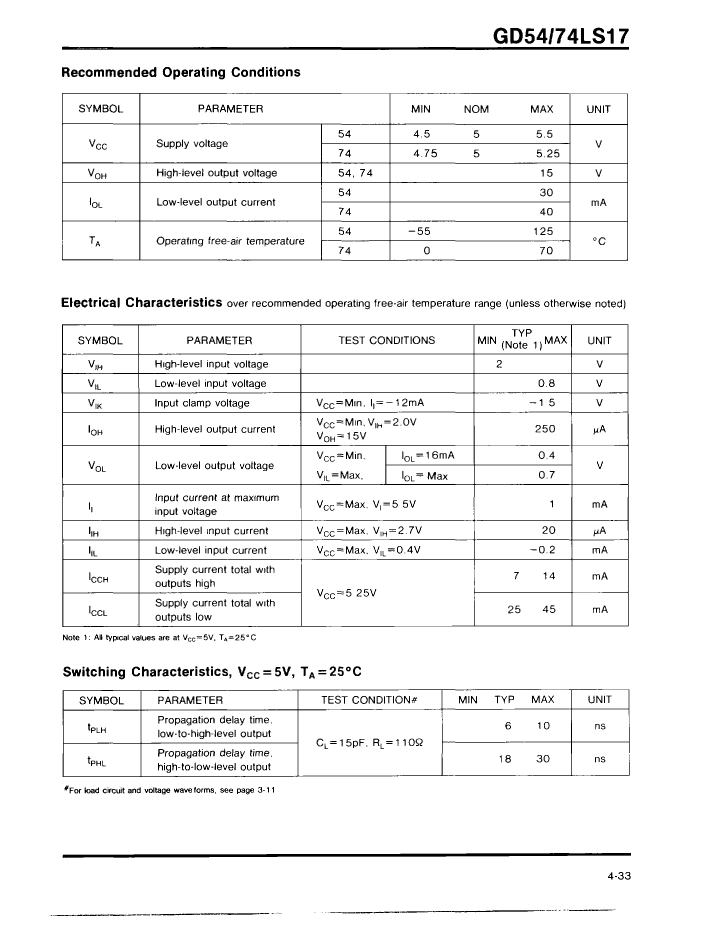

GD74LS17J Overview

Buffer, LS Series, 6-Func, 1-Input, TTL, CDIP14,

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	15 pF
Logic integrated circuit type	BUFFER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	45 mA
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	GD74LS17J	GD54LS17	GD54LS17J	GD74LS17
Description	Buffer, LS Series, 6-Func, 1-Input, TTL, CDIP14,	Buffer, LS Series, 6-Func, 1-Input, TTL, PDIP14,	Buffer, LS Series, 6-Func, 1-Input, TTL, CDIP14,	Buffer, LS Series, 6-Func, 1-Input, TTL, PDIP14,
Maker	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.
Reach Compliance Code	unknown	unknow	unknow	unknow
series	LS	LS	LS	LS
JESD-30 code	R-CDIP-T14	R-PDIP-T14	R-CDIP-T14	R-PDIP-T14
Load capacitance (CL)	15 pF	15 pF	15 pF	15 pF
Logic integrated circuit type	BUFFER	BUFFER	BUFFER	BUFFER
Number of functions	6	6	6	6
Number of entries	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	45 mA	45 mA	45 mA	45 mA
propagation delay (tpd)	30 ns	30 ns	30 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
