L835/2GDT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L835/2GDT

L835/2GDT: DescriptionSINGLE COLOR LED, GREEN, 10 mm, ROHS COMPLIANT PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size142KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L835/2GDT Overview

SINGLE COLOR LED, GREEN, 10 mm, ROHS COMPLIANT PACKAGE-4

L835/2GDT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown
Other features	IC COMPATIBLE
color	GREEN
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.025 A
Lens type	DIFFUSED
Nominal luminous intensity	5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8 mm
method of packing	BULK
peak wavelength	565 nm
shape	RECTANGULAR
size	10 mm
surface mount	NO
Terminal surface	NOT SPECIFIED
Terminal pitch	2.54 mm
perspective	120 deg

Preview

Download Datasheet

View All

5mmx10mm LIGHT BARS

L835/2IDT HIGH EFFICIENCY RED L835/2GDT GREEN

L835/2SRDT SUPER BRIGHT RED L835/2YDT YELLOW

Features

UNIFORM

EASILY

Description

LIGHT EMITTING AREA.

The High Efficiency Red source color devices are made with

Gallium Arsenide Phosphide on Gallium Phosphide Orange

Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

MOUNTED ON P.C. BOARDS OR

MOUNTABLE.

ON/OFF CONTRAST.

RUGGED.

INDUSTRY STANDARD SOCKETS.

FLUSH

EXCELLENT

CAN

BE USED WITH PANELS AND LEGEND MOUNTS.

MECHANICALLY

I.C.

COMPATIBLE.

BRIGHT RED AVAILABLE.

SURFACE OF EPOXY IS NOT FLAT.

SUPER

BOTTOM

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0828

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: NOV/18/2001

DRAWN: R.X.Jin

PAGE: 1 OF 5

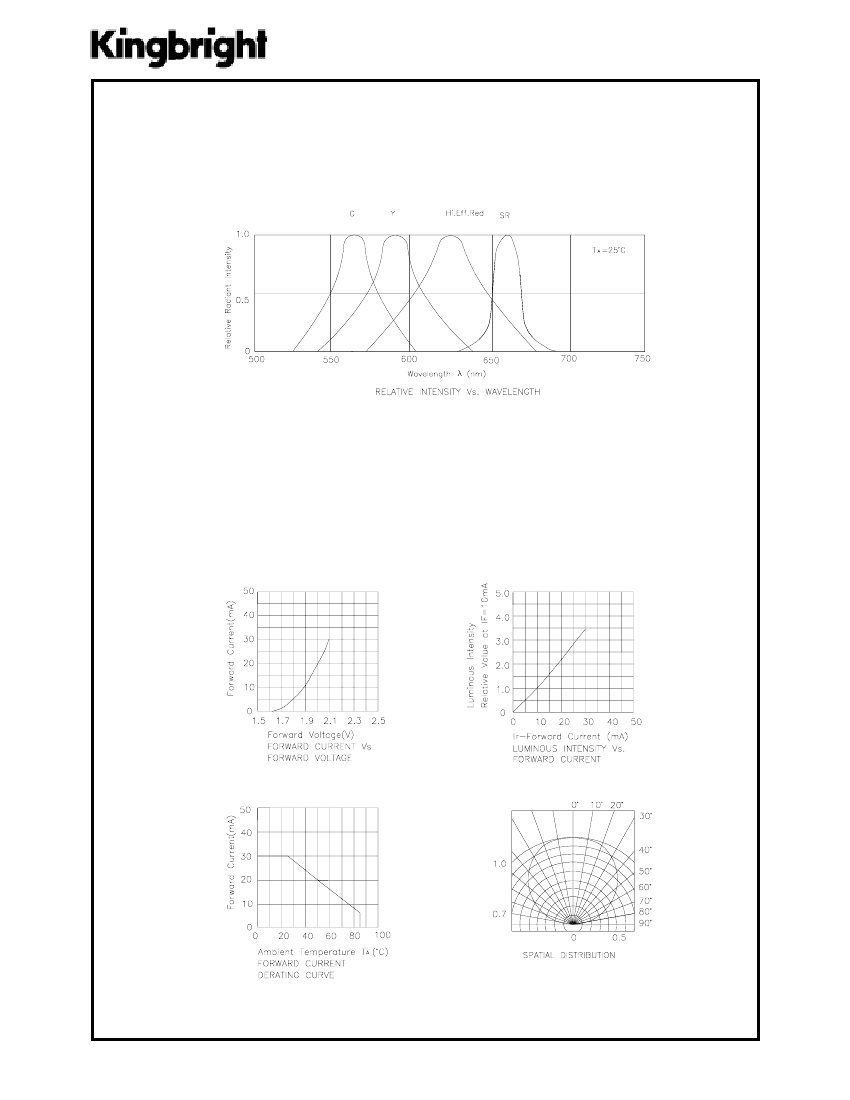

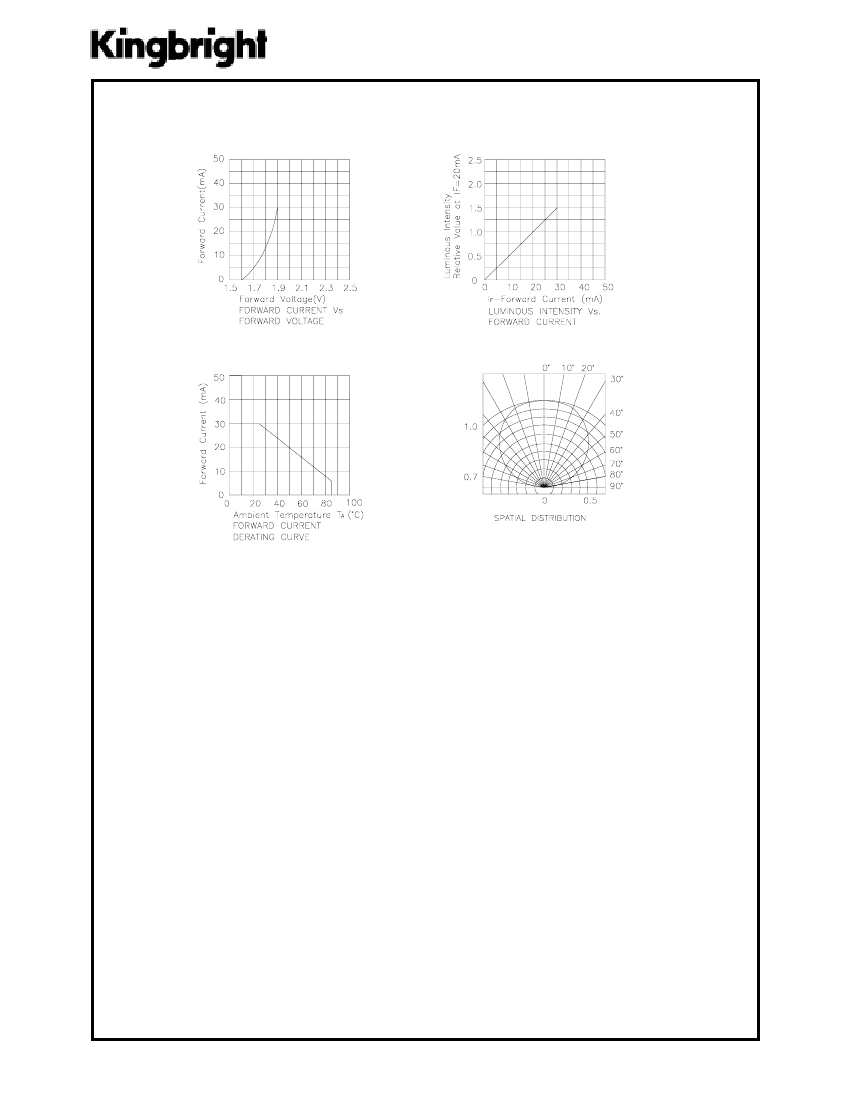

L835/2GDT Related Products

	L835/2GDT	L835/2YDT	L835/2IDT	L835/2SRDT
Description	SINGLE COLOR LED, GREEN, 10 mm, ROHS COMPLIANT PACKAGE-4	SINGLE COLOR LED, YELLOW, 10 mm, 5 X 10 MM, ROHS COMPLIANT PACKAGE-4	SINGLE COLOR LED, HIGH EFFICIENCY RED, 10 mm, 5MM X 10MM, ROHS COMPLIANT PACKAGE- 4	SINGLE COLOR LED, SUPER BRIGHT RED, 10 mm, ROHS COMPLIANT PACKAGE-4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-4	5 X 10 MM, ROHS COMPLIANT PACKAGE-4	5MM X 10MM, ROHS COMPLIANT PACKAGE- 4	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	GREEN	YELLOW	HIGH EFFICIENCY RED	SUPER BRIGHT RED
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.025 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED RED	DIFFUSED RED
Nominal luminous intensity	5.0 mcd	10.0 mcd	10.0 mcd	60.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8 mm	8 mm	8 mm	8 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	565 nm	590 nm	627 nm	660 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	10 mm	10 mm	10 mm	10 mm
surface mount	NO	NO	NO	NO
Terminal surface	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	120 deg	120 deg	120 deg	120 deg
Maker	Kingbright	Kingbright	-	Kingbright
