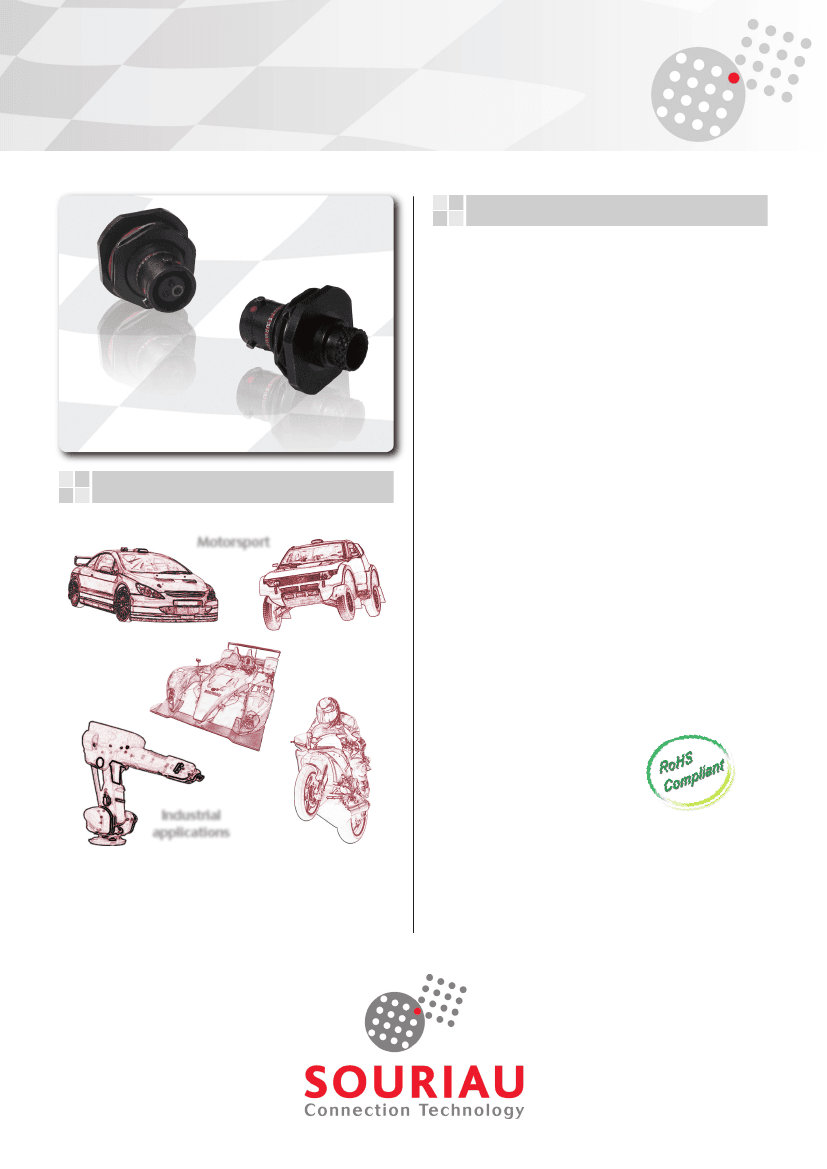

8STA Jam nut receptacle - shell size 04
Benefits
The widest offer in miniature circular connectors
• Jam nut
version in addition to In-line & oval receptacles
available in all 3 layouts
Quicker & easier to install
• One hole
to drill in panel instead of three
•
No nut plate required
•
No gasket required
A lightweight connector
Ideal for areas where space is a premium
•
Miniaturization
Excellent resistance to racing fuels & fluids
Applications
Motorsport
• Viton®
interfacial seal (Fuel tank version - specification
022)
Colour bands make identification easy
•
5
visual
keyway orientations
Ideal for indoor / outdoor applications
•
IP67
sealing level
Cost effective & lightweight connector
• Integrated backshell for Heat shrink boots
F1, GP2, WRC,
Moto GP,
LMS/ALMS,
Superbike, IRL etc.
High resistance to vibrations & shocks
• Ruggedized aluminium body
Rapid & secure locking system with audible
click
• Bayonet connector
RoHS compliant
Industrial
applications
8STA Jam nut receptacle shell size 04 connectors can be
used in motorsport applications - Formula 1, GP2, WRC,
LMS/ALMS, Moto GP, Superbike, IRL etc. - as well as indus-
trial applications.
All applications where space & weight reduction is a primary
objective.
•
Respect for environment
SOURIAU’s Offer
•
Available in 3 layouts: 04-05, 04-35, 04-06
8STA Jam nut receptacle - shell size 04
Technical characteristics
Mechanical
•
Durability
•
Vibration resistance
•
Shock resistance
•
Contact retention
Electrical
•
Test voltage
•
Contact resistance
•
Insulation resistance
•
Contact rating
•
Shell continuity
500 matings & unmatings
1
47m/s
2
, 10 to 2000 Hz
300 g for 3 ms
and MIL-S-901 / Grade 1
35 N - size 26
45 N - size 22
Environmental
•
Operating temperature -55°C to + 1
75°C
•
Sealing (mated)
IP67
(1 metre -30 minutes min.)
•
Salt spray resistance 48 hours
Material
•
Shell
•
Shell plating
•
Insulator
•
Grommet and seal
•
Contact
•
Contact plating
•
RoHS compliant
Aluminium alloy
Conductive black zinc
Thermoplastic
Liquid silicone rubber
Copper alloy
Gold
400 Vrms - size 26
1000 Vrms - size 22
<16 mΩ - size 26
<1
4.6 mΩ - size 22
400 Vdc: >5000 MΩ - size 26
500 Vdc: >5000 MΩ - size 22
3 A - size 26
5 A - size 22
<60 mΩ
Ordering information
Type
Shell style
0
Oval flange
1
In-line receptacle
2
Oval flange receptacle for PCB contacts
6
Plug
7
Jam nut receptacle -
NEW !
04
05, 35, 06 - see blow
8STA
7
04
05
P
N
022
Shell size
Layout
Type of contact P
: Pin
S:
Socket
Orientation
N:
Red /
A:
Yellow /
B:
Blue /
C:
Orange /
D:
Green /
U:
Universal
Specifications
-
: Standard version
022:
Fuel tank version
Contact arrangements
Size 04
04-05
04-35
04-06
Contacts :
5 #26
Contacts :
3 #22D
Contacts :
6 #26

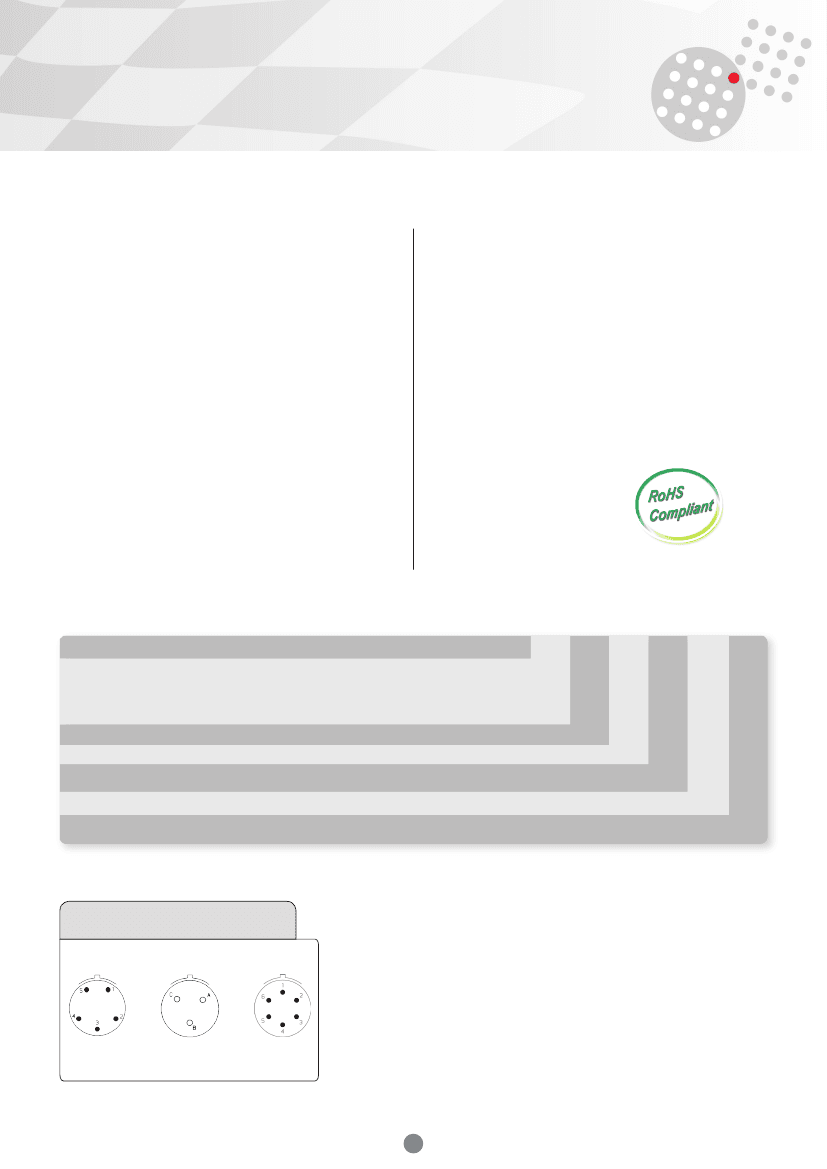

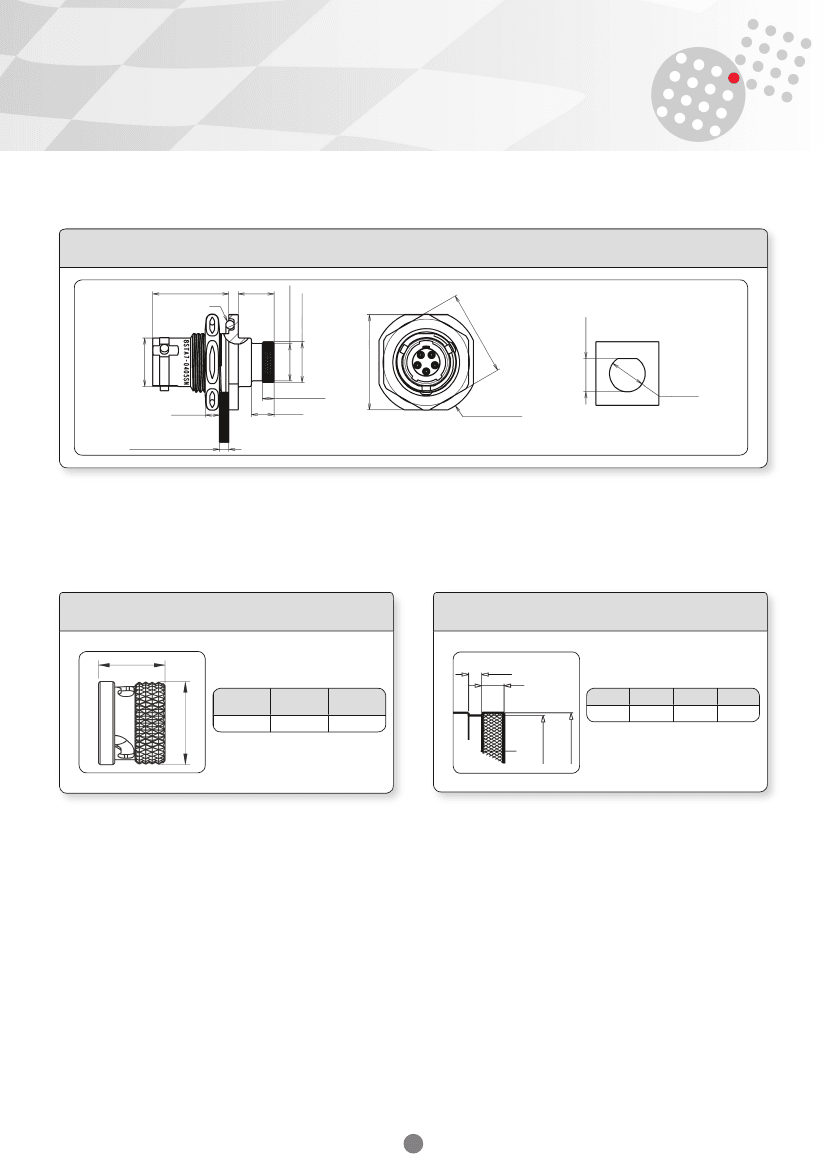

8STA Jam nut receptacle - shell size 04
Presentation
Jam nut receptacle
Ø8.4 - 8.6
O’ring
Ø7.65 - 8.05
16 - 16.2
7.5 - 7.7
Panel Cut out
1
2.8 - 1
3.0
9.8 - 10.2
20.2 max
2.35 - 2.75
2.9 - 3.1
4.6 - 5.0
Ø22.5 max
Ø1
±0.1
3.5
Panel thickness: 1.5 to 5.0
As for contacts, please refer to the section 8STA size 04 in the 8STA catalogue.
Accessories
Metal protective cap
B
Shrinkable termination detail
D
C
ØA max.
Part
number
8STA904
Ø A max.
1
3.50
B max.
ØA
Over knurl
10.80
ØB
ØA
8.65
Ø B
±0.05
8.00
C
±0.05
2.70
D
±0.05
2.30
For further information, visit our website
www.motorsport-connectors.com
or contact us at
contactindustry@souriau.com
Note : all dimensions are in mm
