MK48S80X-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MK48S80X-15

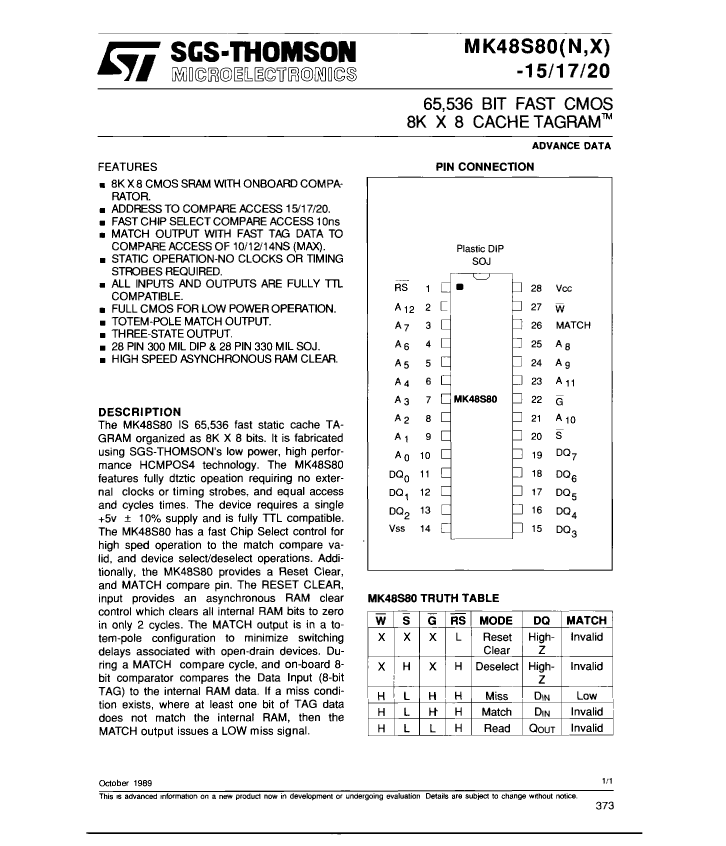

MK48S80X-15: Description8KX8 CACHE TAG SRAM, 15ns, PDSO28, 0.330 INCH, SOJ-28; Categorystorage storage; File Size39KB，1 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

MK48S80X-15 Overview

8KX8 CACHE TAG SRAM, 15ns, PDSO28, 0.330 INCH, SOJ-28

MK48S80X-15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	28
Reach Compliance Code	unknown
Maximum access time	15 ns
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
memory density	65536 bit
Memory IC Type	CACHE TAG SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

MK48S80X-15 Related Products

	MK48S80X-15	MK48S80X-20	MK48S80N-20	MK48S80N-15	MK48S80N-17	MK48S80X-17
Description	8KX8 CACHE TAG SRAM, 15ns, PDSO28, 0.330 INCH, SOJ-28	8KX8 CACHE TAG SRAM, 20ns, PDSO28, 0.330 INCH, SOJ-28	8KX8 CACHE TAG SRAM, 20ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	8KX8 CACHE TAG SRAM, 15ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	8KX8 CACHE TAG SRAM, 17ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	8KX8 CACHE TAG SRAM, 17ns, PDSO28, 0.330 INCH, SOJ-28
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	SOJ	SOJ	DIP	DIP	DIP	SOJ
package instruction	SOJ,	SOJ,	DIP,	DIP,	0.300 INCH, PLASTIC, DIP-28	0.330 INCH, SOJ-28
Contacts	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	15 ns	20 ns	20 ns	15 ns	17 ns	17 ns
JESD-30 code	R-PDSO-J28	R-PDSO-J28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDSO-J28
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM	CACHE TAG SRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	DIP	DIP	DIP	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
