EH1325HSETTS-FREQ2-GTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EH1325HSETTS-FREQ2-GTR

EH1325HSETTS-FREQ2-GTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 70 MHz - 155.52 MHz, HCMOS OUTPUT, ROHS COMPLIANT, DIP-8/4; CategoryPassive components oscillator; File Size186KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EH1325HSETTS-FREQ2-GTR Overview

CRYSTAL OSCILLATOR, CLOCK, 70 MHz - 155.52 MHz, HCMOS OUTPUT, ROHS COMPLIANT, DIP-8/4

EH1325HSETTS-FREQ2-GTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e3
Manufacturer's serial number	EH13
Installation features	SURFACE MOUNT
Maximum operating frequency	155.52 MHz
Minimum operating frequency	70 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	13.2mm x 13.2mm x 5.6mm
longest rise time	4 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

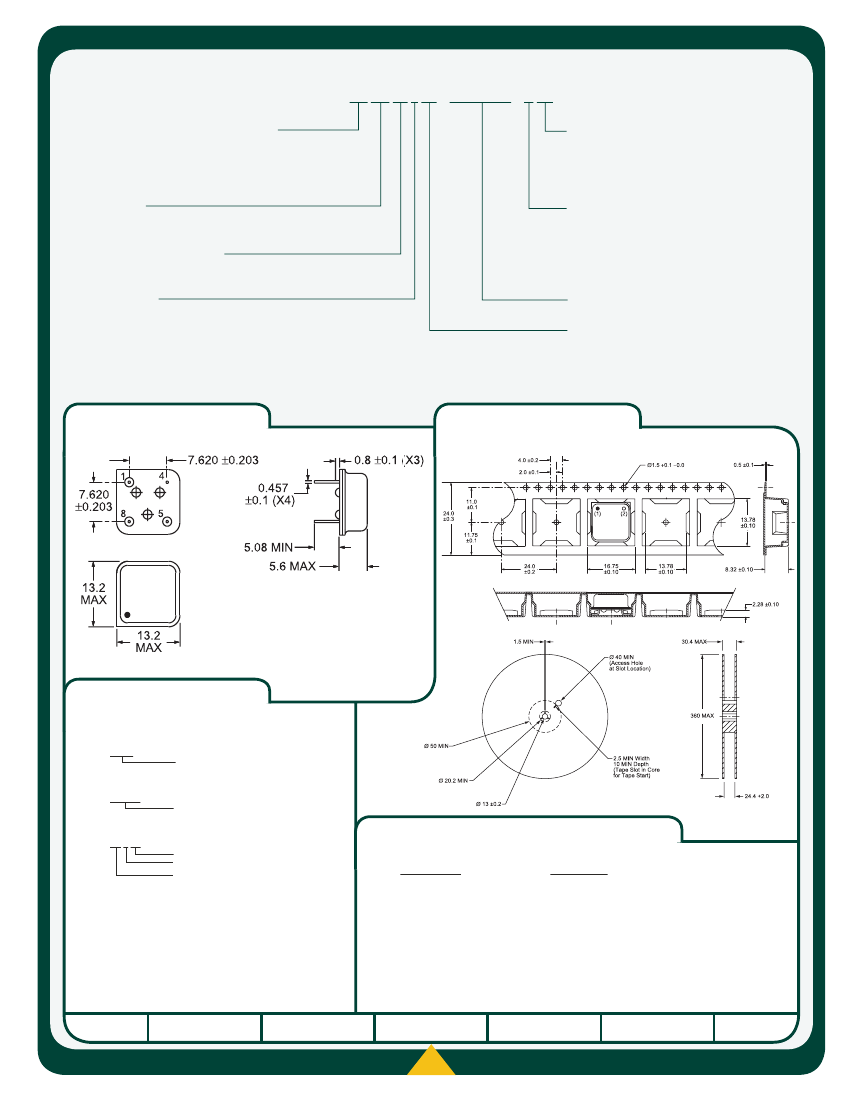

EH13

Series

• RoHS Compliant (Pb-free)

• HCMOS Output

• 3.3V Supply Voltage

• 8 Pin DIP Package

• Stability to 20ppm

• Custom Lead Length and

Gull Wing Options Available

NOTES

EH13

H 5.6

L 13.2

W 13.2

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Frequency Tolerance / Stability

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year Aging

at 25°C, Shock, and Vibration

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Load Drive Capability

Duty Cycle (at V

=3.3V

)

Tri-State Input Voltage

Aging (at 25°C)

Start Up Time

Period Jitter: Absolute

Period Jitter: One Sigma
