SAW Components
SAW filter
Short range devices
Series/type:
Ordering code:
Date:
Version:
B3710
B39431B3710U410
July 21, 2009
2.3
©
EPCOS AG 2009. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW filter
Data sheet
Application
s
Low-loss RF filter for remote control receivers
s
No matiching network required for operation at 50Ω
B3710
433.92 MHz
Features
s
s
s
s
s
s
s
s
s
s
Package size 3.0 x 3.0 x 1.1 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Lead free soldering compatible with J - STD20C
Passivation layer Elpas
AEC-Q200 qualified component family
Electrostactic Sensitive Device
(ESD)
Pin configuration
s
2
Input
s
5
Output
s
1,3,4,6 Ground (case)
Please read
cautions and warnings and
important notes
at the end of this document.
2
July 21, 2009
SAW Components
SAW filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –40 ˚C to +85 ˚C
Z
S
=
50Ω
Z
L
=
50Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
433.92
max.
—
B3710
433.92 MHz
MHz
Maximum insertion attenuation
α
max
433.00 ... 434.71 MHz
Amplitude ripple
(p-p)
∆α
433.00 ... 434.71 MHz
Attenuation
10.00
380.00
413.50
443.75
454.00
470.00
650.00
...
...
...
...
...
...
...
380.00
413.50
424.00
454.00
470.00
650.00
1000.00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
α
—
2.0
2.7
dB
—
0.5
1.3
dB
55
49
40
25
35
48
40
60
53
48
33
44
55
50
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
July 21, 2009
SAW Components
SAW filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –45 ˚C to+105 ˚C
Z
S
=
50Ω
Z
L
=
50Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
433.92
max.
—
B3710
433.92 MHz
MHz
Maximum insertion attenuation
α
max
433.00 ... 434.71 MHz
Amplitude ripple
(p-p)
∆α
433.00 ... 434.71 MHz
Attenuation
10.00
380.00
413.50
443.75
454.00
470.00
650.00
...
...
...
...
...
...
...
380.00
413.50
424.00
454.00
470.00
650.00
1000.00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
α
—
2.0
3.1
dB
—
0.5
1.7
dB
55
49
37
25
35
48
40
60
53
48
33
44
55
50
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
s
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Source power
Source power
T
T
stg
V
DC
P
S
P
S
–45/+125
–45/+125
0
10
13
˚C
˚C
V
dBm
dBm
source impedance 50
Ω
1000 hours, duty cycle 1:10,
-40 ˚C to +85 ˚C
Please read
cautions and warnings and
important notes
at the end of this document.
4
July 21, 2009
SAW Components
SAW filter
Data sheet

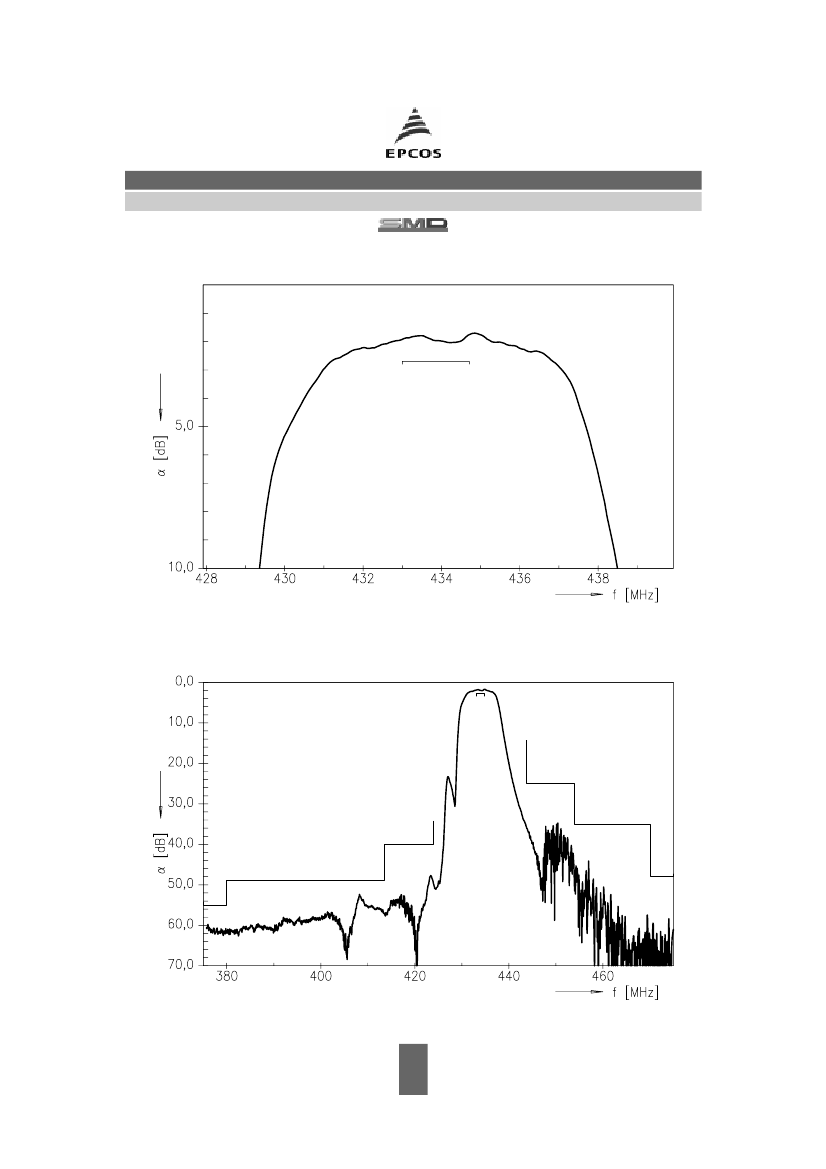

Transfer function
B3710
433.92 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
July 21, 2009
