BTS112AE3045A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BTS112AE3045A

BTS112AE3045A: DescriptionPower Field-Effect Transistor, 12A I(D), 60V, 0.15ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET; CategoryDiscrete semiconductor The transistor; File Size188KB，9 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BTS112AE3045A Overview

Power Field-Effect Transistor, 12A I(D), 60V, 0.15ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET

BTS112AE3045A Parametric

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	12 A
Maximum drain-source on-resistance	0.15 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	48 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

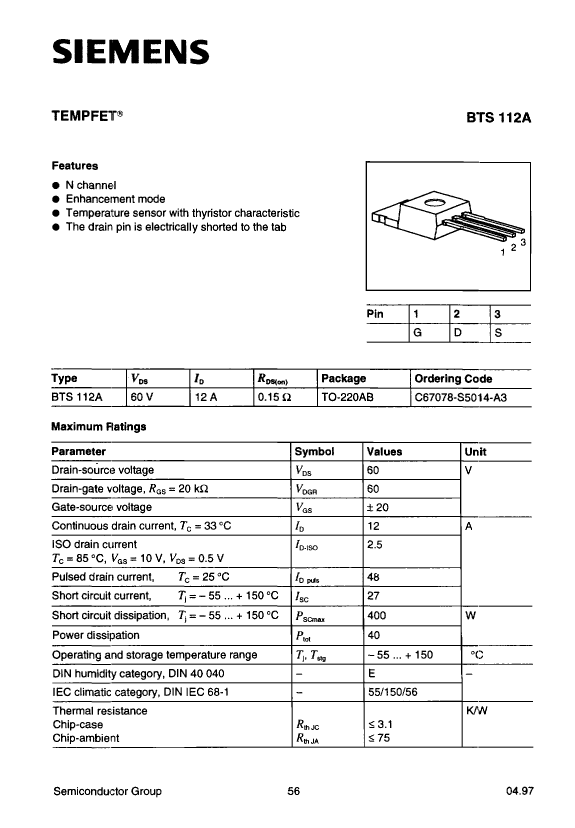

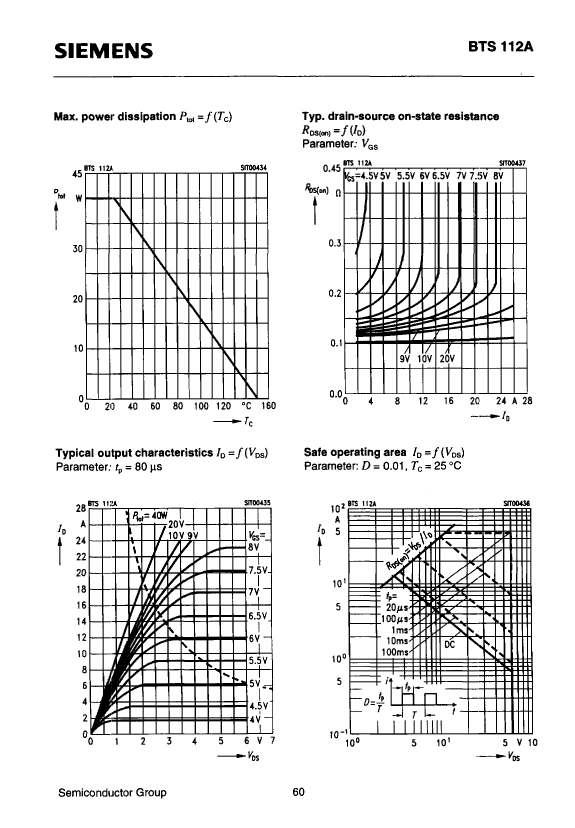

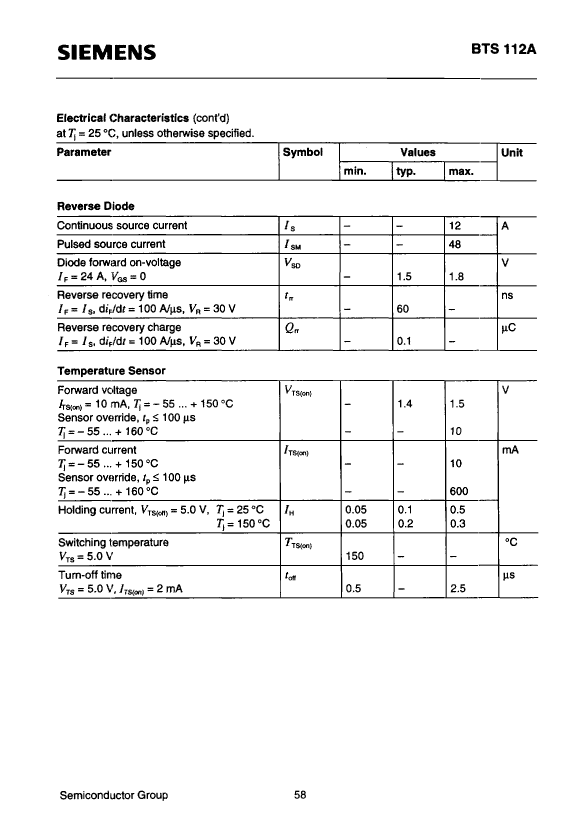

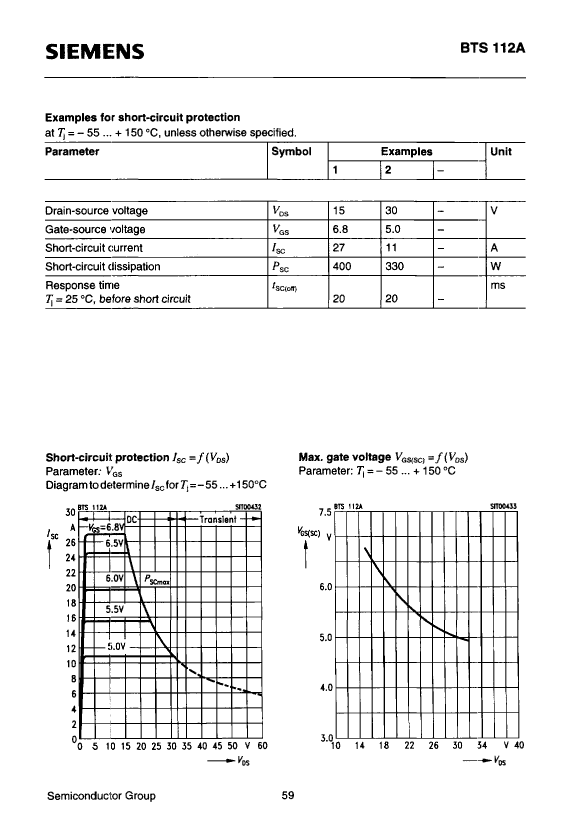

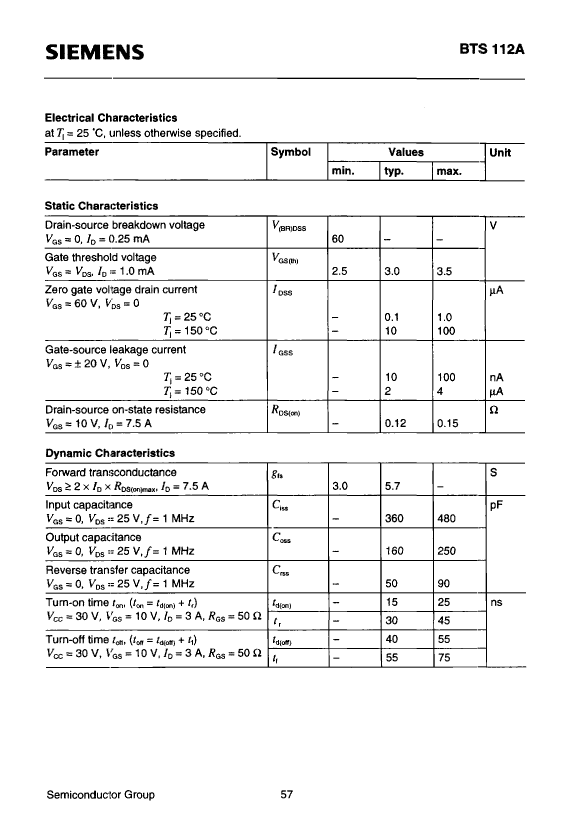

Preview

Download Datasheet

View All

BTS112AE3045A Related Products

	BTS112AE3045A	BTS112AE3045	BTS112A-E3045
Description	Power Field-Effect Transistor, 12A I(D), 60V, 0.15ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET	Power Field-Effect Transistor, 12A I(D), 60V, 0.15ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN	12 A, 60 V, 0.15 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, 3 PIN
Maker	SIEMENS	SIEMENS	SIEMENS
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown	unknown	unknown
Shell connection	DRAIN	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage	60 V	60 V	60 V
Maximum drain current (ID)	12 A	12 A	12 A
Maximum drain-source on-resistance	0.15 Ω	0.15 Ω	0.15 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Number of components	1	1	1
Number of terminals	2	2	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	48 A	48 A	48 A
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
ECCN code	EAR99	EAR99	-
Parts packaging code	-	TO-220AB	TO-220AB
Contacts	-	3	3
Base Number Matches	-	1	1
