PF-100M: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD,; CategoryPassive components inductor; File Size27KB，3 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com

Download Datasheet Parametric View All

PF-100M Overview

General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD,

PF-100M Parametric

Parameter Name	Attribute value
Maker	NEC TOKIN ( KEMET Corporation )
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.07 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	P.F-M
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	2.5 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Tolerance	20%

Preview

Download Datasheet

View All

SMD EMI filters

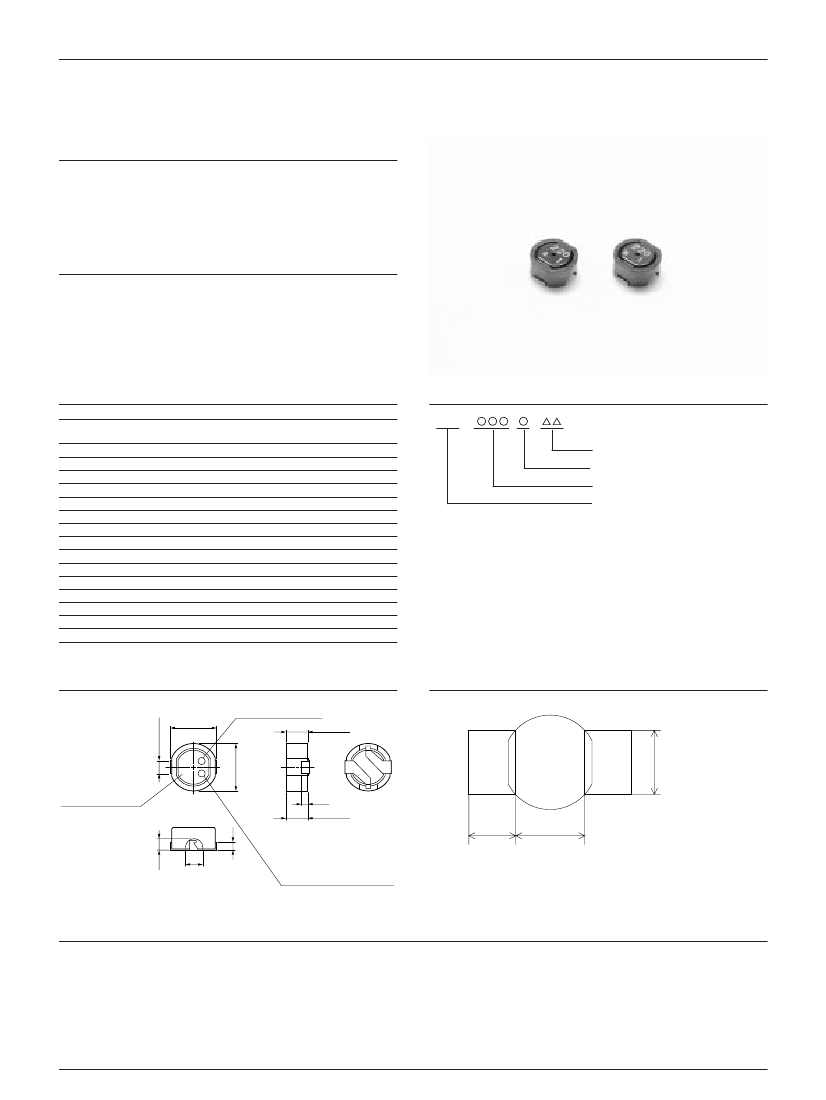

Leadless Power Inductors P•F-M Series

Features

This is a magnetically shielded surface-mount type inductor in

which a ferrite drum core with winding is connected with surface

mount type external electrodes and combined with a ring core.

Applications

• D/D converters

• Transform chopper inductors

Specifications

Model

PF-100M

PF-120M

PF-150M

PF-180M

PF-220M

PF-330M

PF-470M

PF-560M

PF-680M

PF-820M

PF-101M

PF-121M

PF-151M

PF-181M

PF-221M

Inductance

(

µ

H)

10

±

20%

12

±

20%

15

±

20%

18

±

20%

22

±

20%

33

±

15%

47

±

15%

56

±

15%

68

±

15%

82

±

15%

100

±

10%

120

±

10%

150

±

10%

180

±

10%

220

±

10%

DC resistance

(Ω) max.

0.07

0.09

0.10

0.16

0.20

0.25

0.30

0.35

0.40

0.60

0.70

0.75

1.00

Rated current

(A)

2.50

2.40

2.20

2.10

2.00

1.70

1.40

1.25

1.15

1.05

0.95

0.75

0.70

0.65

0.60

Markings

P•F -

The Tokin management number

Size

Series

M : 10

×

9.5

×

5.2 mm

121 : 120

µ

H

Inductance

Shapes and Dimensions

3.4

±

0.2

9.5

±

0.5

Manufacturing week

4.6

±

0.3

Recommended Pattern

10.0

±

0.3

a : 6.0mm

b : 4.5mm

c : 4.5mm

470

Specification name

1.0

5.2max.

1.0

b

Lot marking

(Based on the ClauseA2-3

of EIAJ.RC1001)

a

2.3

3.4

(mm)

Note

Operating temperature range

Storage temperature range

Tape and Reel Dimensions

Cautions for use

-40~+85˚C

-40~+105˚C

Please order by referring to page 30, 31 and 32.

Refer to pages 33.

13

c
