P.F-100M: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, Nickel-zinc-Core, SMD,; CategoryPassive components inductor; File Size477KB，3 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com

Download Datasheet Parametric View All

P.F-100M Overview

General Purpose Inductor, 10uH, 20%, 1 Element, Nickel-zinc-Core, SMD,

P.F-100M Parametric

Parameter Name	Attribute value
Maker	NEC TOKIN ( KEMET Corporation )
Reach Compliance Code	unknown
ECCN code	EAR99
core material	NICKEL-ZINC
DC Resistance	0.07 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Maximum rated current	2.5 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%

Preview

Download Datasheet

View All

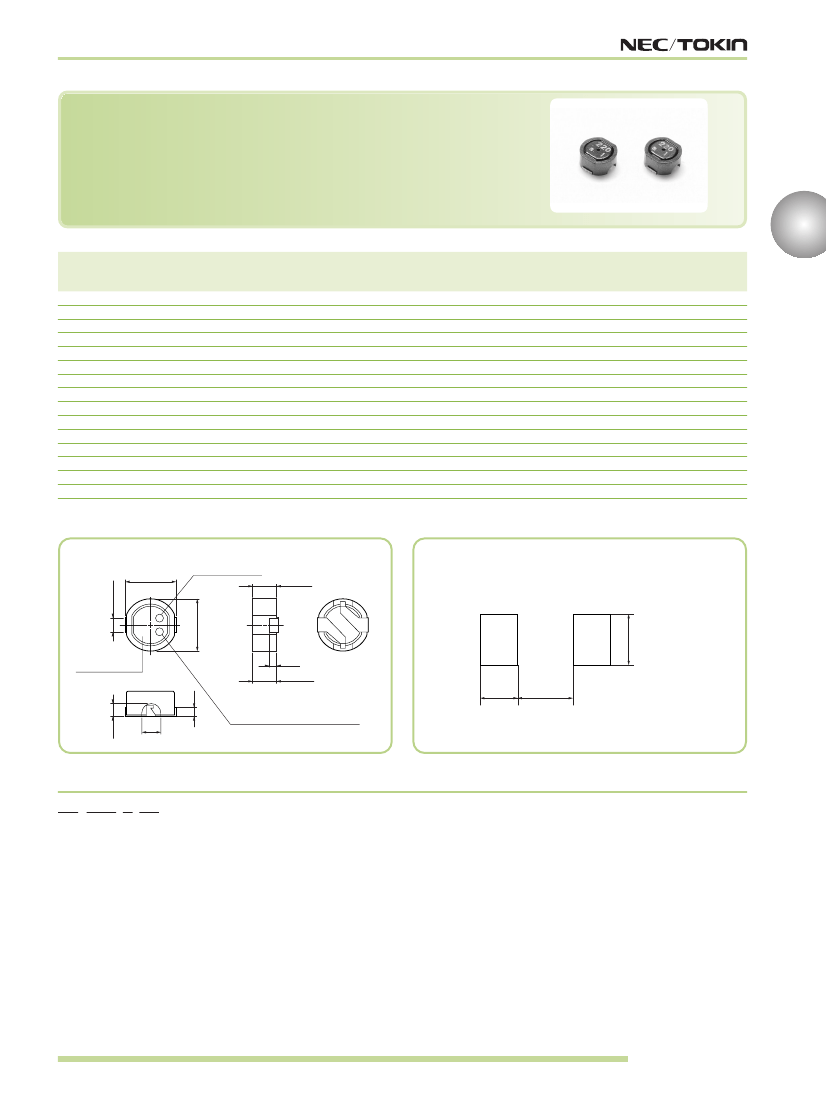

SMD-Type Inductors and Choke Coils

Leadless Power Inductors

P • F-M Series

• Tape and Reel Dimensions (see page 118)

• Precautions (see page 124)

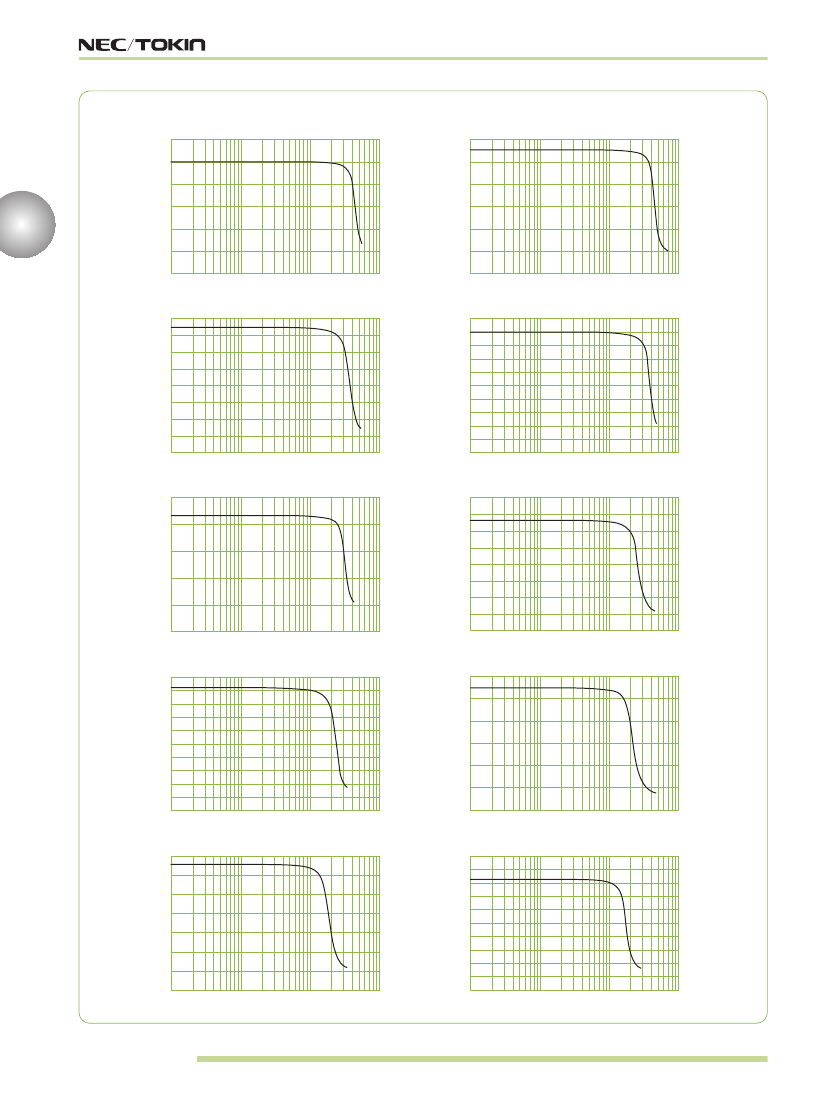

2

DC resistance

( ) max.

Rated current

(A)

Model

Inductance

(µH)

SMD-Type Inductors and Choke Coils

P • F-100M

P • F-120M

P • F-150M

P • F-180M

P • F-220M

P • F-330M

P • F-470M

P • F-560M

P • F-680M

P • F-820M

P • F-101M

P • F-121M

P • F-151M

P • F-181M

P • F-221M

10±20%

12±20%

15±20%

18±20%

22±20%

33±15%

47±15%

56±15%

68±15%

82±15%

100±10%

120±10%

150±10%

180±10%

220±10%

0.07

0.09

0.10

0.16

0.20

0.25

0.30

0.35

0.40

0.60

0.70

0.75

1.00

• Storage temperature range: –25 to +85˚C

2.50

2.40

2.20

2.10

2.00

1.70

1.40

1.25

1.15

1.05

0.95

0.75

0.70

0.65

0.60

• Operating temperature range: –25 to +80˚C (Without self-temperature rise)

Shape and Dimensions

9.5±0.5

3.4±0.2

Manufacture week

4.6±0.3

Recommended Land Pattern

10.0±0.3

470

Inductance

1.0

5.2max.

1.0

b

Lot No.

(conforms to EIAJ. RC 1001A 2-3)

a

a : 6.0

b : 4.5

c : 4.5

2.3

3.4

[mm]

c

[mm]

Numbering System

P½F -

Series

Inductance

Dimensions

NEC TOKIN control number

EMC GENERAL VOL.01
