3 keys (beta=150, gamma=60, plug: male contacts, receptacle: female contacts)
Environment friendly aluminium (nickel plated, anthracite color) shell and nut, other pieces
bronze/brass
: 0 - 0 mm
Performance
Configuration
Insulator
Rated Current
2F.310 : 10 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
8 Amps
Specifications
Contact Type: Crimp
Max. Matings: 5000
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Contact Retention: 30 N
Contact Dia.: 0.9 mm (0.035in)
Bucket Dia.: 1.1 mm (0.043in)
Min. Conductor: 0.25 mm^2 (AWG 24)
Max. Conductor: 0.5 mm^2 (AWG 20)
R (max): 4.8 mOhm
Vtest (contact-shell): 2100 V (AC), 2970 V (DC)
Vtest (contact-contact): 1800 V (AC), 2550 V (DC)
Others
Endurance (Shell): 1000 mating cycles
Temp (min / max): -15°C / +200°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Climatical Category: 15/200/21 (Aluminium shell)
IP Rating: 50

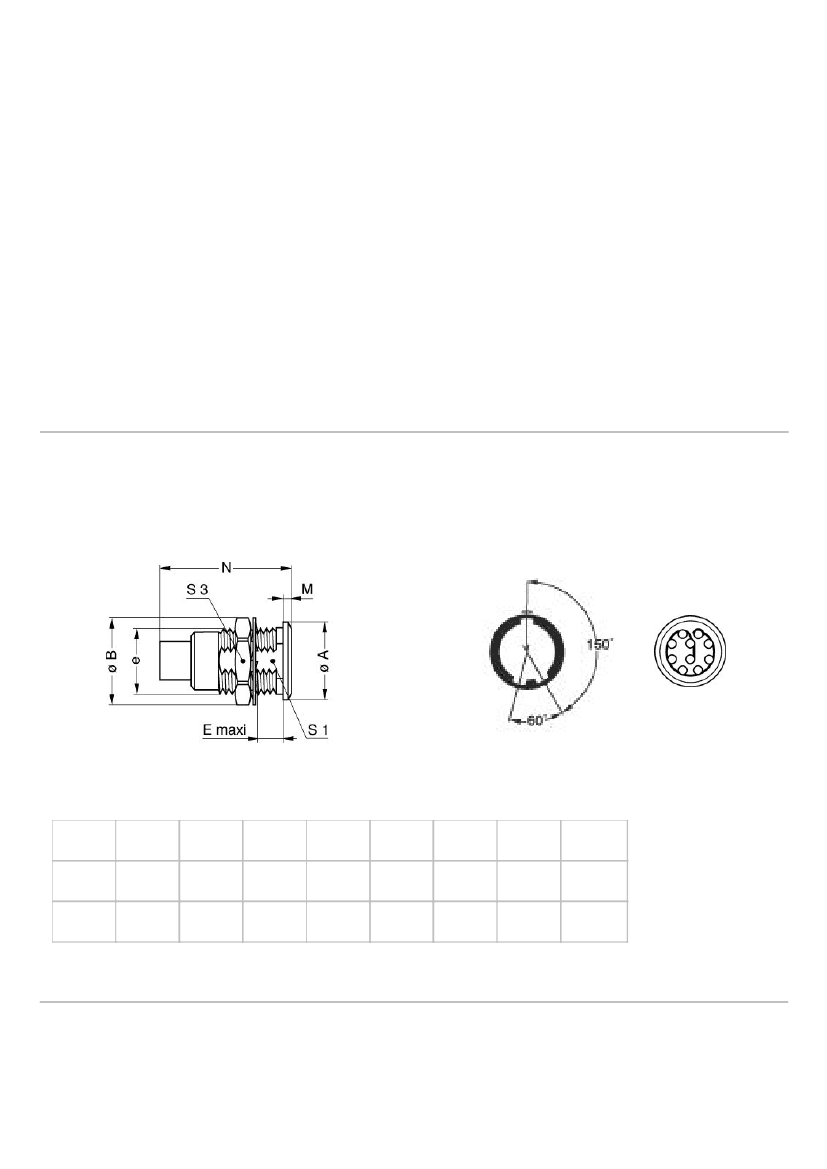

DRAWINGS
Draws
Dimensions
A
mm.
in.
18
0,71
B
19.5
0,77
E
6
0,24
M
1.8
0,07
N
19
0,75
S1
13.5
0,53
S3
17
0,67
e
M15x1.0
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
Crimp Tool: DPC.91.701.V
Crimp settings: AWG/Selector = 20-22-24/6-5-5
Positionner: DCE.91.090.BVM
Extractor: DCF.93.090.4LT
Replacement contact: EGG.0B.660.ZZM

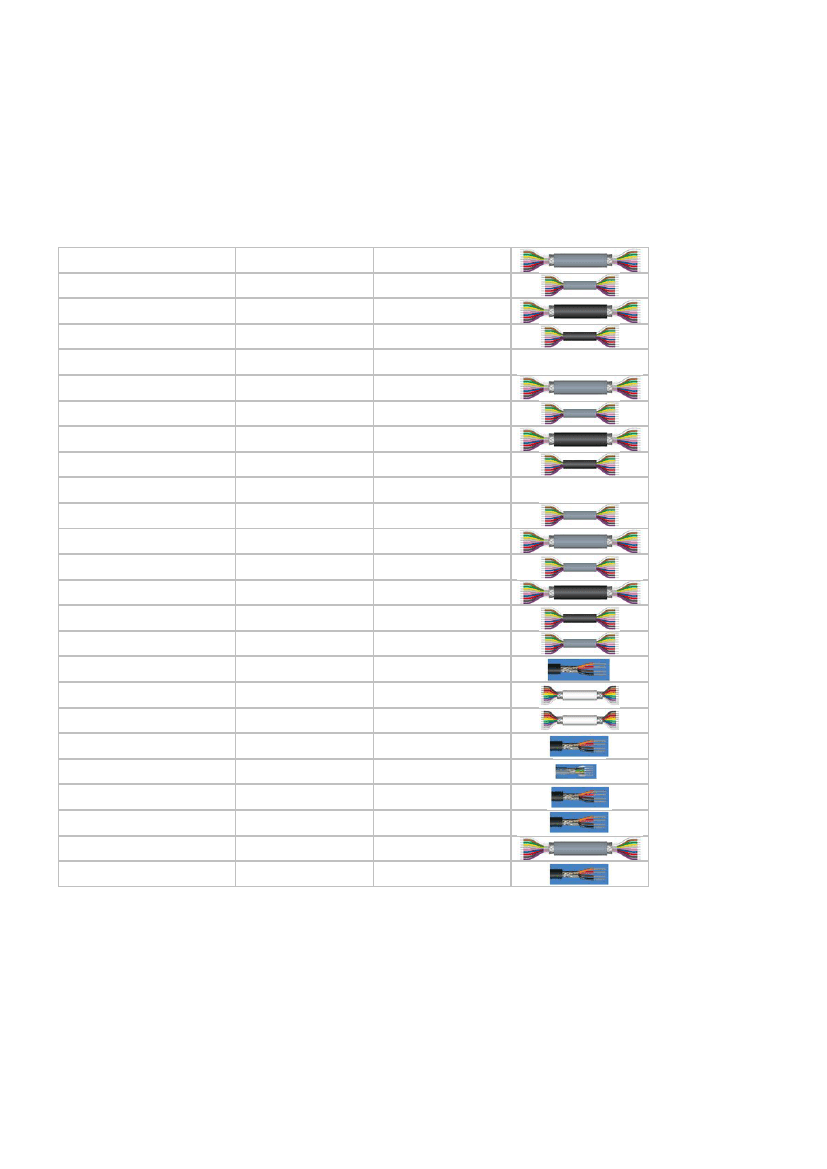

Cables
CMN.10.T20.080PGCE
CMN.10.T20.080PGZE
CMN.10.T20.080PNCE
CMN.10.T20.080PNZE
CMN.10.T20.080QGC
CMN.10.T22.068PGCE
CMN.10.T22.068PGZE
CMN.10.T22.068PNCE
CMN.10.T22.068PNZE
CMN.10.T22.068QGC
CMN.10.T22.068QGZE
CMN.10.T28.052PGCE
CMN.10.T28.052PGZE
CMN.10.T28.052PNCE
CMN.10.T28.052PNZE
CMN.10.T28.053QGZE
110 220
110 240
110 260
110 280
210 140
210 200
210 240
210 250
210 260
TPR (medical)
PVC
PTFE
PTFE
PVC
PVC
PVC
PVC
PVC
PVC
Grey
Black
White
White
Black
Grey
Black
Black
Grey
Black
PVC
TPR (medical)
PVC
Grey
GREY
Grey
Black
PVC
TPR
PVC
Grey
GREY
Grey
Black
PVC
PVC
GREY
Grey
Black
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
