2681/BQA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 2681/BQA

2681/BQA: DescriptionSerial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size902KB，20 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

2681/BQA Overview

Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP40

2681/BQA Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Address bus width	4
boundary scan	NO
Maximum data transfer rate	0.125 MBps
External data bus width	8
JESD-30 code	R-CDIP-T40
low power mode	NO
Number of serial I/Os	2
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

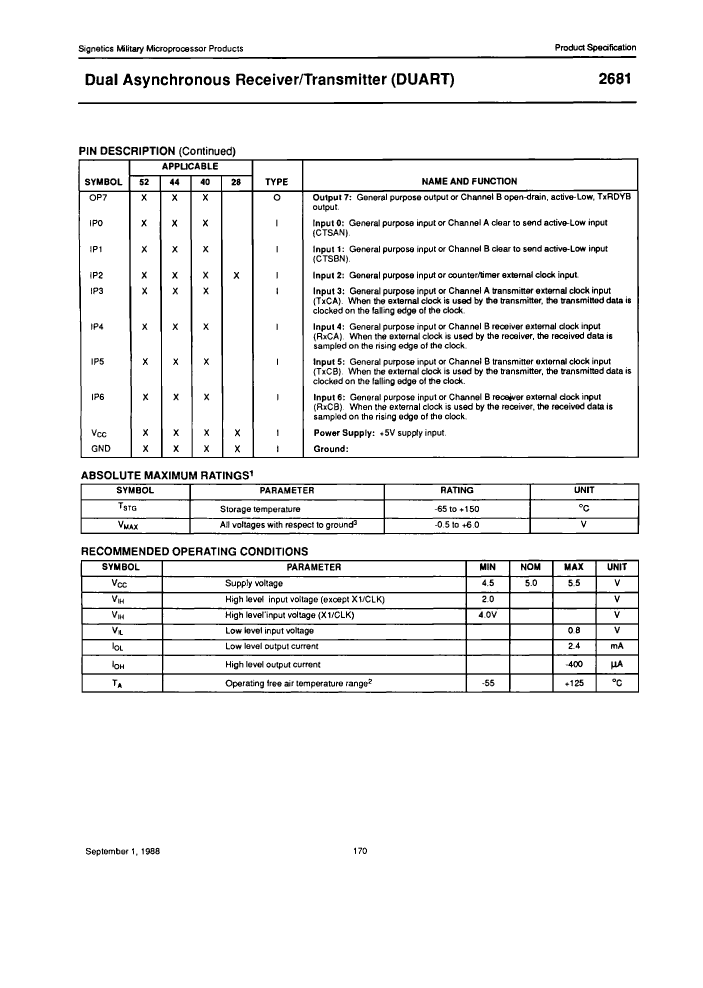

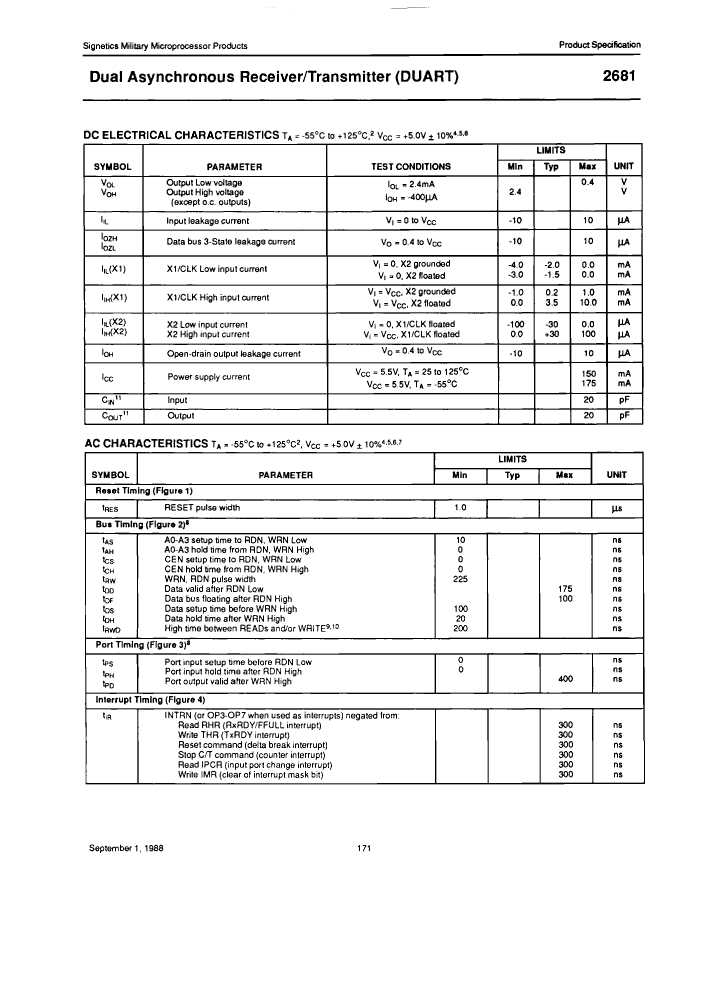

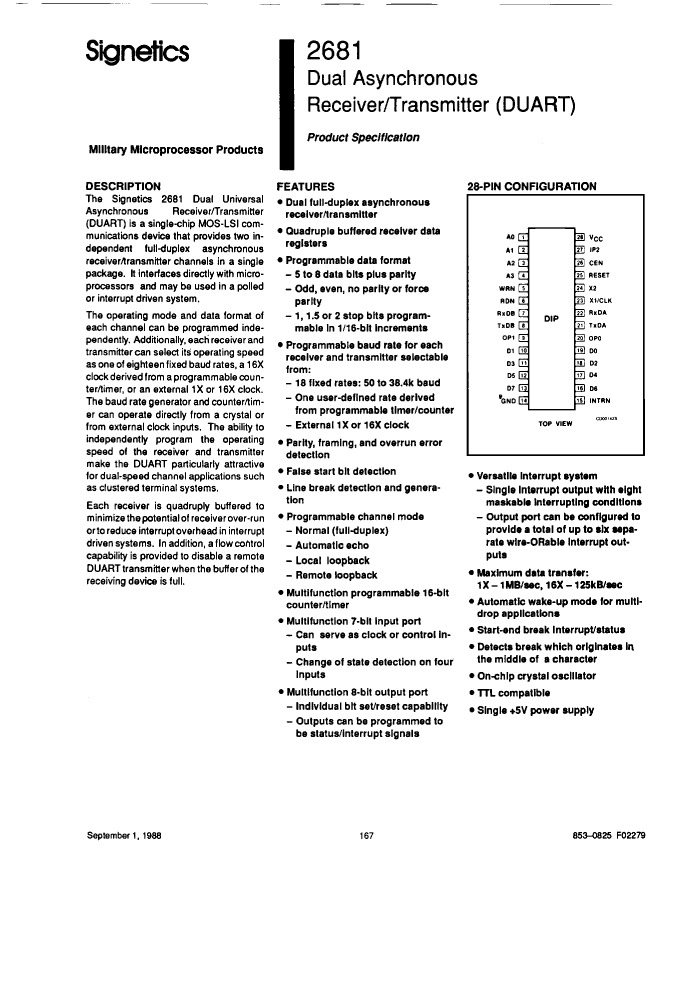

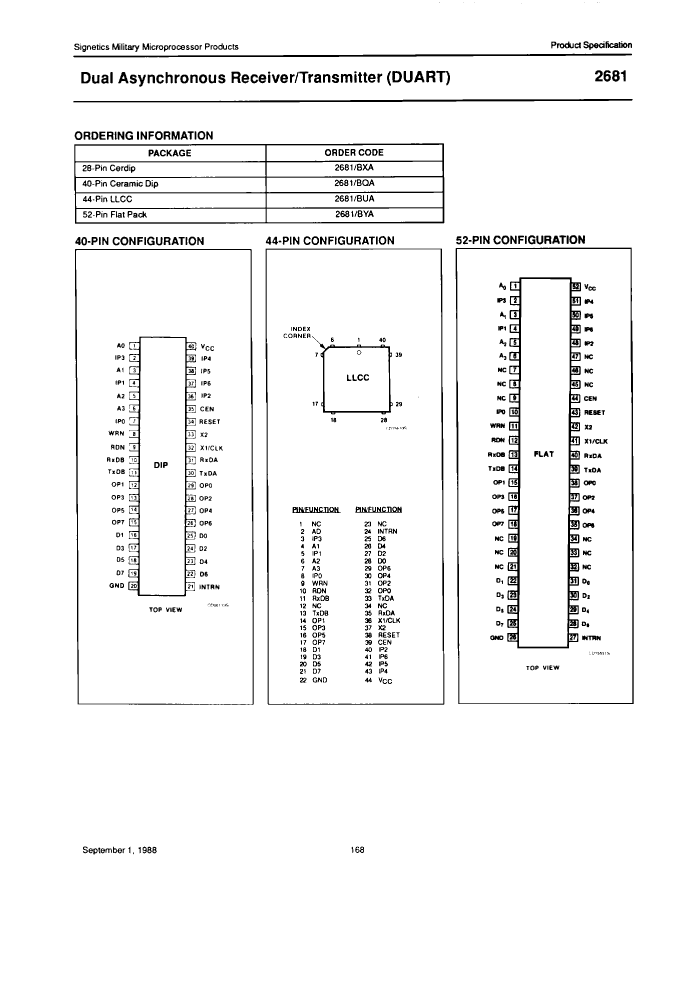

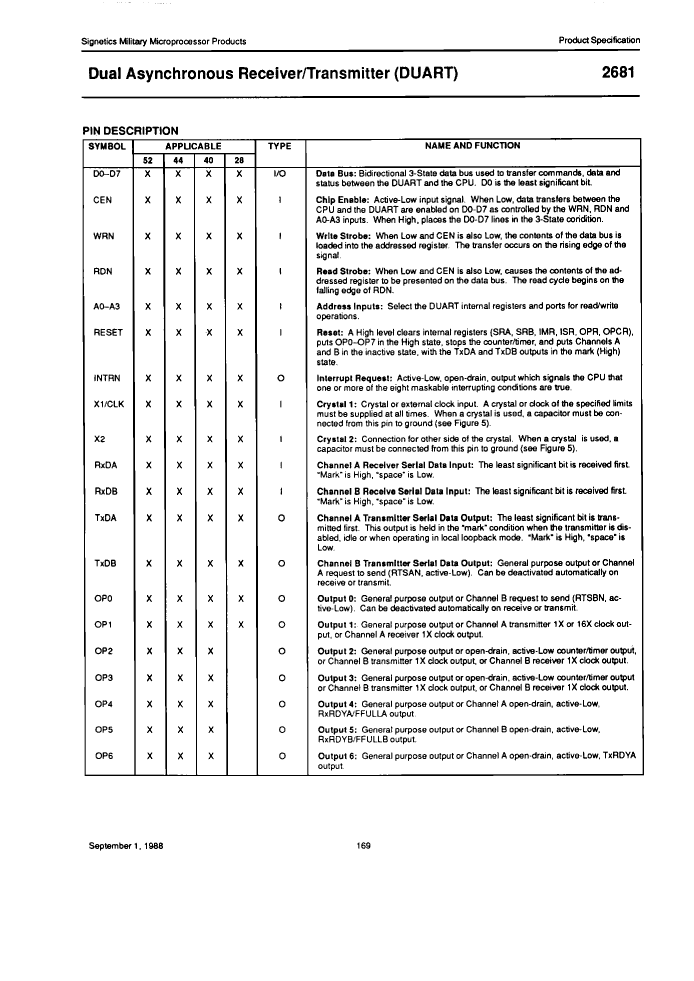

Preview

Download Datasheet

View All

2681/BQA Related Products

	2681/BQA	2681/BUA	2681/BUA-T	2681/BYA-T	2681/BYA	2681/BXA
Description	Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP40	Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CQCC44	Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CQCC44	Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDFP52	Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDFP52	Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP28
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Address bus width	4	4	4	4	4	4
boundary scan	NO	NO	NO	NO	NO	NO
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	8	8	8	8	8	8
JESD-30 code	R-CDIP-T40	S-CQCC-N44	S-CQCC-N44	R-CDFP-F52	R-CDFP-F52	R-GDIP-T28
low power mode	NO	NO	NO	NO	NO	NO
Number of serial I/Os	2	2	2	2	2	2
Number of terminals	40	44	44	52	52	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	FLATPACK	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD	FLAT	FLAT	THROUGH-HOLE
Terminal location	DUAL	QUAD	QUAD	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1	1	1	1	1	1
