2N7104 datasheet, PDF - EEWORLD Datasheet

2N7104: DescriptionSmall Signal Field-Effect Transistor, 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-72,; CategoryDiscrete semiconductor The transistor; File Size93KB，2 Pages; ManufacturerSolitron Devices Inc.

Download Datasheet Parametric View All

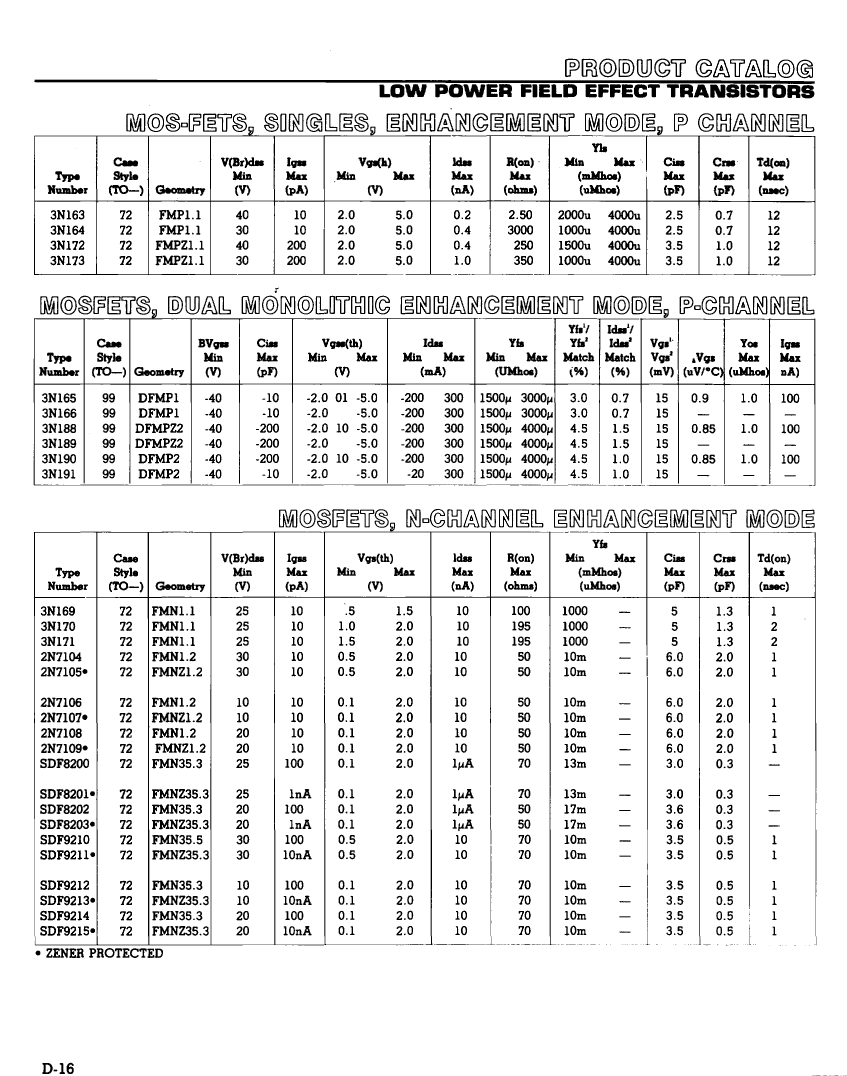

2N7104 Overview

Small Signal Field-Effect Transistor, 30V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-72,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	CYLINDRICAL, O-MBCY-W4
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (Abs) (ID)	0.05 A
Maximum drain-source on-resistance	50 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	2 pF
JEDEC-95 code	TO-72
JESD-30 code	O-MBCY-W4
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Base Number Matches	1
