1N4565-1 thru 1N4584-1 &
1N4565A-1 thru 1N4584A-1
Temperature Compensated
Zener Reference Diode Series
Features
•
Available in JAN, JANTX, JANTXV and JANS per
MIL-PRF-19500/452
•
6.4 V Nominal Zener Voltage ±5%
•
500 mW Power Handling
•

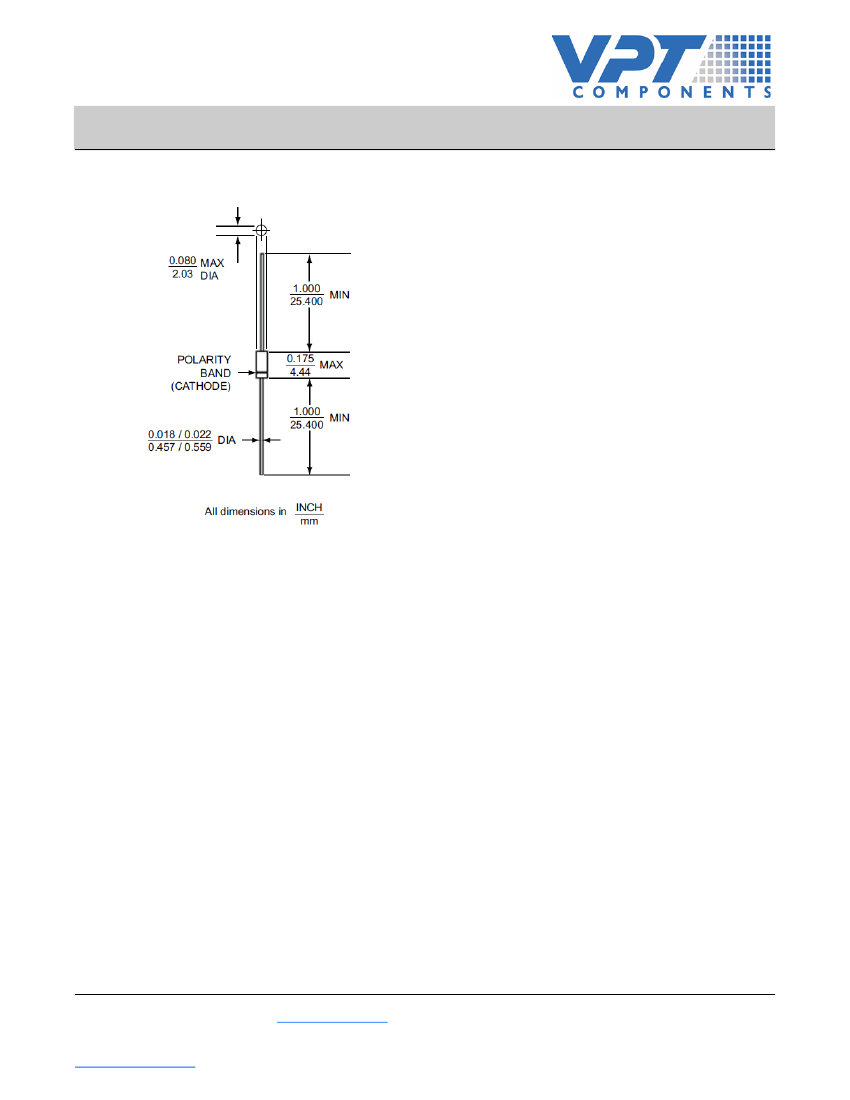

Axial-leaded Glass DO-35 Style Package
•
Also Available in a Hermetically sealed MELF
DO-213AA package
Rev. V2
Electrical Specifications:
I
R
= 2 µA @ +25°C & V
R
= 3 Vdc, T
A
= +25°C (unless otherwise specified)
JEDEC
Type #
Zener
Test
Current
I
ZT
mA
1N4565-1
1N4565A-1
1N4566-1
1N4566A-1
1N4567-1
1N4567A-1
1N4568-1
1N4568A-1
1N4569-1
1N4569A-1
1N4570-1
1N4570A-1
1N4571-1
1N4571A-1
1N4572-1
1N4572A-1
1N4573-1
1N4573A-1
1N4574-1
1N4574A-1
1N4575-1
1N4575A-1
1N4576-1
1N4576A-1
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
1.0
1.0
2.0
2.0
Effective
Temperature
Coefficient
%/°C
0.01
0.005
0.002
0.001
0.0005
0.01
0.005
0.002
0.001
0.0005
0.01
0.005
Voltage
Temperature
Stability
ΔV
ZT
max.
1
mV
48
100
24
50
10
20
5
10
2.5
5.0
48
100
24
50
10
20
5
10
2.5
5.0
48
100
24
50
Temperature
Range
°C
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
Maximum
Dynamic
Zener
Impedance
2
Ω
200
200
200
200
200
100
100
100
100
100
50
50
(Continued next page)
1
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
www.vptcomponents.com
1N4565-1 thru 1N4584-1 &
1N4565A-1 thru 1N4584A-1
Temperature Compensated
Zener Reference Diode Series
Electrical Specifications:
I
R
= 2 µA @ +25°C & V
R
= 3 Vdc, T
A
= +25°C (unless otherwise specified)
JEDEC
Type #
Zener
Test
Current
I
ZT
mA
1N4577-1
1N4577A-1
1N4578-1
1N4578A-1
1N4579-1
1N4579A-1
1N4580-1
1N4580A-1
1N4581-1
1N4581A-1
1N4582-1
1N4582A-1
1N4583-1
1N4583A-1
1N4584-1
1N4584A-1
2.0
2.0
2.0
4.0
4.0
4.0
4.0
4.0
Effective
Temperature
Coefficient
%/°C
0.002
0.001
0.0005
0.01
0.005
0.002
0.001
0.0005
Voltage
Temperature
Stability
ΔV
ZT
max.
1
mV
10
20
5
10
2.5
5.0
48
100
24
50
10
20
5
10
2.5
5.0
Temperature
Range
°C
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
Maximum
Dynamic
Zener
Impedance
2
Ω
50
50
50
25
25
25
25
25
Rev. V2
1. The maximum allowable change observed over the entire temperature range i.e., the diode voltage will not exceed the specified mV at any
discrete temperature between the established limits, per JEDEC standard No. 5.
2. Zener impedance is derived by superimposing on l
ZT
A 60Hz rms a.c. current equal to 10% of l
ZT
.
Absolute Maximum Ratings
Parameter
DC Power Dissipation
Power Derating
Operating & Storage Temperature
Absolute Maximum
500 mW @ +50°C
4 mW/°C above +50°C
-65°C
to +175°C
2
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
www.vptcomponents.com
1N4565-1 thru 1N4584-1 &
1N4565A-1 thru 1N4584A-1
Temperature Compensated
Zener Reference Diode Series
Rev. V2
