PDSP1601MCGGCR Overview

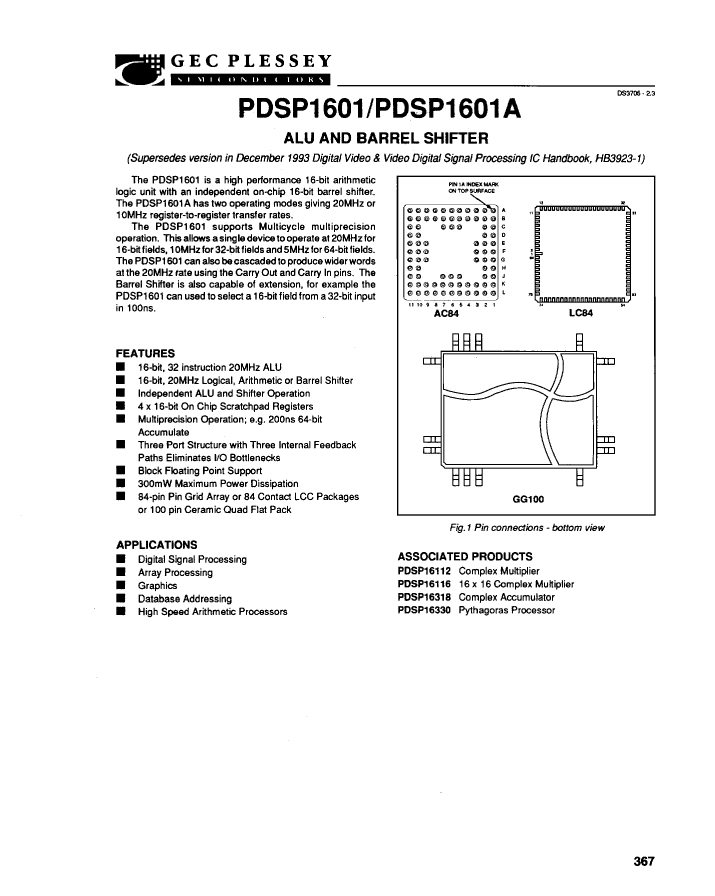

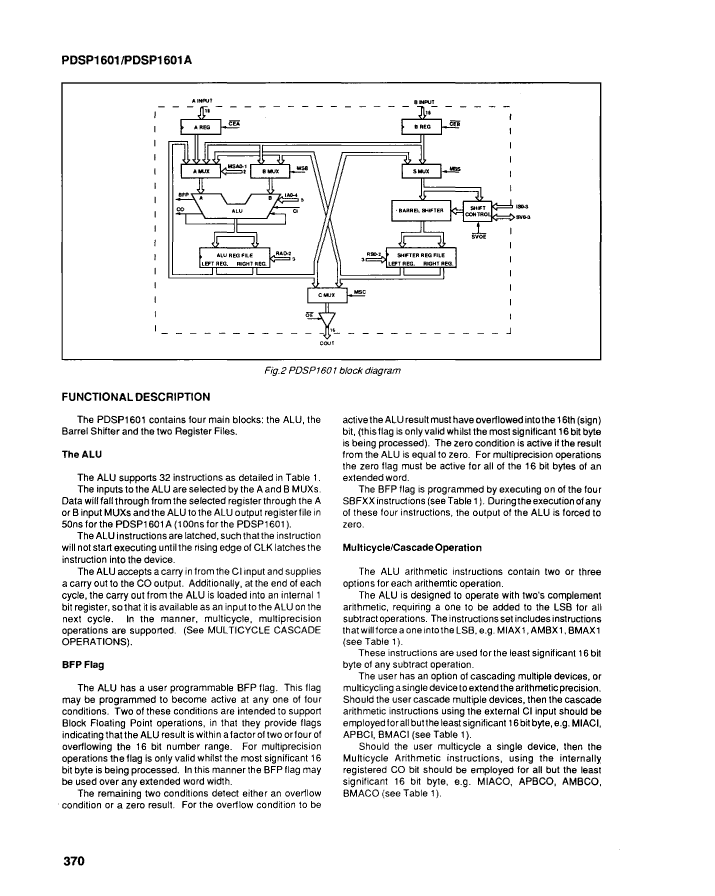

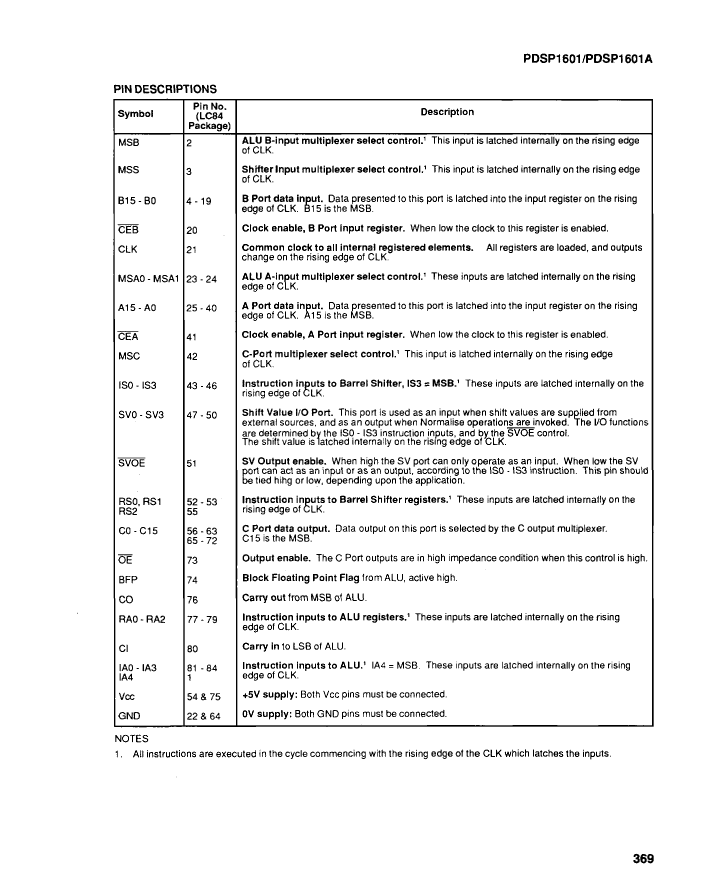

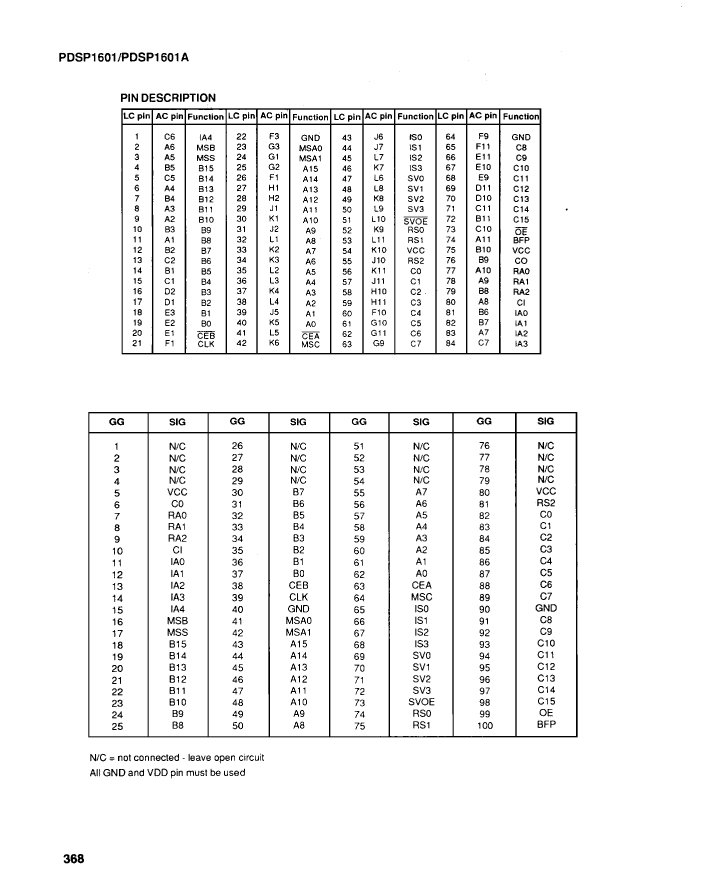

Bit-Slice Processor, 16-Bit, CMOS, CQFP100

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Dynex
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C

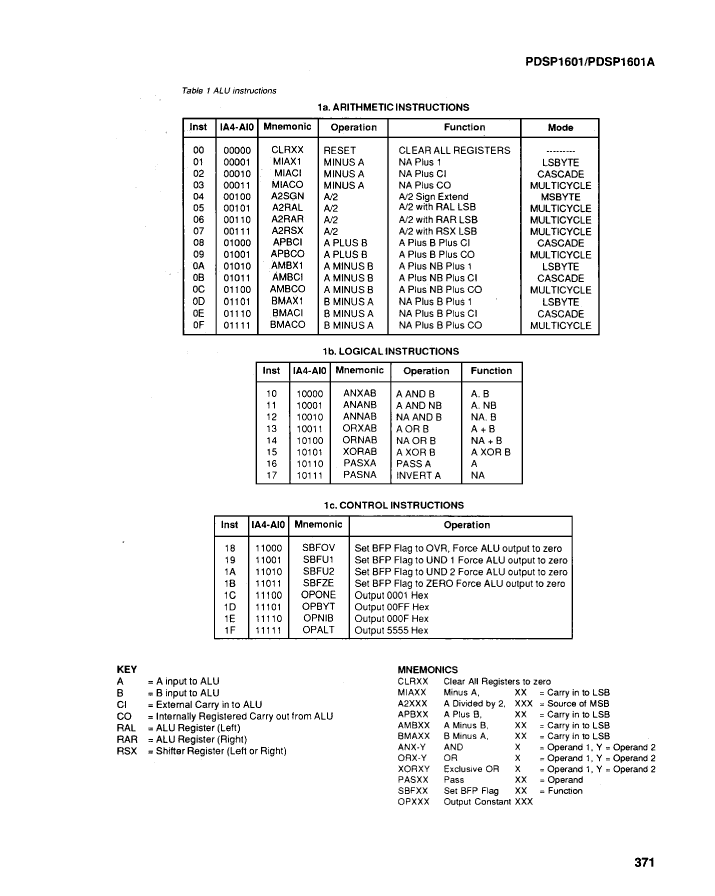

Other features	2 X 16 BIT DATA INPUT PORT; MULTIPLEXED OUTPUT; 32 MICROINSTRUCTIONS
maximum clock frequency	10 MHz
External data bus width	16
JESD-30 code	S-GQFP-G100
JESD-609 code	e0
Number of terminals	100
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	60 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	BIT-SLICE MICROPROCESSOR

	PDSP1601MCGGCR	PDSP1601AOAC	PDSP1601ABOAC
Description	Bit-Slice Processor, 16-Bit, CMOS, CQFP100	Bit-Slice Processor, 16-Bit, CMOS, CPGA84	Bit-Slice Processor, 16-Bit, CMOS, CPGA84
Maker	Dynex	Dynex	Dynex
Reach Compliance Code	unknown	unknown	unknown
Other features	2 X 16 BIT DATA INPUT PORT; MULTIPLEXED OUTPUT; 32 MICROINSTRUCTIONS	2 X 16 BIT DATA INPUT PORT; MULTIPLEXED OUTPUT; 32 MICROINSTRUCTIONS	2 X 16 BIT DATA INPUT PORT; MULTIPLEXED OUTPUT; 32 MICROINSTRUCTIONS
maximum clock frequency	10 MHz	10 MHz	20 MHz
External data bus width	16	16	16
JESD-30 code	S-GQFP-G100	R-CPGA-P84	R-CPGA-P84
Number of terminals	100	84	84
Maximum operating temperature	125 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	60 mA	60 mA	60 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL
Terminal form	GULL WING	PIN/PEG	PIN/PEG
Terminal location	QUAD	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR	BIT-SLICE MICROPROCESSOR
ECCN code	3A001.A.2.C	3A001.A.2.C	-
