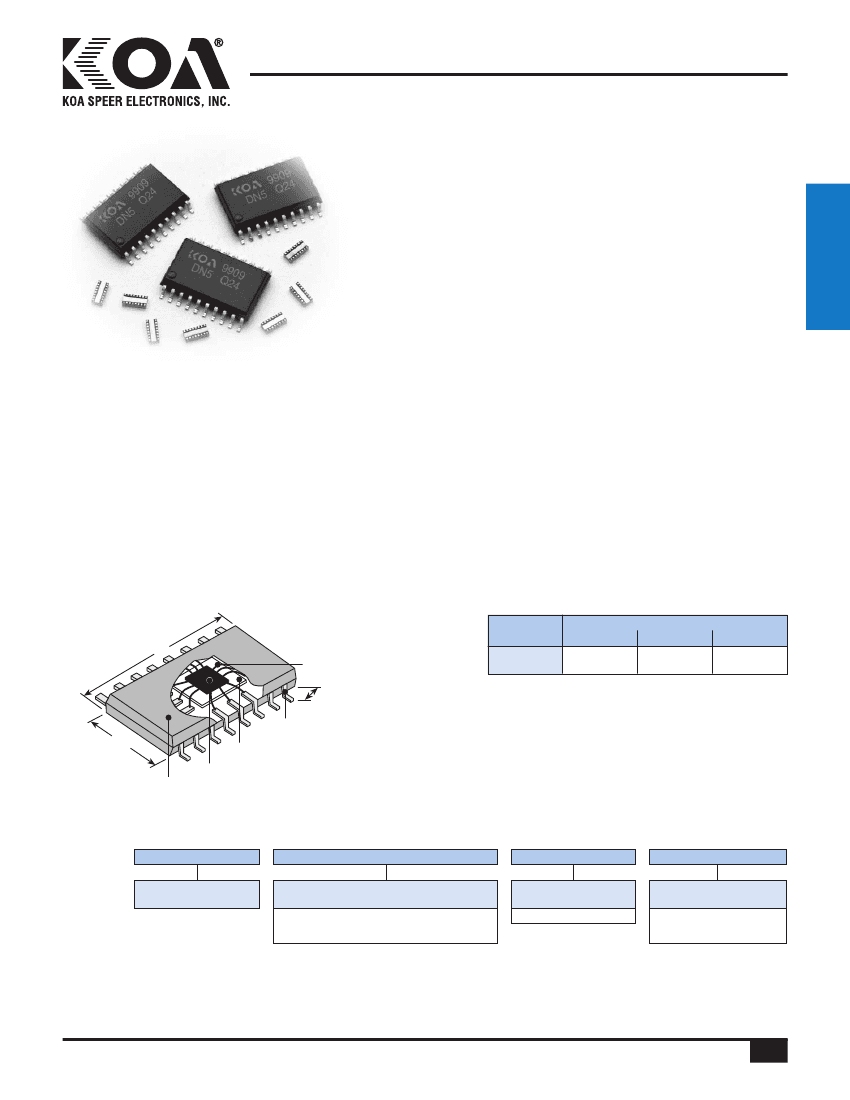

DN5
diode terminator network
This diode network is designed to provide nineteen
channels of active termination for high-speed data signals
to eliminate signal undershoot and overshoot. The network
has the added benefit of acting to suppress any ESD
voltage events by shunting the energy to ground assuring
maximum reliability of electronic systems in the field.
Trigger levels are defined by the positive and negative
bias levels set by the user.
features
•
•
•
•
•
Negligible reverse recovery time
Low capacitance
Low forward voltage drop
18-channel terminator in a single package
Resolved bus impedance mismatch
applications
•
Termination of data/control signals @
≥
66 MHz
•
Dynamic RAM bus termination
•
RISC architecture
dimensions and construction
Size
Code
Dimensions
inches
(mm)
L
W
p
.341
(8.66)
.150
(3.81)
.033
(0.84)
L
Bonding
Wire
p
Lead
Q24
W
Die
Pad
Si
Molded Wafer
Resin
ordering information
New Part #
DN5
Type
Q24
Package
Symbol
Package type symbol + number of pins
QSOP: Q24
L
Termination
Material
L: SnPb
TEB
Packaging
TEB: 13" embossed
plastic tape
For further information on packaging, please refer to Appendix C.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/01/03
KOA Speer Electronics, Inc.
• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
.O.
181
circuit
protection
DN5
diode terminator network
circuit schematic
n
circuit
protection
application schematic
ESD
Positive Supply
Driver
Receiver
Neg. Supply or Gnd.
1
n= number of pins (24)
applications and ratings
Part
Designation
Forward
Voltage
0.6 to
0.95V
Reverse
Breakdown
Voltage
9.5 to 11V
Leakage
Current
Capacitance
Channel
Clamp
Voltage
±10V
ESD
Operating
Voltage Temperature
Capability
Range
16kV
-40°C to
+85°C
Supply
Voltage
(Vp ~ Vn)
8V
Continuous
Forward
Current*
50mA
Total
Power
DN5
1uA
2pF
1W
* One diode conducting
environmental applications
Performance Characteristics
Parameter
Resistance to Soldering Heat
Short Time Overload
Moisture Resistance
Thermal Shock
H.A.S.T.
Maximum
∆
R
+0.25%
+0.50%
+0.50%
+0.50%
+1%
MIL-R-55342 4.7.7
MIL-R-55342 4.7.5
MIL-STD-202 method 103
MlL-STD-202 method 107
2 Atm., 121°C, 96 hrs
Test Method
