2268-2-02-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2268-2-02-1

2268-2-02-1: DescriptionBoard Connector, 2 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2268-2-02-1 Overview

Board Connector, 2 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

2268-2-02-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.197 inch
subject depth	0.374 inch
body length	0.157 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2268
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

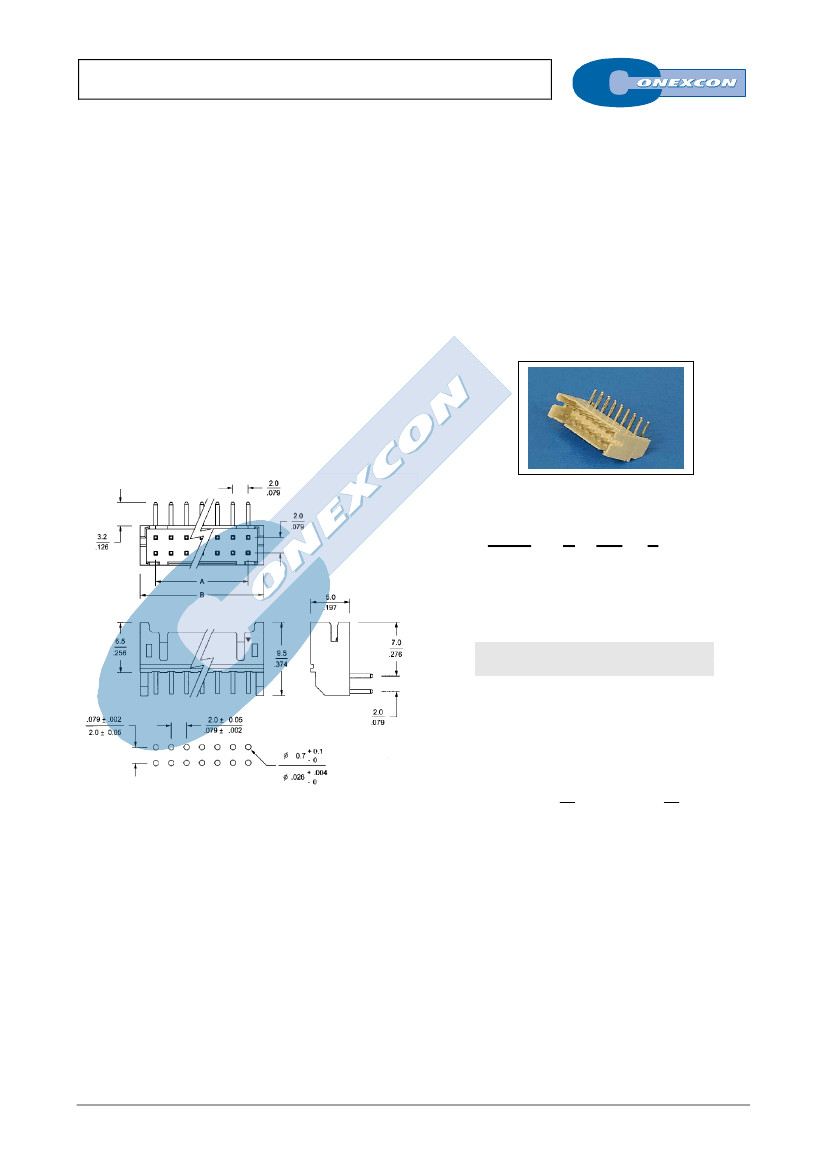

DUAL ROW SIDE ENTRY HEADER

2268 SERIES.

2.00 x 2.00 mm. (0.079” x 0.079”) pitch.

General Features

Electrical Features



Available in 6 through 36 circuits

Mates with 2.00 mm crimp housing 2265 serie

Tin plated 0.50 mm square pin

Fully shrouded with polarized slot



Voltage rating: < 250 V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric Withstanding Voltage: 800 V AC/minute

Insulation Resistance: >1000 MΩ

Materials

Mechanical features

Pin retention force to insulator: > 1.00 Kgf

Durability: 25 cycles



Insulator: Nylon 66 UL 94 V-0

Contact: Tin plated brass

Operating temperature: -25ºC to +105ºC

RoHS Compliant

Dimension Information

2268 -

T- XX- 1

1. Connector Serie

2. (T) Contacts Plating



T =

Tin-plated.

RECOMMENDED FINISH

3. (XX) Number of circuits



Available in 2 through 36 circuits

DIMENSIONS

2.00















2.00

















(XX) = Number of circuits

A-XX
