BTB08FH33-26TBOT-U: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size214KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

BTB08FH33-26TBOT-U Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

BTB08FH33-26TBOT-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
subject depth	0.128 inch
body length	0.472 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	200VAC V
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BTB08
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.4036 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

Preview

Download Datasheet

View All

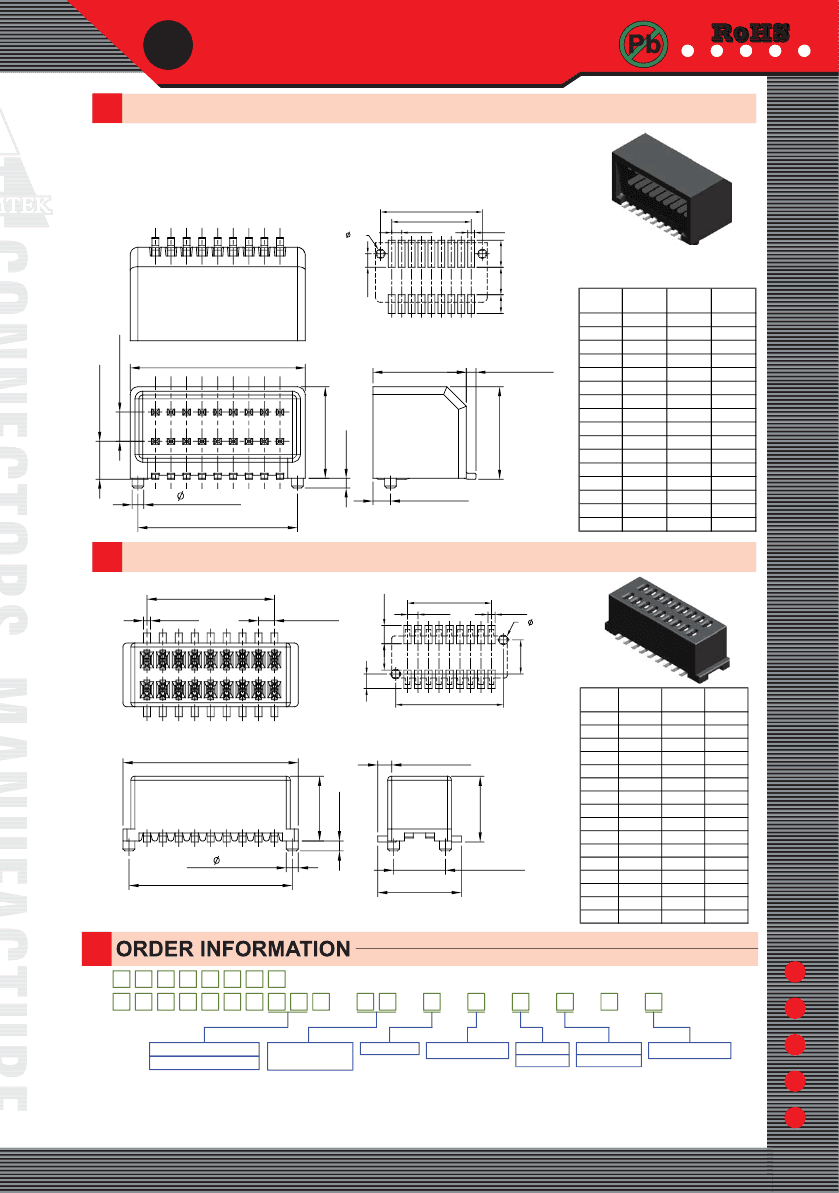

B

oard To Board 0.8mm

Board To Board Male 0.8mm Right Angle Type

Specifications

Current Rate:0.5 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:200V AC for one minute

Operation Temperature:-20°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:LCP

Terminal:Copper Alloy

Plating:Tin Plated

Part No.:BTB08MHR-XX-U

Board To Board Female 0.8mm H=3.3mm

No. of

Contacts

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

Dim. A

4.20

5.00

5.80

6.60

7.40

8.20

9.00

9.80

10.60

11.40

12.20

13.00

13.80

14.60

15.40

16.20

Dim. B

1.60

2.40

3.20

4.00

4.80

5.60

6.40

7.20

8.00

8.80

9.60

10.40

11.20

12.00

12.80

13.60

Dim. C

3.40

4.20

5.00

5.80

6.60

7.40

8.20

9.00

9.80

10.60

11.40

12.20

13.00

13.80

14.60

15.40

No. of

Contacts

Dim. A

1.60

2.40

3.20

4.00

4.80

5.60

6.40

7.20

8.00

8.80

9.60

10.40

11.20

12.00

12.80

13.60

Dim. B

4.00

4.80

5.60

6.40

7.20

8.00

8.80

9.60

10.40

11.20

12.00

12.80

13.60

14.40

15.20

16.00

Dim. C

3.40

4.20

5.00

5.80

6.60

7.40

8.20

9.00

9.80

10.60

11.40

12.20

13.00

13.80

14.60

15.40

Part No.:BTB08FH33-XX-U

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

B T B 0 8 M H R

B T B 0 8 F H 3 3

Female Insulator Height

33:

Insulator

Height H=3.3mm

-

X X

T:Tin Plated

T

B

B:Black Insulator

X

P:With Peg

-

T:Tube

R:Tape & Reel

U

U:RoHS + LCP

No. of Contacts

(06,08~36)

O:W/O Peg

Standard Recommended

Mating Height See Page 1-1

www.amtek-co.com.tw

1-6

BTB08FH33-26TBOT-U Related Products

	BTB08FH33-26TBOT-U	BTB08FH33-26TBPT-U	BTB08FH33-12TBOT-U	BTB08FH33-12TBPT-U	BTB08FH33-16TBPT-U
Description	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Amtek Technology Co., Ltd.	Amtek Technology Co., Ltd.	Amtek Technology Co., Ltd.	Amtek Technology Co., Ltd.	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	0.128 inch	0.128 inch	0.128 inch	0.128 inch	0.128 inch
body length	0.472 inch	0.472 inch	0.252 inch	0.252 inch	0.315 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e3	e3	e3	e3
Manufacturer's serial number	BTB08	BTB08	BTB08	BTB08	BTB08
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.4036 mm	3.4036 mm	3.4036 mm	3.4036 mm	3.4036 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	26	26	12	12	16
Board mount options	-	PEG	-	PEG	PEG
