PTT-124-01-L-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PTT-124-01-L-6

PTT-124-01-L-6: DescriptionBoard Connector, 144 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PTT-124-01-L-6 Overview

Board Connector, 144 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Black Insulator, ROHS COMPLIANT

PTT-124-01-L-6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
body width	0.472 inch
subject depth	0.079 inch
body length	1.896 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.112 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PTT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
Rated current (signal)	2.9 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.111 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	144
Evacuation force-minimum value	.834 N

Preview

Download Datasheet

View All

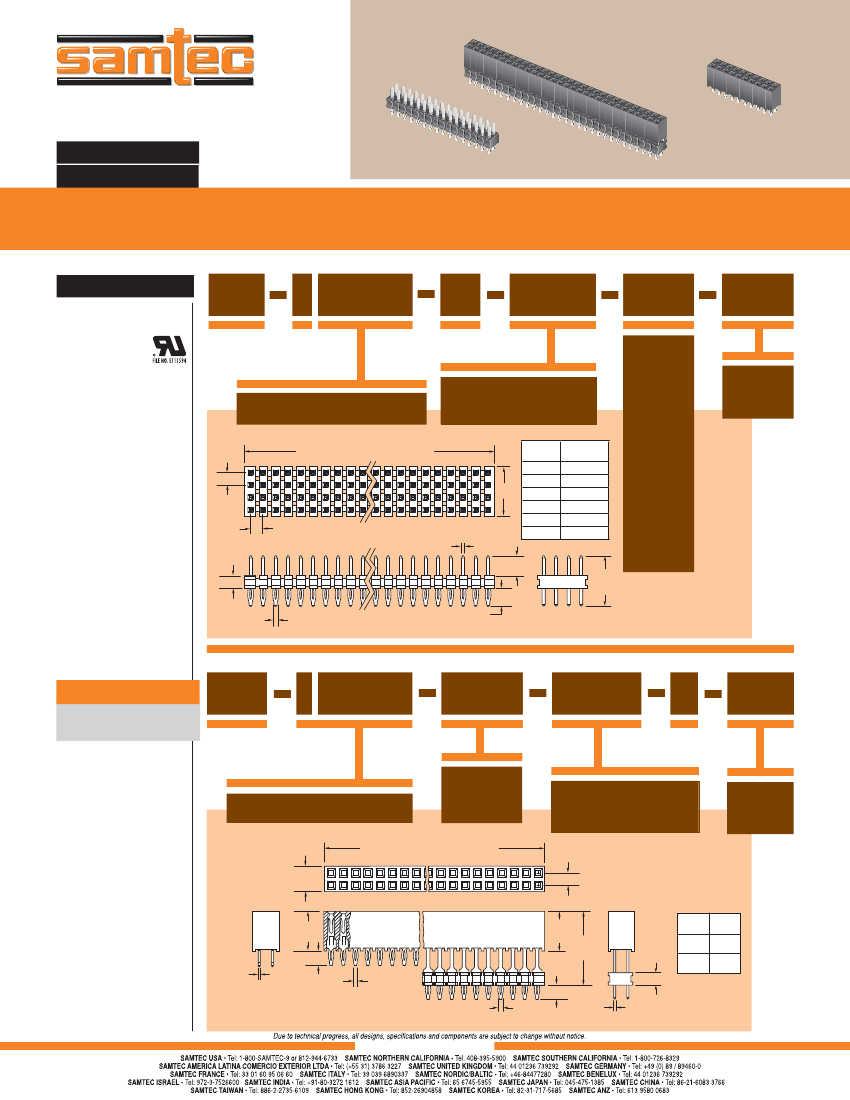

F-213

PTF–130–03–L–D

PTF–110–01–L–D

(2,00 mm) .0787"

PTT, PTF SERIES

PTT–116–01–L–D

PRESS FIT HEADERS & SOCKETS

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?PTT

or www.samtec.com?PTF

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

2A per contact

@ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Insertion Depth:

(2,67 mm) .105" to

(3,56 mm) .140"

Insertion Force:

(Single contact only)

4 oz (1,11 N) average

Normal Force:

60 grams (0,59 N) average

Withdrawal Force:

(Single contact only)

3 oz (0,83 N) average

Max Cycles:

100 with 30µ" (0,76 µm) Au

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

PTT

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

Mates with:

PTF, ESQT, PTHF,

SQW, SQT, SMM

–S

= Single Row

–L

02 thru 50

(2,00)

.0787

No. of positions x (2,00) .0787

= 10µ" (0,25 µm) Gold contact,

Matte Tin on tail

–D

= Double Row

–“XXX”

= Polarized

Position

–T

ROW

OPTION

(2,00) .079

(4,00) .158

(6,00) .236

(8,00) .314

(10,00) .393

(12,00) .472

= Triple Row

(2,00)

.0787

(0,50) .020 SQ

(3,20)

.126

–S

–D

–T

–Q

–5

–6

–Q

= Four Row

–5

= Five Row

(2,00)

.0787

–6

= Six Row

(8,03)

.316

(0,91)

.036

(2,82) .111

ALSO AVAILABLE

Press ﬁt tooling available.

Contact Samtec.

PTF

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

Mates with:

PTT, TMMH, TMM, MTMM,

MMT, TW, LTMM, ZLTMM

02 thru 50

Specify

LEAD STYLE

from chart

No. of positions x (2,00) .0787

+ (0,30) .012

–L

= 10µ" (0,25 µm) Gold on post,

Matte Tin on tail

–“XXX”

= Polarized

Position

(2,00)

.0787

(4,00)

.158

(-01)

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(6,35)

.250

(2,29)

.090

LEAD

STYLE

(6,35)

.250

(9,14)

.360

(-03)

(2,00)

.0787

– 01

–03

(0,30)

.012

(2,29)

.090

(0,50)

.020

Style –01

(0,84) .033

Style –03

(0,30) .012

WWW.SAMTEC.COM
