PEEL273P-30 datasheet, PDF - EEWORLD Datasheet

PEEL273P-30: DescriptionEE PLD, 30ns, PLA-Type, CMOS, PDIP24,; CategoryProgrammable logic devices Programmable logic; File Size351KB，6 Pages; ManufacturerAMI Semiconductor

Download Datasheet Parametric Compare View All

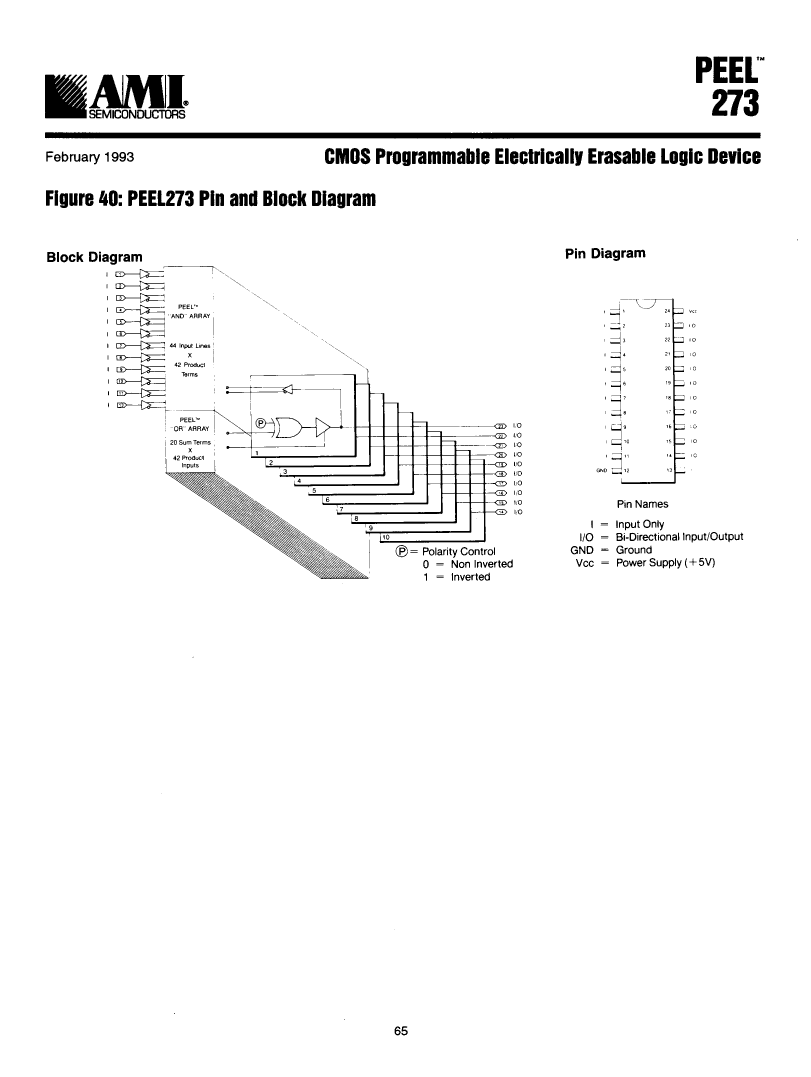

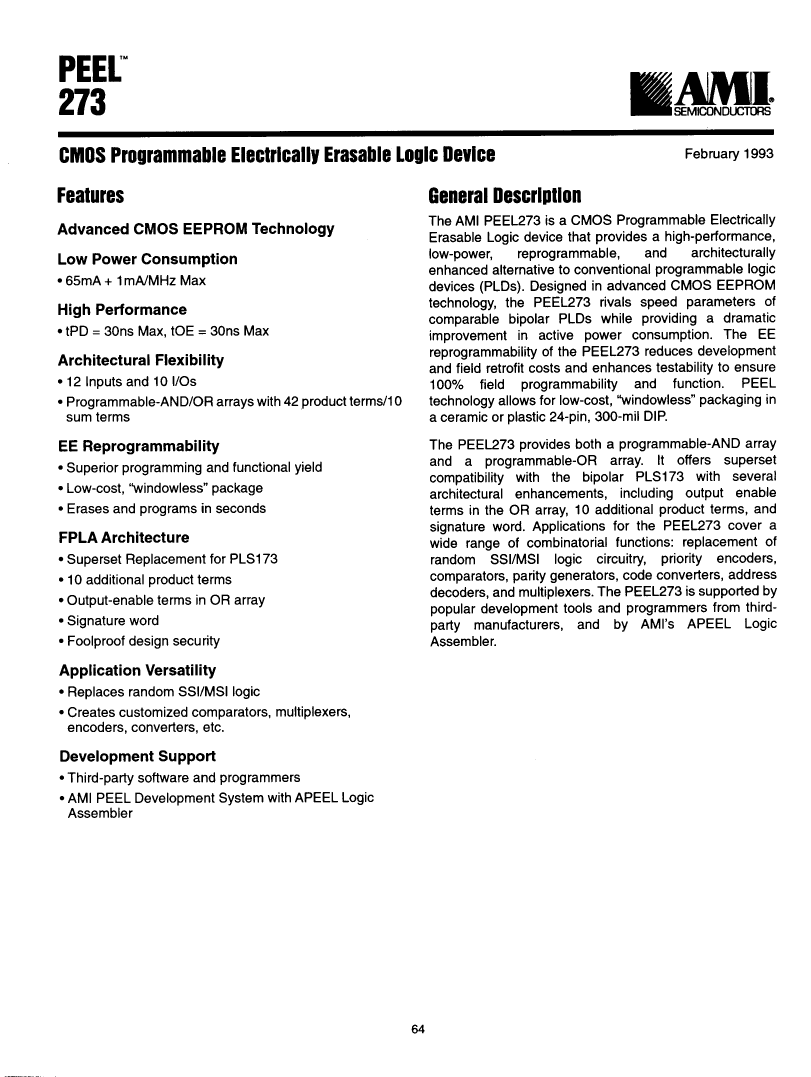

PEEL273P-30 Overview

EE PLD, 30ns, PLA-Type, CMOS, PDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMI Semiconductor
Reach Compliance Code	unknown
Architecture	PLA-TYPE
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Number of entries	22
Output times	10

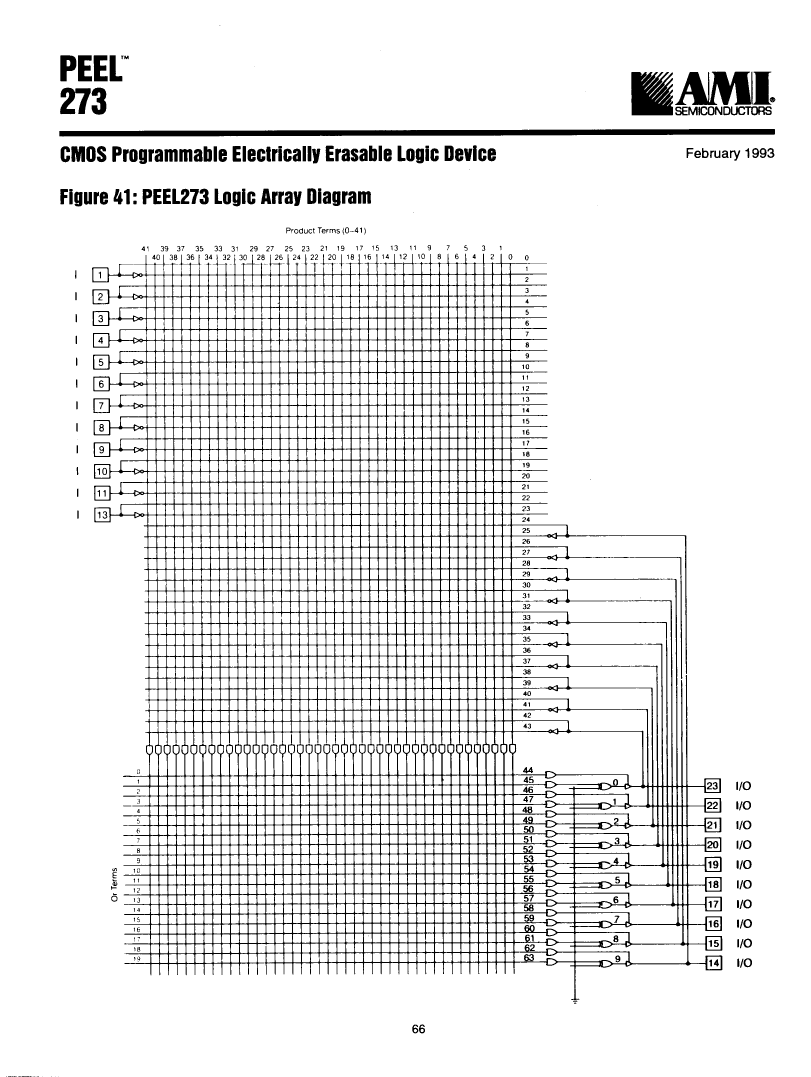

Number of product terms	42
Number of terminals	24

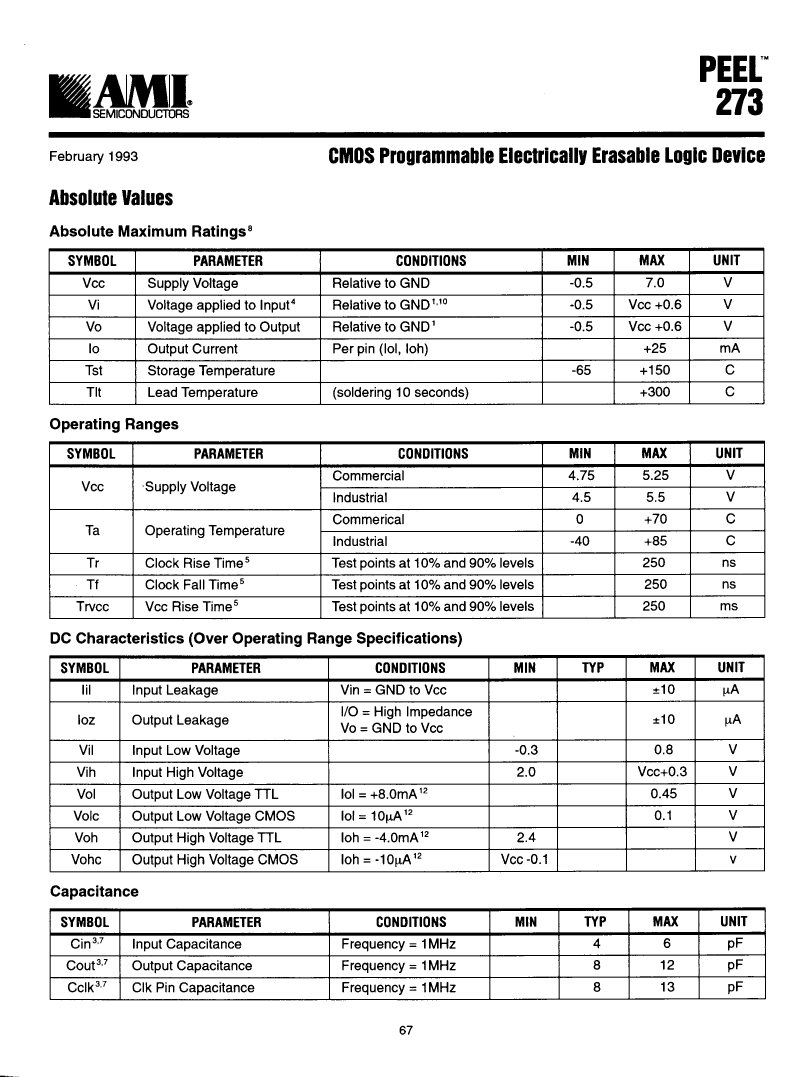

Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Programmable logic type	EE PLD

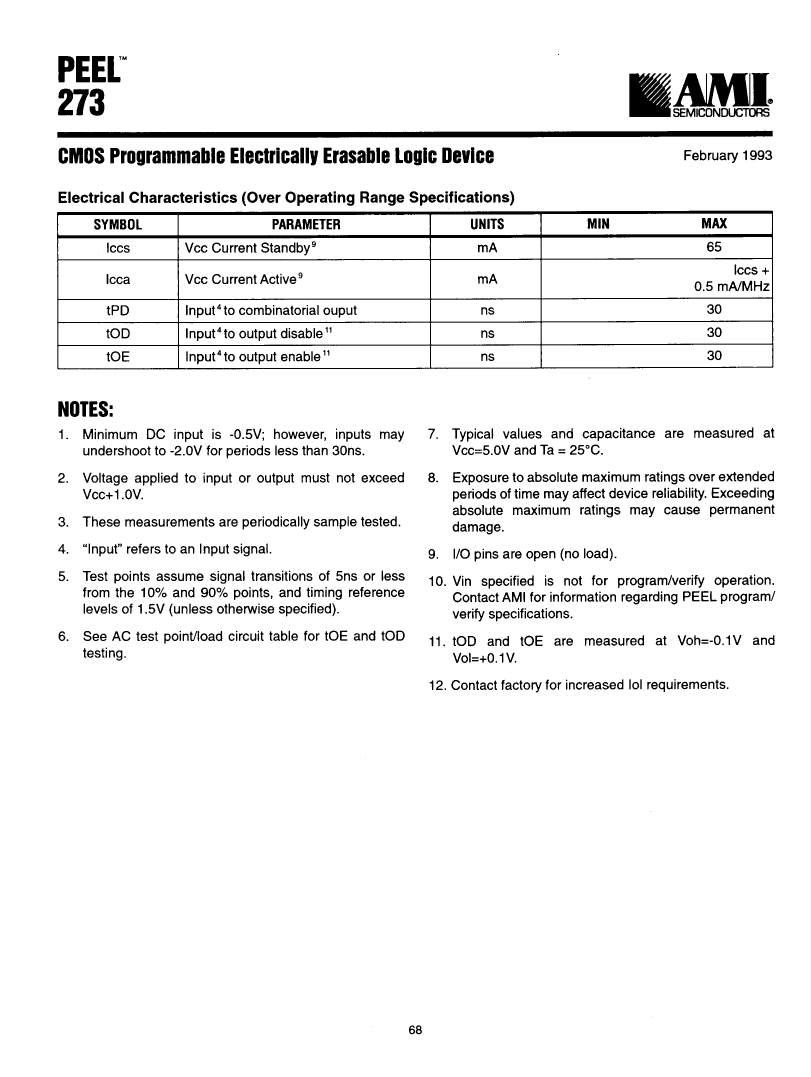

propagation delay	30 ns
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	PEEL273P-30	PEEL273C-15	PEEL273C-30	PEEL273P-15
Description	EE PLD, 30ns, PLA-Type, CMOS, PDIP24,	EE PLD, 15ns, PLA-Type, CMOS, CDIP24,	EE PLD, 30ns, PLA-Type, CMOS, CDIP24,	EE PLD, 15ns, PLA-Type, CMOS, PDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	AMI Semiconductor	AMI Semiconductor	AMI Semiconductor	AMI Semiconductor
Reach Compliance Code	unknown	unknown	unknown	unknown
Architecture	PLA-TYPE	PLA-TYPE	PLA-TYPE	PLA-TYPE
JESD-30 code	R-PDIP-T24	R-XDIP-T24	R-XDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0
Number of entries	22	22	22	22
Output times	10	10	10	10
Number of product terms	42	42	42	42
Number of terminals	24	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	30 ns	15 ns	30 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
