SMAJP4KE24CA-T Overview

Transient Suppressor,

SMAJP4KE24CA-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-609 code	e0
Humidity sensitivity level	1
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

SMAJP4KE6.8(C)A

THRU

SMAJP4KE550(C)A

Transient

Voltage Suppressor

6.8 to 550 Volts

400 Watt

DO-214AC

(SMAJ)( LEAD FRAME)

Features

For surface mount applicationsin in or der to optimize

boar d space

L ow pr ofil e package

Fast response time: typical less than 1.0ps from 0 volts to

minimum

Low inductance

UL Recognized File # E222849

Mechanical Data

CASE: JEDEC DO-214AC

Terminals: solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes posit ive end (cathode)

except Bidirectional

Maximum soldering temperature: 250 C for 10 seconds

Maximum Ratings @ 25

C Unless Otherwise Specified

Peak Pulse Current on

See Table 1 Note: 1

10/1000us waveform

Peak Pulse Power

400W

Note: 1,

Dissipation

Peak Forward Surge

FSM)

40A

Note: 3

Current

Operation And Storage T

, T

STG

Temperature Range

-55

C to

+150

DIMENSIONS

INCHES

MIN

.079

.050

.002

---

.030

.065

.189

.157

.090

MIN

2.00

1.27

.05

---

.76

1.65

4.80

4.00

2.25

DIM

MAX

.096

.064

.008

.02

.060

.091

.220

.181

.115

MAX

2.44

1.63

.20

.51

1.52

2.32

5.59

4.60

2.92

NOTE

SUGGESTED SOLDER

PAD LAYOUT

0.085 ”

MA X

5”

NOTES:

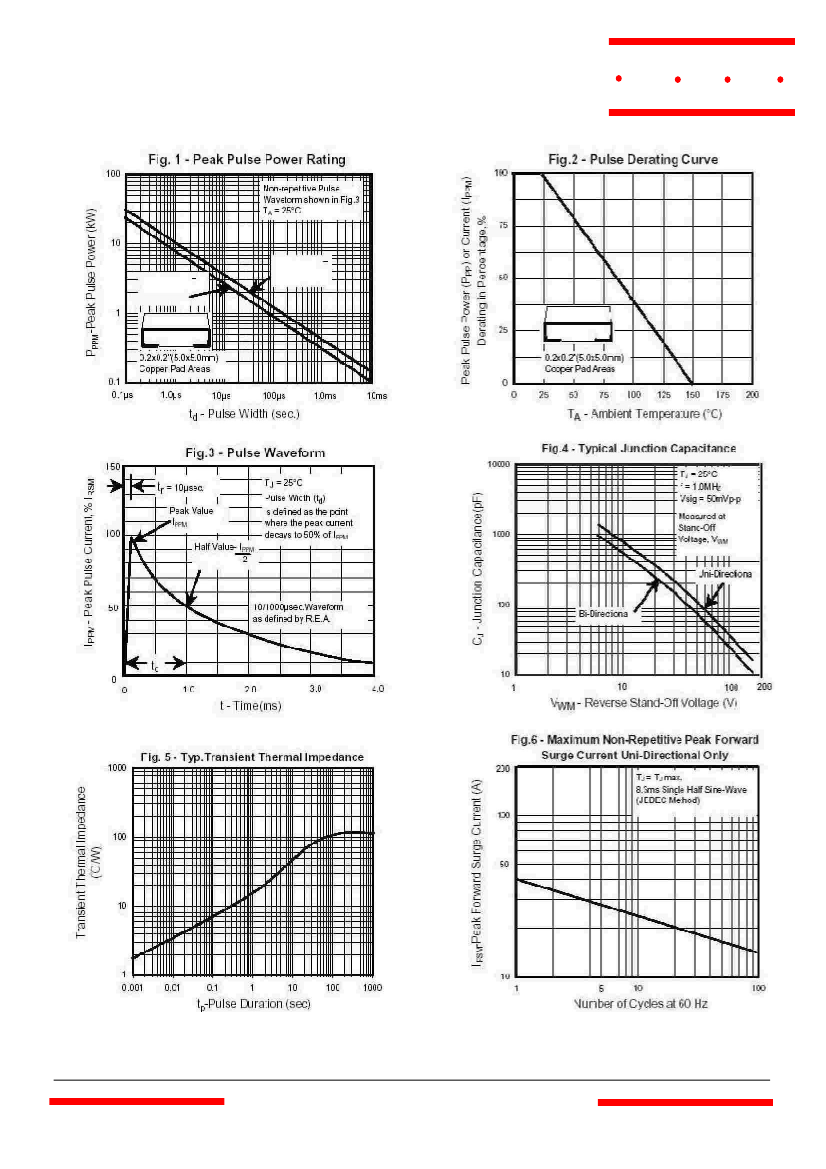

Non-repetitive current pulse, per Fig.3 and derated above

=25 C per Fig.2.

Mounted on 5.0mm copper pads to each terminal.

8.3ms, single half sine wave duty cycle=4 pulses per. Minute

maximum.

0.058 ” MI N

5”

0.05

MI N

5”

www.mccsemi.com

Revision: 2

2005/05/19
