PM1008-18NM-RC: Description1 ELEMENT, 1.2 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size791KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM1008-18NM-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM1008-18NM-RC	-	-	View	Buy Now

PM1008-18NM-RC Overview

1 ELEMENT, 1.2 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

PM1008-18NM-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	1008
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	14 weeks
uppercase and lowercase codes	1008
structure	Rectangul
core material	CERAMIC
DC Resistance	0.11 Ω
Nominal inductance(L)	0.018 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.6 mm
Package length	2.5 mm
Package form	SMT
Package width	2 mm
method of packing	TR, Embossed, 7 Inch
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.6 A
self resonant frequency	2500 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q IS MEASURED AT 350 MHZ
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	100 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

1008 size

■

Available in E12 series

■

High Q up to 60 typ.

model

Applications

■

Mobile phones

■

Cellular phones

■

CTV, VCR, HIC, FDD

■

High operating temperature of 125 °C

■

RoHS compliant*

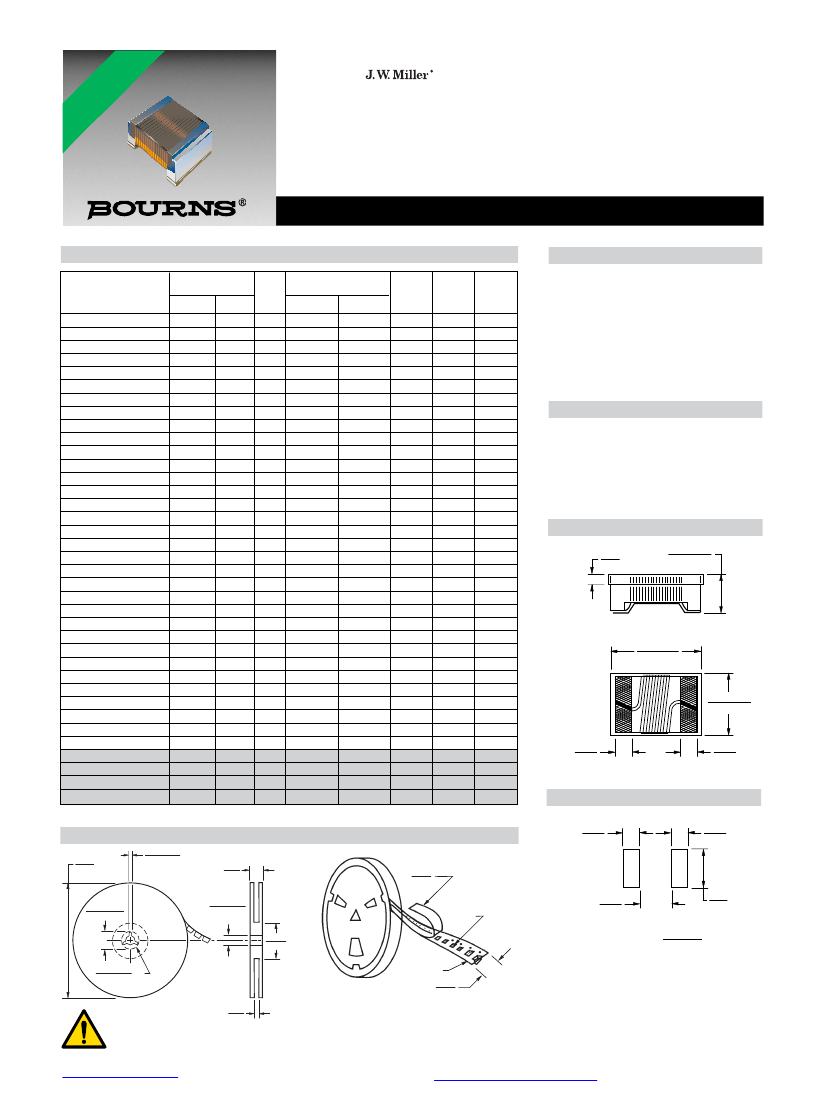

PM1008 Series - High Q Chip Inductors

Electrical Speciﬁcations

Inductance

Test Frequency (MHz)

Bourns Part No.

PM1008-10NM-RC

PM1008-12NM-RC

PM1008-15NM-RC

PM1008-18NM-RC

PM1008-22NM-RC

PM1008-27NM-RC

PM1008-33NM-RC

PM1008-39NM-RC

PM1008-47NM-RC

PM1008-56NK-RC

PM1008-68NK-RC

PM1008-82NK-RC

PM1008-R10K-RC

PM1008-R12K-RC

PM1008-R15K-RC

PM1008-R18K-RC

PM1008-R22K-RC

PM1008-R27K-RC

PM1008-R33K-RC

PM1008-R39K-RC

PM1008-R47K-RC

PM1008-R56K-RC

PM1008-R68K-RC

PM1008-R82K-RC

PM1008-1R0K-RC

PM1008-1R2K-RC

PM1008-1R5K-RC

PM1008-1R8K-RC

PM1008-2R2K-RC

PM1008-2R7K-RC

PM1008-3R3K-RC

PM1008-3R9K-RC

PM1008-4R7K-RC

PM1008-5R6K-RC

PM1008-6R8K-RC

PM1008-8R2K-RC

PM1008-100K-RC

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

Tol. %

±20

±10

Min.

100

7.9

2.5

500

350

100

7.9

SRF

Min.

(MHz)

4100

3300

2500

2400

1600

1500

1300

1000

950

850

750

700

600

570

500

450

415

375

350

290

250

200

160

RDC

Max.

(Ω)

0.08

0.09

0.10

0.11

0.12

0.13

0.14

0.15

0.16

0.18

0.20

0.22

0.56

0.63

0.70

0.77

0.84

0.91

1.05

1.12

1.19

1.33

1.55

2.30

1.75

2.00

2.30

2.60

2.80

3.20

3.24

3.60

4.00

4.90

6.00

8.00

4.20

I rms

Max.

(mA)

600

500

600

500

400

470

400

360

330

280

270

250

195

185

180

175

180

150

100

200

Temperature Rise

.................40 ˚C max. at rated current

Operating Temperature

................................-40 °C to +125 °C

Storage Temperature

................................-40 °C to +125 °C

Reﬂow Soldering .. 230 °C, 50 sec. max.

Resistance to Soldering Heat

...............................260 ˚C, 5 seconds

Core Material

-10NM thru -R82K ..................Ceramic

-1R0K thru -100K ......................Ferrite

Wire ......Enamelled Copper (1W1E180)

Terminal ...........................Mo/Mn+Ni+Au

Packaging .................. 2,000 pcs per reel

Product Dimensions

0.5

(.020)

1.6

0.2

(.062

.008)

General Speciﬁcations

Materials

2.50

0.2

(.098

.008)

2.0

0.2

(.079

.008)

0.5

(.020)

0.5

(.020)

NOTE: Shaded models are not recommended for new designs.

Recommended Layout

REF.

0.65

(.026)

0.65

REF.

(.026)

Packaging Speciﬁcations

178.0

(7.00)

DIA.

2.0

0.5

(.079

.020)

12.5

(.492)

THICKNESS

0.10

(.004)

MAX.

EMBOSSED

CAVITY

50.0

(1.969)

21.0

0.8

(.827

.031)

13.0

0.5

(.512

.020)

DIA.

REF.

1.20

(.047)

2.3

REF.

(.091)

DIMENSIONS:

EMBOSSED

CARRIER

8.0

(.315)

(INCHES)

13.0

0.5

DIA.

(.512

.020)

10.0

(.393)

WARNING Cancer and Reproductive Harm

www.P65Warnings.ca.gov

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice. Users should verify actual device performance in their speciﬁc

applications. The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the

last page of this document, and at

www.bourns.com/docs/legal/disclaimer.pdf.

REV. 01/15
