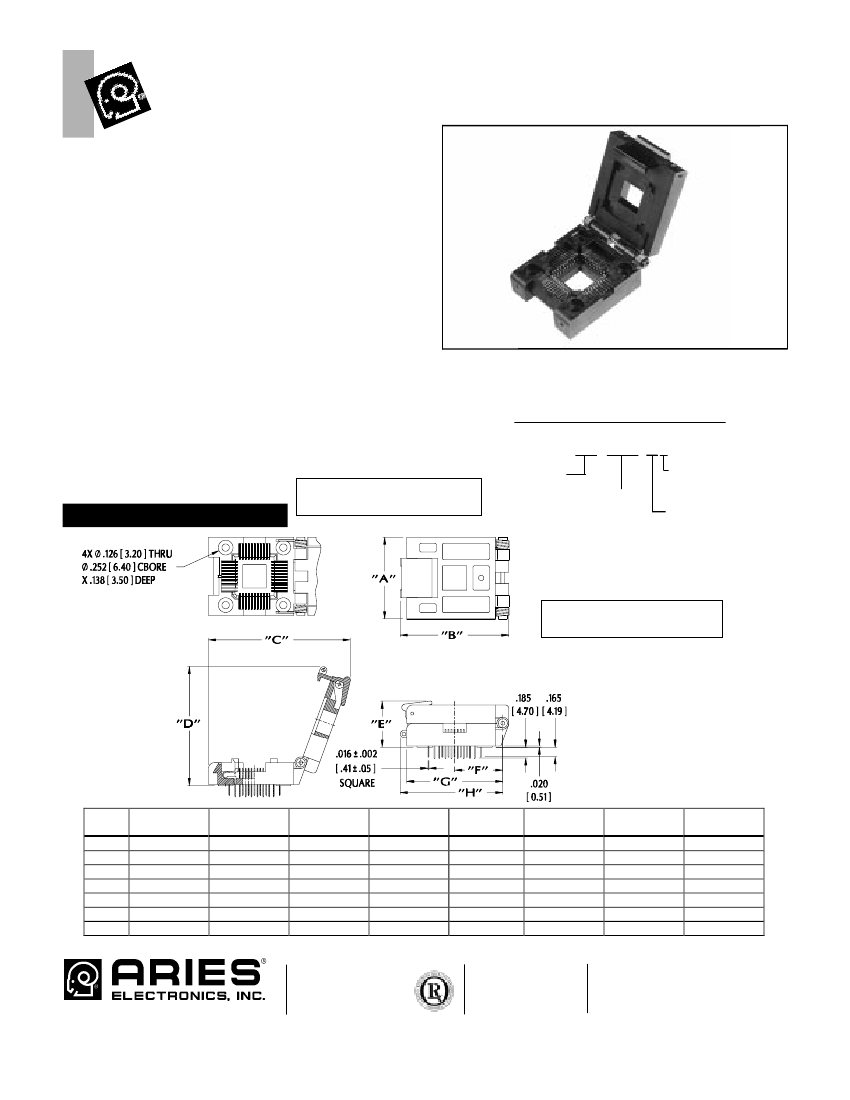

Series 536 PLCC Test & Burn-in Zero
Insertion Force Sockets
FEATURES:
• A choice of several pin count devices can be inserted with-
out bending or otherwise damaging the legs, since no
force is required to either insert or remove the
component from the socket.
• Compatible with pick and place operations.
• Corner posts provide positive package registration.
• Socket accepts JEDEC Types MO-047, MO-052, and other
ceramic, leadless or J-lead packages (shimms required).
SPECIFICATIONS:
• Socket body is black UL 94V-0 Glass-filled Polyphenylene
Sulfide (PPS).
• Contacts are Beryllium Copper Alloy 172.
• Contact plating is 12µ [.30µm] min. Gold per MIL-G-45204
over 50µ [1.27µm] min. Nickel per QQ-N-290.
• Hardware is Stainless Steel.
Note: Aries specializes in custom design and production. In addition to the stan-
• Contact current rating=1 Amp.
dard products shown on this page, special materials, platings, sizes, and configu-
rations can be furnished, depending on quantities. Aries reserves the right to
• Contact resistance=30 mOhms max. (initial).
change product specifications without notice.
• Insulation resistance=1000 MOhms min.
• Dielectric strength=700 VAC cont. for 1 minute.
ORDERING INFORMATION
• Self inductance=8.9
ηH
max. at 10 MHz.
• Operating temperature=-67°F to 338°F [-55°C to 170°C].
X X - 5 3 6 - 11
• Life cycle: 10,000 insertions minimum.
MOUNTING CONSIDERATIONS:
No. of pins
Gold over
• See Data Sheet No. 10007.
(see table )
Nickel plating
All tolerances ± .005 [.13]
Series
unless otherwise specified
Solder tail pin
ALL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
See Data Sheet No. 10007
for mounting considerations.
No. of
Pins
20
28
32
44
52
68
84
Dim. “A”
1.025 [26.04]
1.180 [29.97]
1.180 [29.97]
1.339 [34.01
1.500 [38.10]
1.654 [42.01]
1.890 [48.00]
Dim. “B”
1.454 [36.93]
1.605 [40.77]
1.583 [40.21]
1.772 [45.01]
1.920 [48.77]
2.343 [59.51]
2.580 [65.53]
Dim. “C”
1.993 [50.62]
2.207 [56.06]
2.160 [54.86]
2.400 [60.96]
2.596 [65.94]
3.050 [77.47]
3.360 [85.34]
Dim. “D”
1.025 [26.04]
1.180 [29.97]
1.180 [29.97]
1.339 [34.01
1.500 [38.10]
1.654 [42.01]
1.890 [48.00]
Dim. “E”
.761 [19.33]
.787 [19.99]
.725 [18.42]
.787 [19.99]
.820 [20.83]
.926 [23.52]
.926 [23.52]
Dim. “F”
.620 [15.75]
.690 [17.53]
.690 [17.53]
.787 [19.99]
.830 [21.08]
.906 [23.01]
1.063 [27.00]
Dim. “G”
1.256 [31.90]
1.180 [29.97]
1.380 [35.05]
1.339 [34.01]
1.700 [43.18]
1.654 [42.01]
1.890 [48.00]
Dim. “H”
1.454 [36.93]
1.520 [38.68]
1.495 [37.97]
1.673 [42.49]
1.821 [46.25]
2.244 [57.00]
2.480 [62.99]
