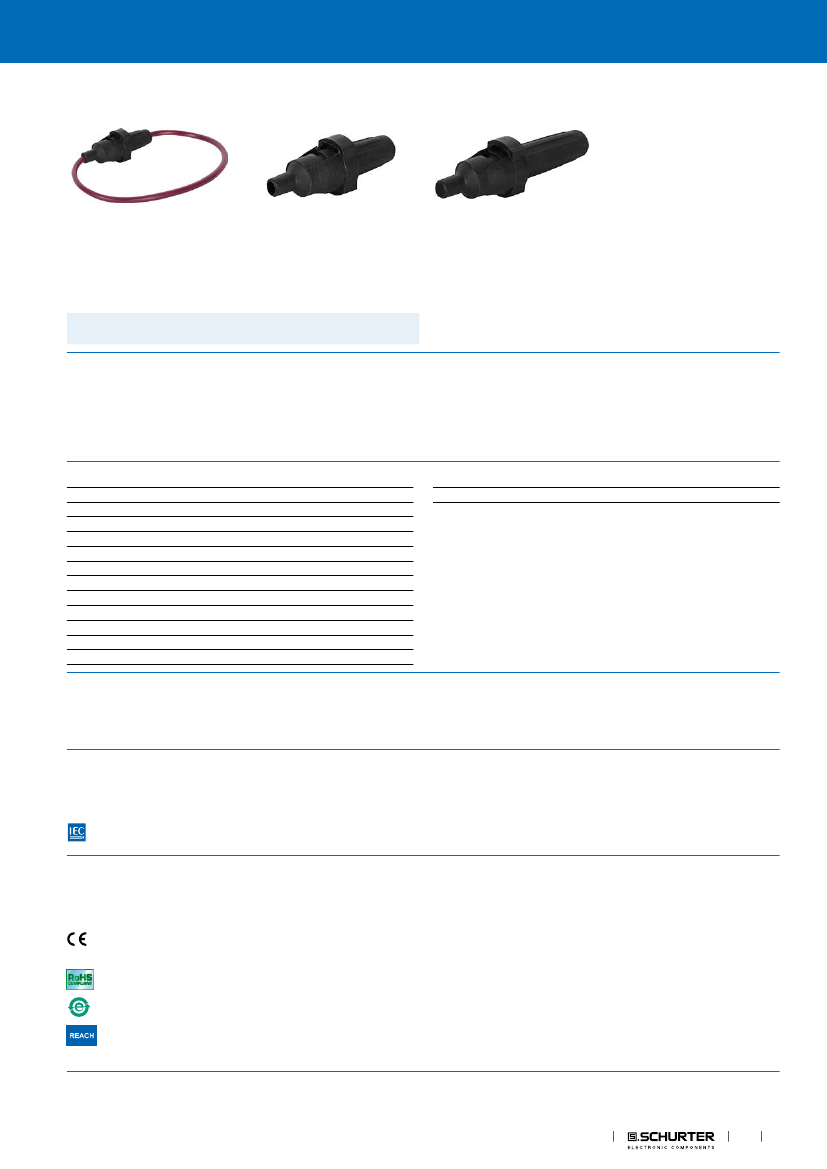

Fuse holder
https://www.schurter.com /PG02
FDI
Inline Fuseholder, 5x20 / 6.3x32 mm
5x20 mm with wire leads, 8601.2001.08
5x20 mm, 8601.2000
6.3x32 mm, 8601.2005
32 VAC · 2.5 W / 6.3 A · 32 VDC
Description
See below:
Approvals and Compliances
Applications
- Automotive applications/aftermarket
- Audio aftermarket
- Lighting aftermarket
- Inline Fuseholder
Weblinks
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product, Microsite
Technical Data
Shock-Safe Category
Fuse-Link
Mounting
Terminal
Rated Voltage
Rated current
Rated Power Acceptance IEC
Degree of Protection
Admissible Ambient Air Temp.
Material: Socket
Material: Terminals
Storage Conditions
PC2
5 x 20 or 6.3 x 32 mm
In-line
Wires
32 VAC , 32 VDC
6.3 A
2.5 W / 6.3 A @ Ta 23 °C
IP 40
-40 °C to +85 °C
Thermoplastic, UL 94V-0
Tin-Plated Brass
0 °C to 60 °C, max. 70% r.h.
Contact Resistance
< mΩ at 20 mV
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Fuses
1
FDI
Dimension [mm]
48 mm
https://www.schurter.com /PG02
Fuse holder
48 max.
16
60 max.
5x20 mm
6.3x32 mm
Mounting instruction
1) Wire
2) Contact
3) Spring
Crimping: Standard Crimping Tool (0.5 - 2.5 mm
2
)
Crimping Profile: Mandrel Pressing
All Variants
Holder
l
l
l
l
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Wire Length: 8"
Fuse-Link
5 x 20mm
5 x 20mm
6.3 x 32mm
6.3 x 32mm
Wire
-
18 AWG
-
14 AWG
Colour Wire
-
dark pink
-
pink
Length [mm]
-
200
-
200
Order Number
8601.2000
8601.2001.08
8601.2005
8601.2005.08
█
█
█
Packaging Unit
Bulk (50 pcs.)
16
2
Fuses
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
02.07.2018
