BYS10-35HE3: DescriptionDIODE 1.5 A, 35 V, SILICON, RECTIFIER DIODE, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size177KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BYS10-35HE3 Overview

DIODE 1.5 A, 35 V, SILICON, RECTIFIER DIODE, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN, Rectifier Diode

BYS10-35HE3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS, HIGH RELIABILITY
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	40 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

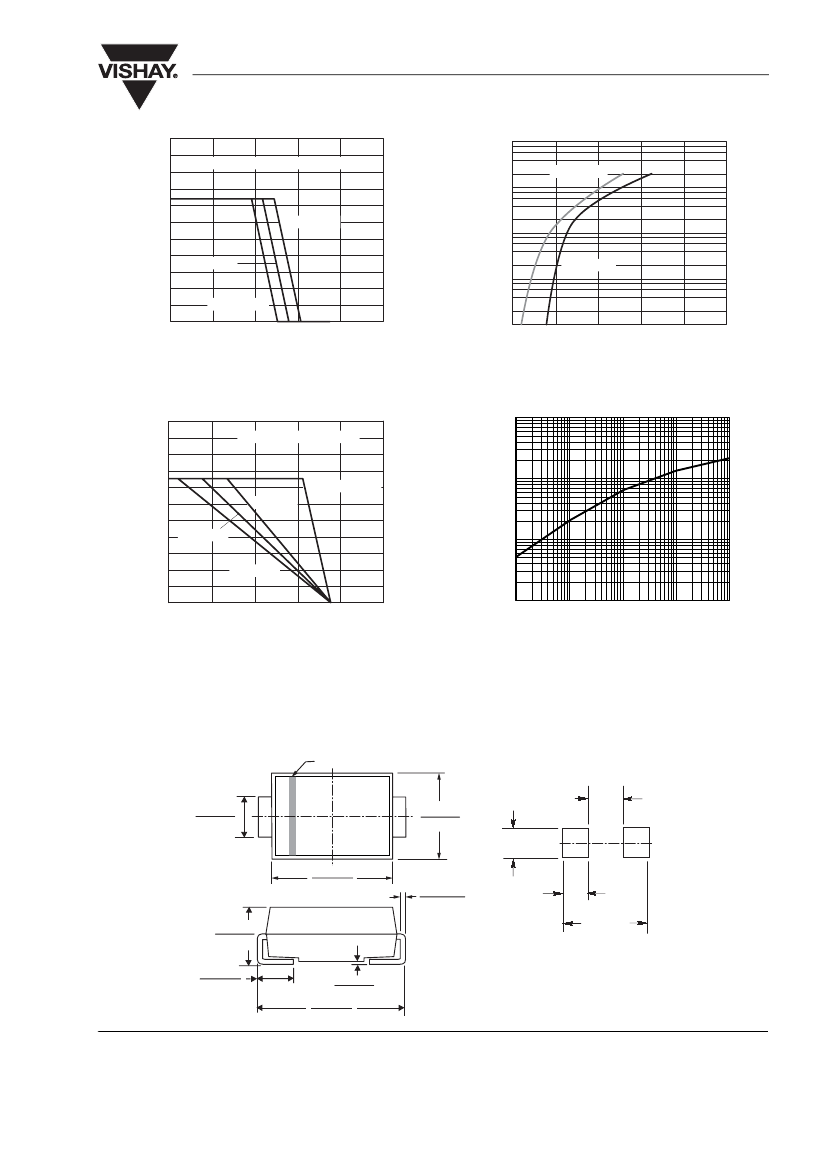

BYS10-25 thru BYS10-45

Vishay General Semiconductor

Surface Mount Schottky Barrier Rectifier

Major Ratings and Characteristics

F(AV)

RRM

FSM

max.

1.5 A

25 V to 45 V

40 A

0.50 V

150 °C

DO-214AC (SMA)

Features

•

Low profile package

Ideal for automated placement

Guardring for overvoltage protection

Low power losses, high efficiency

Very low switching losses

High surge capability

Meets MSL level 1, per J-STD-020C

Solder Dip 260 °C, 40 seconds

Mechanical Data

Case:

DO-214AC (SMA)

Epoxy meets UL-94V-0 Flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002B and JESD22-B102D

E3 suffix for commercial grade, HE3 suffix for high

reliability grade (AEC Q101 qualified)

Polarity:

Color band denotes the cathode end

Typical Applications

For use in low voltage high frequency inverters, free-

wheeling, dc-to-dc converters, and polarity protection

applications

Maximum Ratings

= 25 °C unless otherwise specified

Parameter

Device marking code

Maximum repetitive peak reverse voltage

Maximum average forward rectified current

Peak forward surge current single half sine-wave

superimposed on rated load

Junction and storage temperature range

at 8.3 ms

at 10 ms

RRM

F(AV)

FSM

, T

STG

Symbol

BYS10-25

BYS 025

BYS10-35

BYS 035

1.5

- 65 to + 150

BYS10-45

BYS 045

°C

Unit

Document Number 86013

14-Jul-05

www.vishay.com

BYS10-35HE3 Related Products

	BYS10-35HE3	BYS10-35E3	BYS10-45E3	BYS10-25HE3	BYS10-25E3	BYS10-45HE3
Description	DIODE 1.5 A, 35 V, SILICON, RECTIFIER DIODE, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 35 V, SILICON, RECTIFIER DIODE, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 45 V, SILICON, RECTIFIER DIODE, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 25 V, SILICON, RECTIFIER DIODE, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 25 V, SILICON, RECTIFIER DIODE, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN, Rectifier Diode	DIODE 1.5 A, 45 V, SILICON, RECTIFIER DIODE, DO-214AC, LEAD FREE, PLASTIC, SMA, 2 PIN, Rectifier Diode
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
package instruction	R-PDSO-C2	LEAD FREE, PLASTIC, SMA, 2 PIN	LEAD FREE, PLASTIC, SMA, 2 PIN	R-PDSO-C2	LEAD FREE, PLASTIC, SMA, 2 PIN	R-PDSO-C2
Contacts	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maker	Vishay	-	Vishay	Vishay	Vishay	Vishay
Base Number Matches	-	1	1	1	1	-
