BZX84B5V6: DescriptionZener Diode, 5.6V V(Z), 1.96%, 0.41W, Silicon, Unidirectional, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size112KB，5 Pages; ManufacturerPromax-Johnton Electronic Corporation

Download Datasheet Parametric Compare View All

BZX84B5V6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZX84B5V6	-	-	View	Buy Now

BZX84B5V6 Overview

Zener Diode, 5.6V V(Z), 1.96%, 0.41W, Silicon, Unidirectional, PLASTIC PACKAGE-2

BZX84B5V6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Promax-Johnton Electronic Corporation
package instruction	R-PDSO-G3
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.41 W
Certification status	Not Qualified
Nominal reference voltage	5.6 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1.96%
Working test current	5 mA

Preview

Download Datasheet

View All

DATA SHEET

BZX84C SERIES

SURFACE MOUNT SILICON ZENER DIODES

VOLTAGE

2.4 - 39 Volts

POWER

410 mWatts

SOT- 23

Unit: inch (mm)

FEATURES

• Planar Die construction

• 410mW Power Dissipation

.056(1.40)

.047(1.20)

.119(3.00)

.110(2.80)

• Ideally Suited for Automated Assembly Processes

• Pb free product are available : 99% Sn above can meet Rohs

environment substance directive request

.007(.20)MIN

MECHANICAL DATA

• Case: SOT-23, Molded Plastic

• Terminals: Solderable per MIL-STD-202G, Method 208

• Polarity: See Diagram Below

• Approx. Weight: 8mg

• Mounting Position: Any

.083(2.10)

.066(1.70)

.006(.15)

.002(.05)

.006(.15)MAX

.020(.50)

.013(.35)

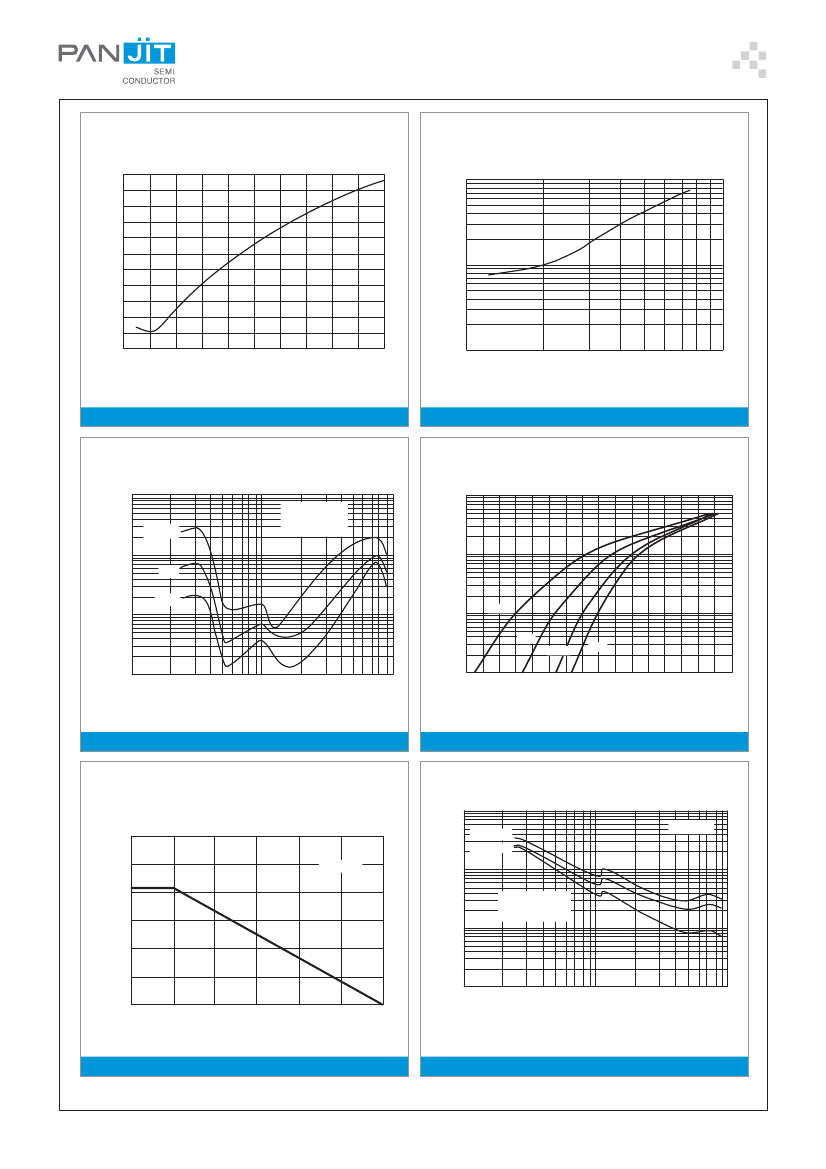

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

P ar m et r

M axi um For ar Volage D r p atI =10m A

w d

P ow erD i si aton ( ot s A )at25

s p i N e

P eak For ar S ur e C urent 8. m s si gl hal

w d

r , 3

n e

si e- ave superm posed on r t d l ad ( E D E C m et od) ( ot s B )

n w

ae o

N e

O per tng Juncton and S t r geTem per t r R ange

aue

S ym bol

FSM

Val e

410

- 5 t +150

5 o

.044(1.10)

.035(0.90)

.103(2.60)

U nis

A m ps

SINGLE

( Note C )

NOTES:

A. Mounted on 5.0mm

(.013mm thick) land areas.

B. Measured on 8.3ms, single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.

C. For Structure Purpose only.

.086(2.20)

STAD-NOV.19.2004

PAGE . 1
