FTR-C1GB003G-1: DescriptionPower/Signal Relay, POWER/SIGNAL RELAY, DPDT, LATCHED, 0.047A (COIL), 3VDC (COIL), 140mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size440KB，8 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FTR-C1GB003G-1 Overview

Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, LATCHED, 0.047A (COIL), 3VDC (COIL), 140mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

FTR-C1GB003G-1 Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
ECCN code	EAR99
body width	7.5 mm
body height	9.65 mm
Body length or diameter	15 mm
Maximum coil current (DC)	0.047 A
Coil operating voltage (DC)	2.25 V
Coil power	140 mW
Coil release voltage (DC)	2.25 V
Coil resistance	64 Ω
Maximum coil voltage (DC)	3 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	1A@250VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@220VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT
operating hours	10 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
physical size	15mm x 7.5mm x 9.65mm
Guideline	CSA; EN; IEC; UL
Relay action	LATCHED
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	10 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

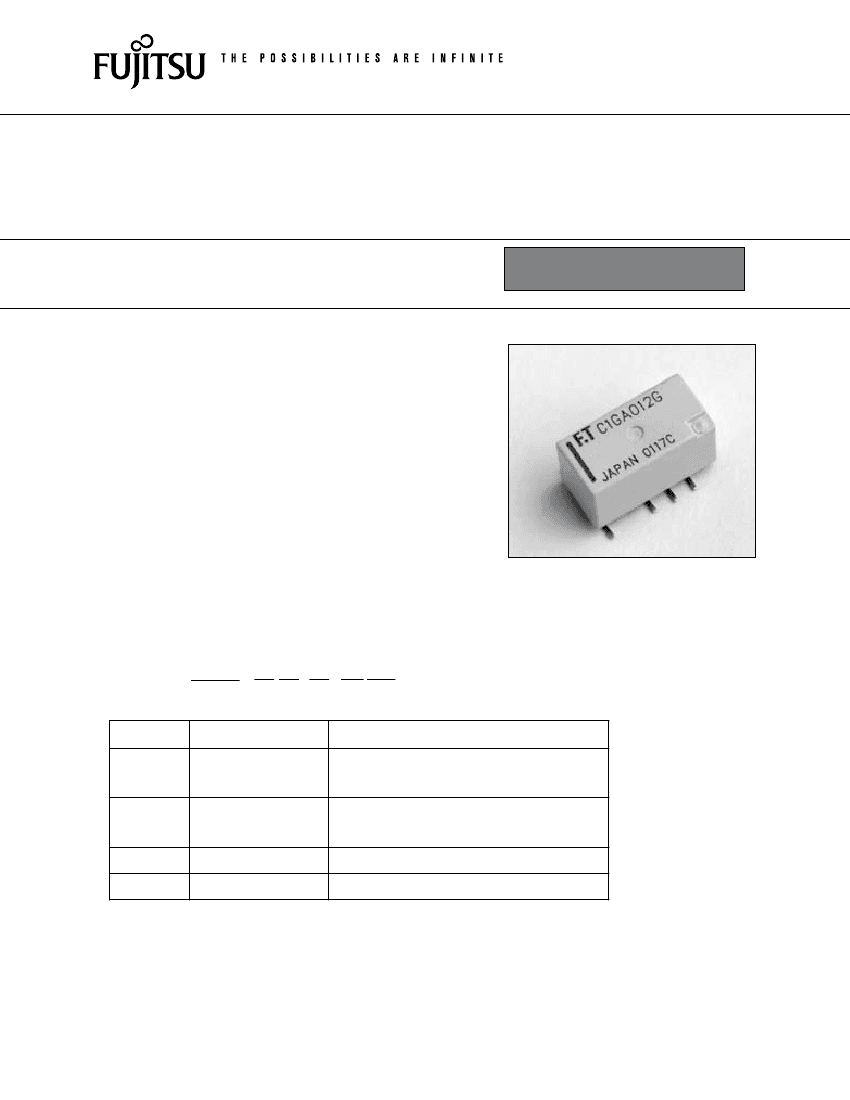

FTR-C1 Series

ULTRA MINIATURE RELAY

SIGNAL RELAY

FTR-C1 Series

FEATURES

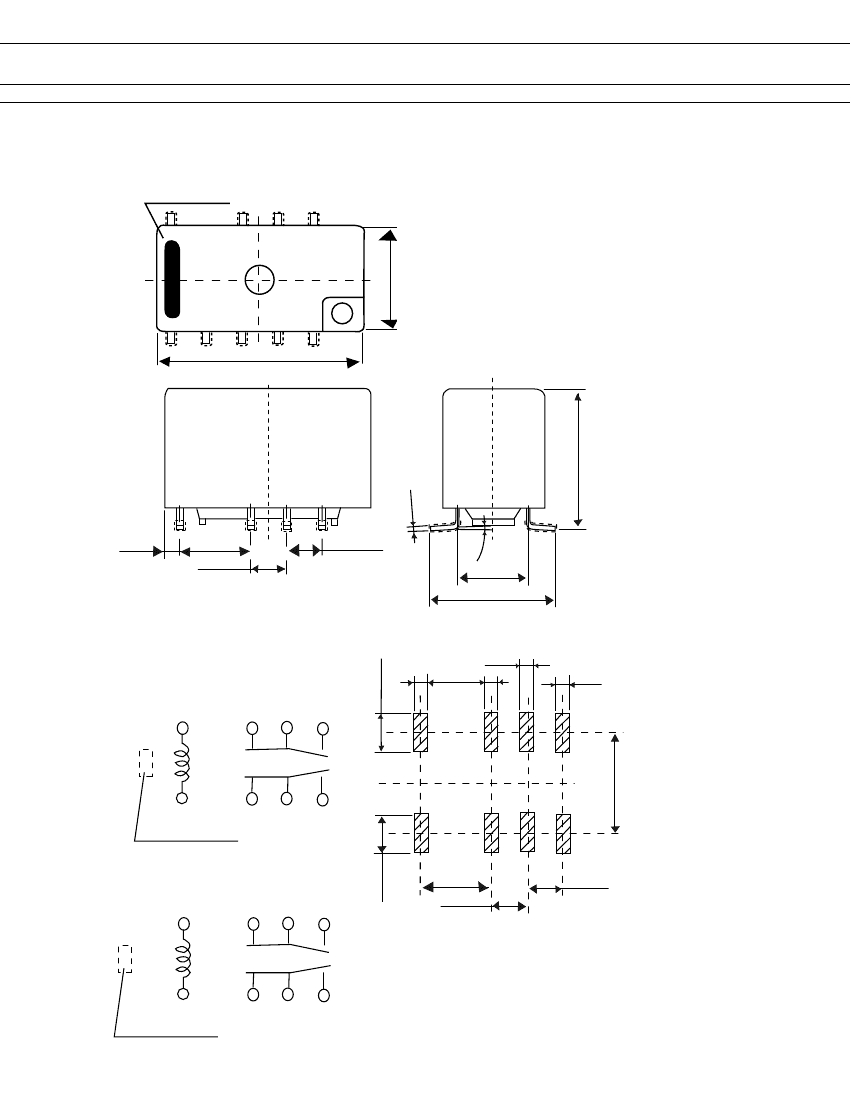

Dimensions of large contact gap relay

Height:

9.3 mm maximum (THT)

9.65 mm maximum (SMT)

Length:

5 mm maximum

Width:

7.5 mm maximum

Conforms

to IEC60950 / EN60950 / UL950/ C22.2

No.950 spacing & high breakdown voltage

Clearance:

2.0 mm ( coil and contacts)

Creepage:

2.5 mm ( coil and contacts)

HIGH RELIABILITY

Bifurcated contacts

Low

power consumption 280 mW (latching type

40mW)

RoHS

Compliant since beginning of production

RoHS compliant

ORDERING INFORMATION

[Example]

(a)

(b)

(c)

(d)

(e)

FTR-C

(a)

C A 02 G-(B05)*

(b) (c) (d) (e) (f)

FTR-C1

C: Through hole type

G: Surface mount type

A: Standard Type

B: Single coil latching type

Nominal Voltage

G: Silver alloy

Series Name

Terminal

Appearance

Operation Function

Coil Number

Contact Material

Remarks: Actual marking on relay would not carry code FTR and be as below:

Ordering code

Actual marking

FTR-C1CA03G

→

C1CA03G

* If ordering tape and reel package, please add “B05” after the partnumber (tape and reel is only available for

SMT type, example: FTR-CGA003G-B05

FTR-C1GB003G-1 Related Products

	FTR-C1GB003G-1	FTR-C1GA024G-1	FTR-C1GA4.5G-1	FTR-C1GB005G-1	FTR-C1GB012G-1	FTR-C1GB024G-1	FTR-C1GB4.5G-1	FTR-C1GA003G-1	FTR-C1GA005G-1	FTR-C1GA012G-1
Description	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, LATCHED, 0.047A (COIL), 3VDC (COIL), 140mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.013A (COIL), 24VDC (COIL), 300mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.062A (COIL), 4.5VDC (COIL), 280mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, LATCHED, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, LATCHED, 0.012A (COIL), 12VDC (COIL), 140mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, LATCHED, 0.008A (COIL), 24VDC (COIL), 180mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, LATCHED, 0.031A (COIL), 4.5VDC (COIL), 140mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.093A (COIL), 3VDC (COIL), 280mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.056A (COIL), 5VDC (COIL), 280mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	Power/Signal Relay, POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.023A (COIL), 12VDC (COIL), 280mW (COIL), 1A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
body height	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm
Body length or diameter	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm
Maximum coil current (DC)	0.047 A	0.013 A	0.062 A	0.028 A	0.012 A	0.008 A	0.031 A	0.093 A	0.056 A	0.023 A
Coil operating voltage (DC)	2.25 V	18 V	3.38 V	3.75 V	9 V	18 V	3.38 V	2.25 V	3.75 V	9 V
Coil power	140 mW	300 mW	280 mW	140 mW	140 mW	180 mW	140 mW	280 mW	280 mW	280 mW
Coil release voltage (DC)	2.25 V	2.4 V	0.45 V	3.75 V	9 V	18 V	3.38 V	0.3 V	0.5 V	1.2 V
Coil resistance	64 Ω	1920 Ω	72.3 Ω	179 Ω	1029 Ω	3200 Ω	145 Ω	32.1 Ω	89.3 Ω	514 Ω
Maximum coil voltage (DC)	3 V	24 V	4.5 V	5 V	12 V	24 V	4.5 V	3 V	5 V	12 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC	1A@250VAC
Maximum contact current (AC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Maximum contact current (DC)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Contact (DC) maximum rated R load	1A@220VDC	1A@220VDC	1A@220VDC	1A@220VDC	1A@220VDC	1A@220VDC	1A@220VDC	1A@220VDC	1A@220VDC	1A@220VDC
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	220 V	220 V	220 V	220 V	220 V	220 V	220 V	220 V	220 V	220 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
operating hours	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm	15mm x 7.5mm x 9.65mm
Guideline	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL
Relay action	LATCHED	MOMENTARY	MOMENTARY	LATCHED	LATCHED	LATCHED	LATCHED	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
