FA7611M datasheet, PDF - EEWORLD Datasheet

FA7611M: DescriptionDual Switching Controller, Voltage-mode, 0.05A, 200kHz Switching Freq-Max, BIPolar, PDSO16, SOP-16; CategoryPower/power management The power supply circuit; File Size198KB，7 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric View All

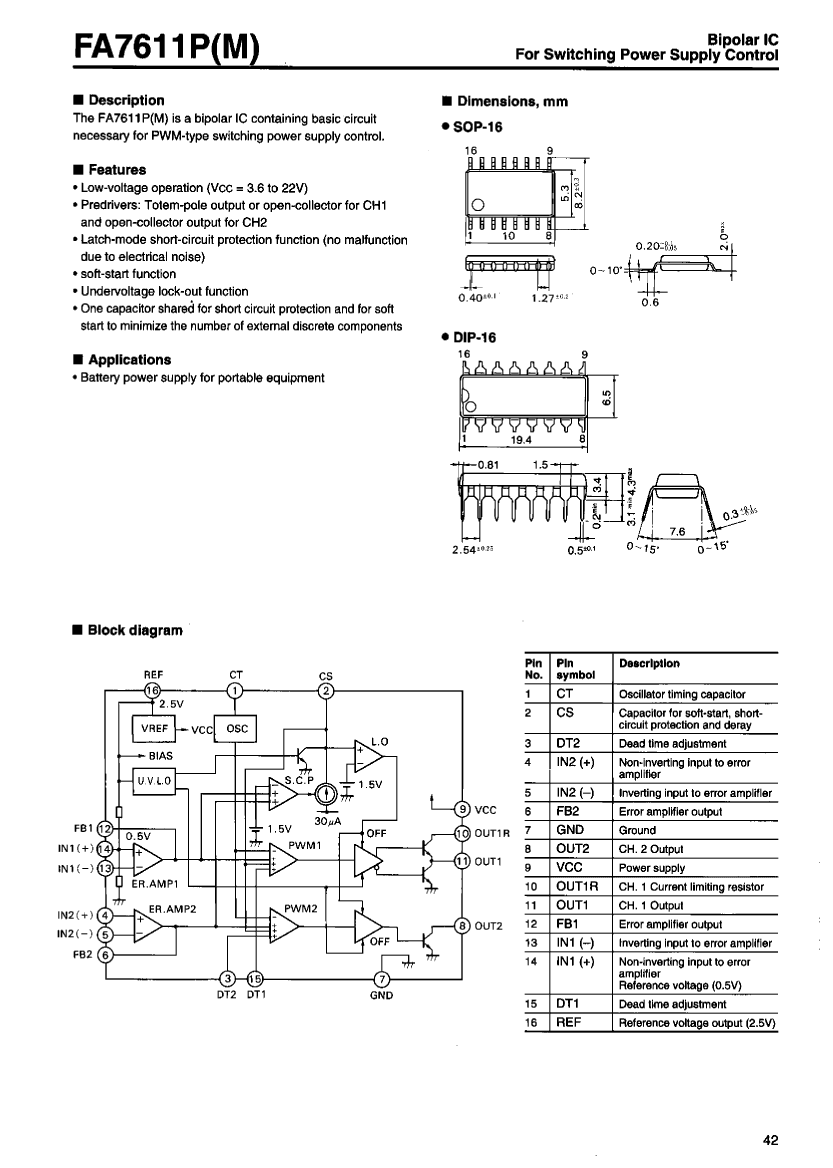

FA7611M Overview

Dual Switching Controller, Voltage-mode, 0.05A, 200kHz Switching Freq-Max, BIPolar, PDSO16, SOP-16

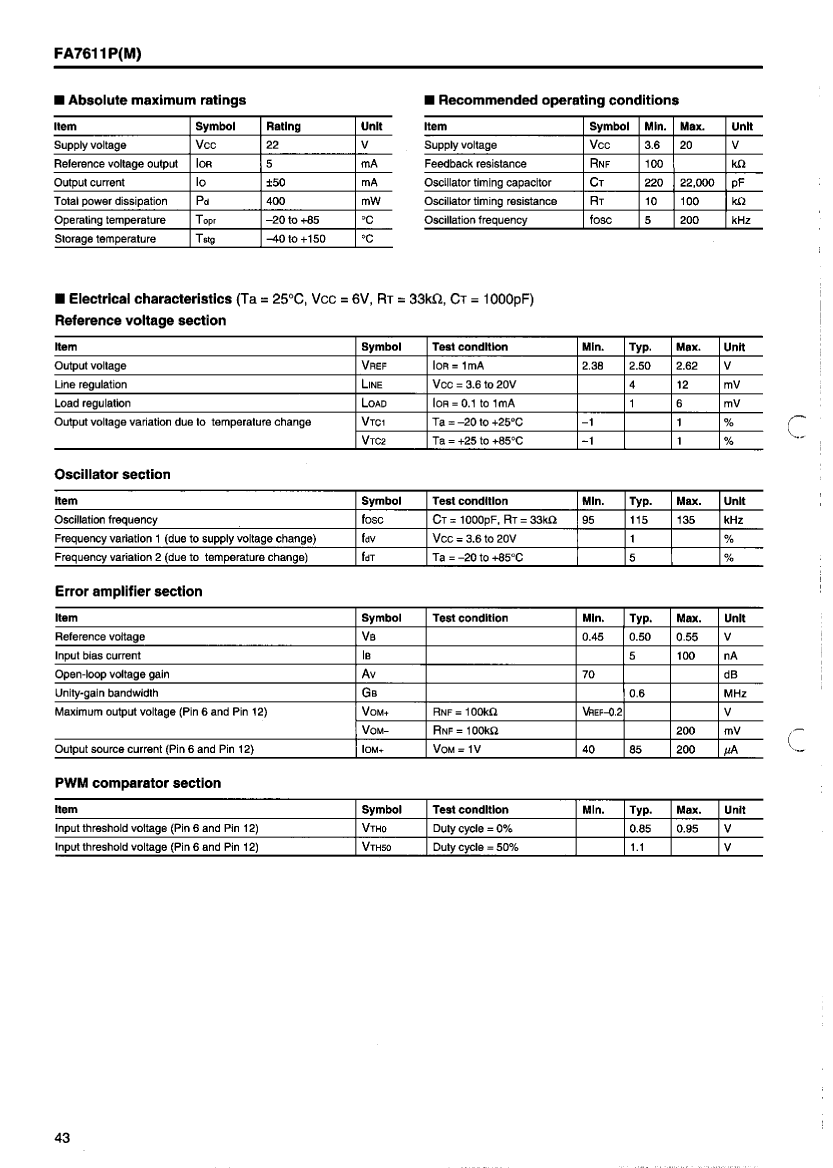

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DUAL SWITCHING CONTROLLER
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	20 V
Minimum input voltage	3.6 V
Nominal input voltage	6 V
JESD-30 code	R-PDSO-G16
length	10 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output current	0.05 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2 mm
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	200 kHz
technology	BIPOLAR
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm
