PCS2P2305NZ
3.3V 1:5 Clock Buffer
Features
One-Input to Five-Output Buffer/Driver
Buffers all frequencies from DC to 133.33MHz
Low power consumption for mobile applications
Less than 32mA at 66.6MHz with unloaded outputs
Input-Output delay: 6nS(max)
Output-output skew less than 250pS
8-pin SOIC Package
Supply Voltage: 3.3V ± 0.3V
Commercial and Industrial temperature range
Functional Description
PCS2P2305NZ is a low-cost high-speed buffer designed to
accept one clock input and distribute up to five clocks in
mobile PC systems and desktop PC systems. The device
operates at 3.3V and outputs can run up to 133.33MHz.
PCS2P2305NZ is designed for low EMI and power
optimization and consumes less than 32mA at 66.6MHz,
making it ideal for the low-power requirements of mobile
systems. It is available in an 8-pin SOIC Package over
Commercial and Industrial temperature range.

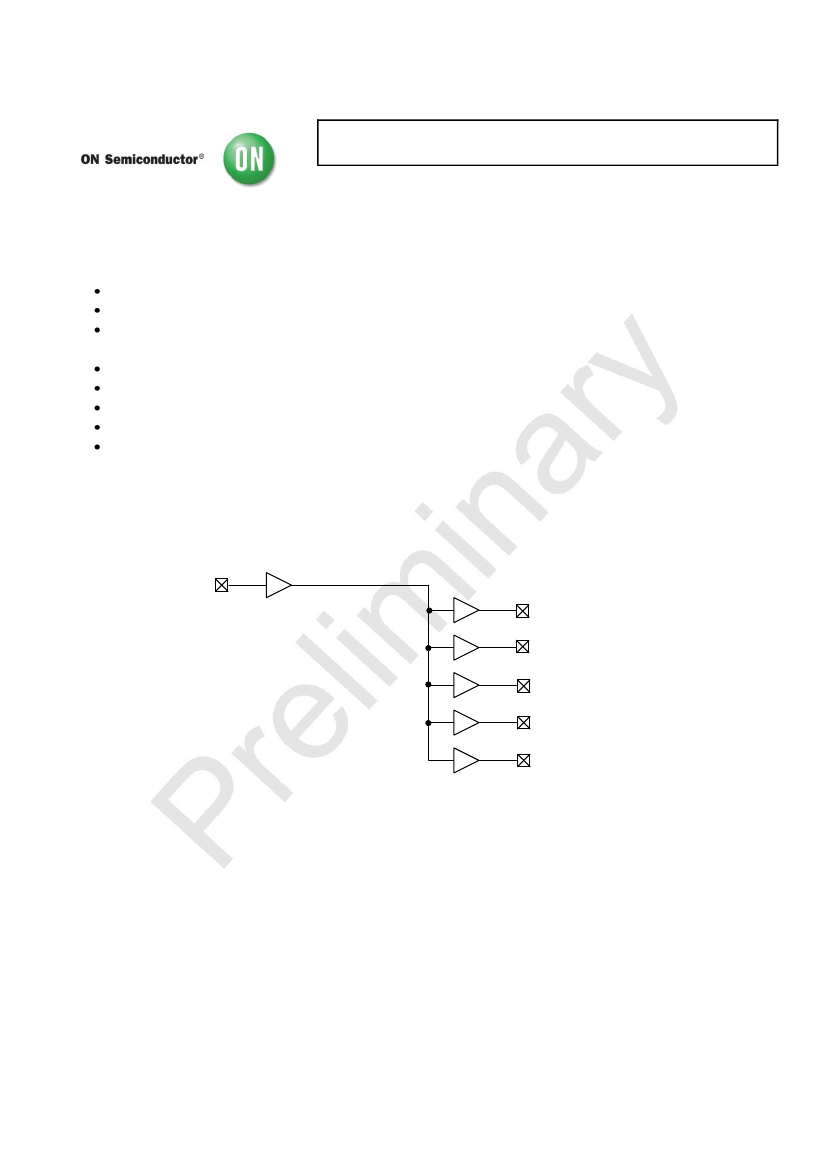

Block Diagram
BUF_IN
OUTPUT1
OUTPUT2
OUTPUT3
OUTPUT4
OUTPUT5
©2010 SCILLC. All rights reserved.
JANUARY 2010 – Rev. 1
Publication Order Number:
PCS2P2305/D
PCS2P2305NZ
Pin Configuration
BUF-IN
1
OUTPUT
1
2
OUTPUT2
3
GND
4
8
7
OUTPUT5
OUTPUT4
VDD
OUTPUT3
PCS2P2305NZ
6
5
Pin Description
Pin#
6
4
1
2, 3, 5, 7, 8
Pin Name
V
DD
GND
BUF_IN
OUTPUT [1:5]
Description
3.3V Digital Voltage Supply
Ground
Input Clock
Outputs
Absolute Maximum Ratings
Parameter
Supply Voltage to Ground Potential
DC Input Voltage (Except REF)
DC Input Voltage (REF)
Storage Temperature
Max. Soldering Temperature (10 sec)
Junction Temperature
Static Discharge Voltage
(As per JEDEC STD22- A114-B)
Min
-0.5
-0.5
-0.5
-65
Max
+4.6
V
DD
+ 0.5
7
+150
260
150
2000
Unit
V
V
V
°C
°C
°C
V
Note: These are stress ratings only and functional usage is not implied. Exposure to absolute maximum ratings for prolonged periods can
affect device reliability.
Rev. 1 | Page 2 of 8 | www.onsemi.com
PCS2P2305NZ
Operating Conditions
Parameter
V
DD
T
A
C
L
C
IN
BUF_IN,
OUTPUT
[1:5]
t
PU
Supply Voltage
Commercial Temp.
Industrial Temp.
Load Capacitance, Fout < 100MHz
Load Capacitance,100MHz < Fout < 133.33MHz
Input Capacitance
Operating Frequency
Power-up time for all V
DD
’s to reach minimum specified voltage (power
ramps must be monotonic)
DC
0.05
Description
Min
3.0
0
-40
Max
3.6
70
85
30
15
7
133.33
50
Unit
V
°C
°C
pF
pF
pF
MHz
mS
Electrical Characteristics for Commercial and Industrial Temperature Devices
Symbol
V
IL
V
IH
I
IL
I
IH
V
OL
V
OH
I
DD
Notes:
Parameter
Input LOW Voltage
1
1
Test Conditions
Min
2.2
Max
0.8
Unit
V
V
µA
µA
V
V
Input HIGH Voltage
Input LOW Current
Input HIGH Current
Output LOW Voltage
2
2
V
IN
= 0V
V
IN
= V
DD
I
OL
= 12mA
I
OH
= -12mA
Unloaded outputs at 66.66MHz
2.4
50.0
100.0
0.4
Output HIGH Voltage
Supply
Current
Commercial temp.
Industrial temp.
30
32
mA
1. BUF_IN input has a threshold voltage of V
DD
/2.
2. Parameter is guaranteed by design and characterization. It is not 100% tested in production.
Switching Characteristics for Commercial and Industrial Temperature Devices
Test Conditions
Symbol
Parameter
Min
t
3
t
4
t
D
Rise Time
Fall Time
2
2
1
Typ
1.5
1.5
Max
2
2
55
Unit
nS
nS
%
Measured between 0.8V and 2.0V
Measured between 2.0V and 0.8V
Measured at 1.4V (For an Input
Clock Duty Cycle 50%)
2
2
Duty Cycle = t
2
÷ t
1
45
50
t
5
Output to Output Skew
All outputs equally loaded
±250
pS
t
6
Propagation Delay,
BUF_IN Rising Edge to
2
OUTPUT Rising Edge
Measured at V
DD
/2
4
6
nS
Notes:
1. All parameters specified with loaded outputs.
2. Parameter is guaranteed by design and characterization. It is not 100% tested in production.
Rev. 1 | Page 3 of 8 | www.onsemi.com
PCS2P2305NZ

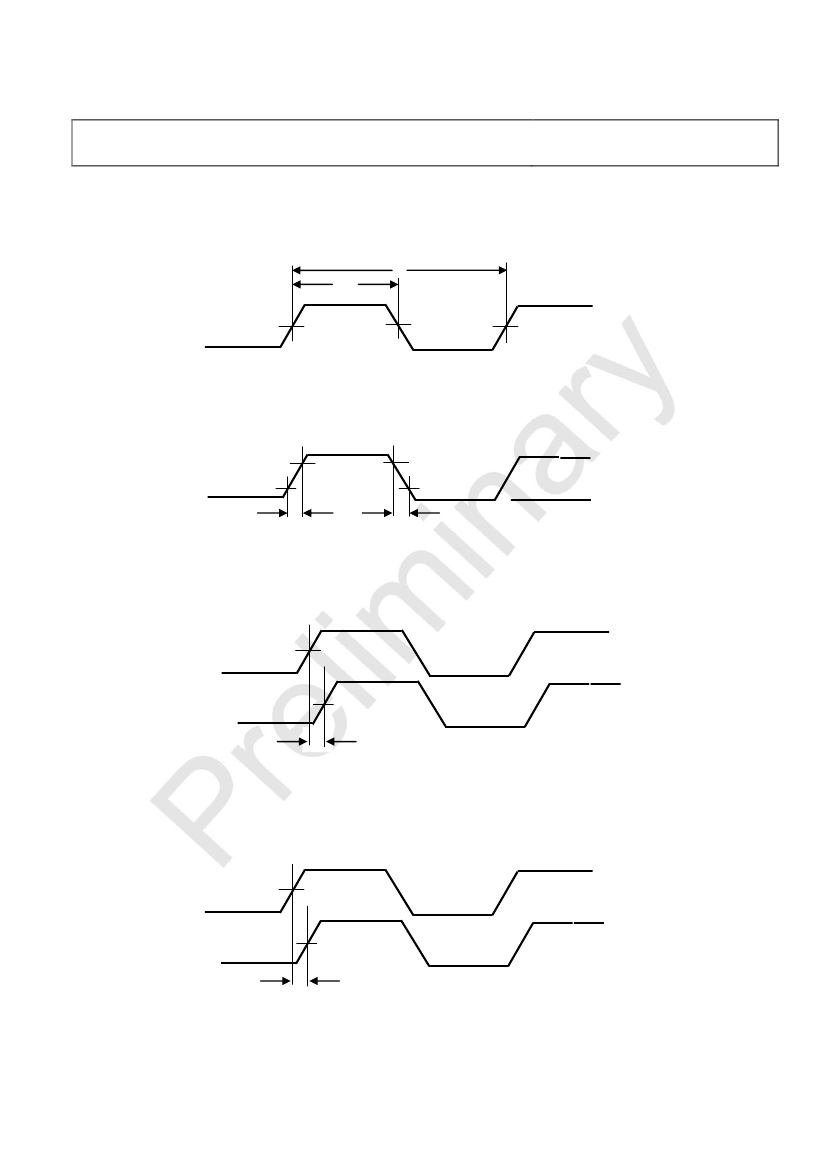

Switching Waveforms
Duty Cycle Timing
t
1
t
2
1.4V
OUTPUT
1.4V
1.4V
All Outputs Rise/Fall Time
2V
0.8V
2V
0.8V
VDD
OUTPUT
t
3
t
4
0V
Output-Output Skew
1.4V
OUTPUT
1.4V
OUTPUT
t5
Input-Output Propagation Delay
V
DD
/2
INPUT
V
DD
/2
OUTPUT
Rev. 1 | Page 4 of 8 | www.onsemi.com
PCS2P2305NZ

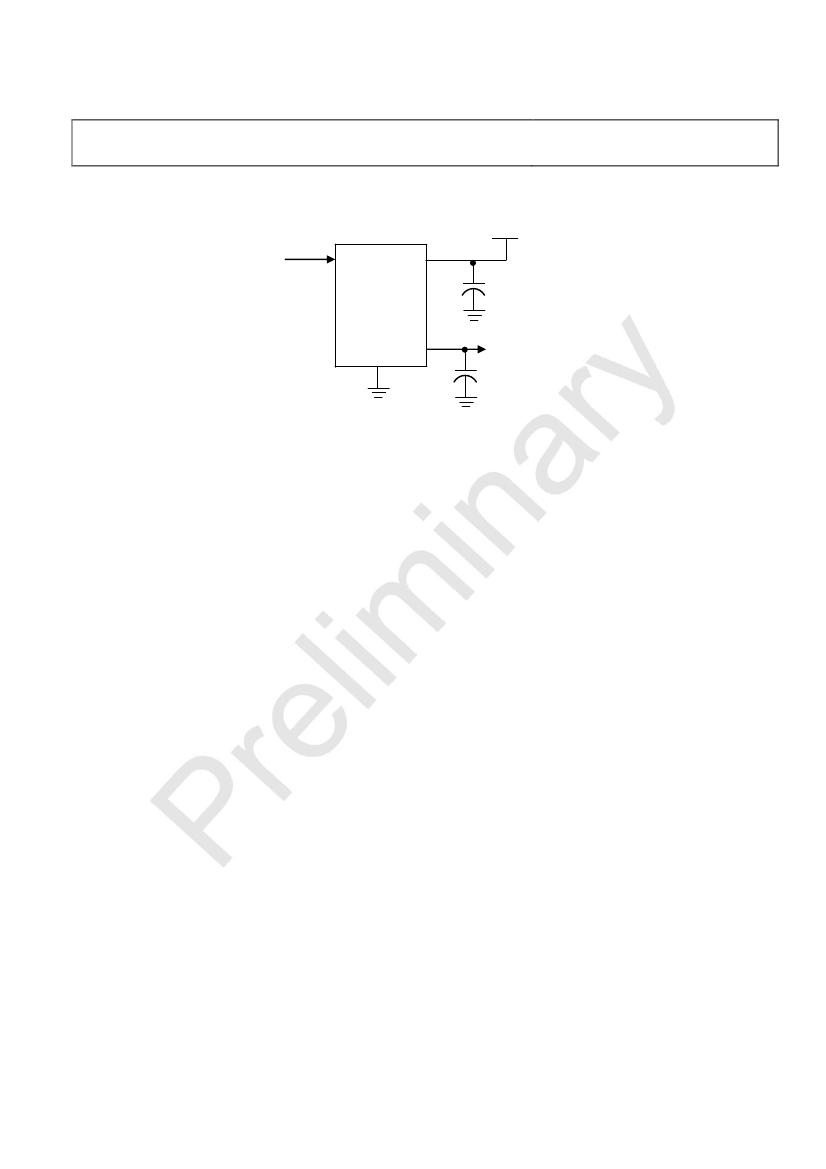

Test Circuit
+3.3V
BUF-IN
V
DD
0.1uF
PCS2P2305NZ
GND
OUTPUT
CL
Rev. 1 | Page 5 of 8 | www.onsemi.com
